Dimensions

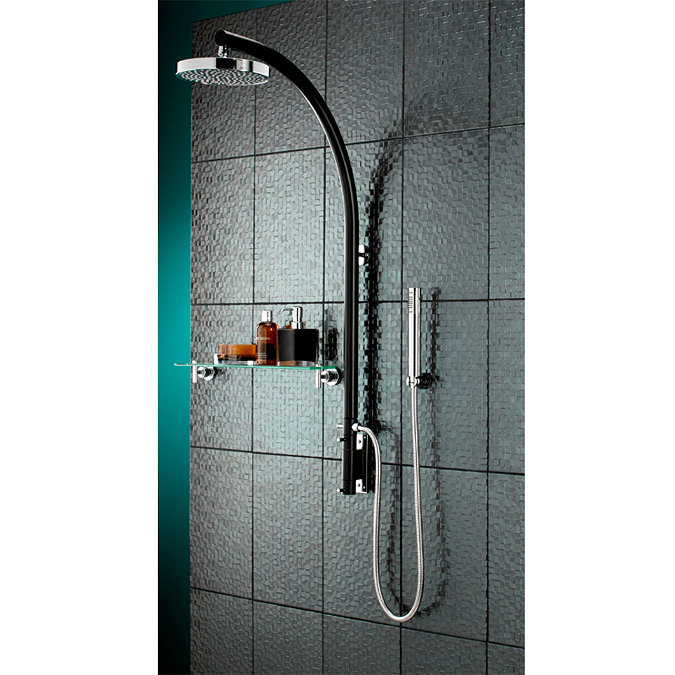

Bristan - Prism Inline Dual Control Shower Pole w/ Diverter & Kit - Black
Part No:PM-VSHXSPDIV-B
Discontinued
Product Information
Bristan - Prism Inline Dual Control Shower Pole w/ Diverter & Kit - Black
The Prism shower valve has a beautiful and new age modern design. Brass construction provides superior durability and conforms to BS EN 248 standards. This amazing valve trim includes lots of features and is suitable for all plumbing systems, an amazing addition to any bathroom.
Features
Additional Information
Guarantee: 5 years covering manufacturing faults
Flow Rates
1.0 Bar - (Shower Rose) 6.5 l/m (Handset) 9.4 l/m
1.5 Bar - (Shower Rose) 8.1 l/m (Handset) 12.1 l/m
2.0 Bar - (Shower Rose) 9.5 l/m (Handset) 14.0 l/m
3.0 Bar - (Shower Rose) 11.2 l/m (Handset) 16.7 l/m
The Prism shower valve has a beautiful and new age modern design. Brass construction provides superior durability and conforms to BS EN 248 standards. This amazing valve trim includes lots of features and is suitable for all plumbing systems, an amazing addition to any bathroom.
Features
- Product Code: PM VSHXSPDIV B
- Finish: Black
- Product Type: Contemporary
- Construction: Body is of brass construction
- Valve Type: ¾” inline ceramic disc, ¼ turn
- Cartridge Type: Thermostatic cartridge
- Supply: Suitable for all plumbing systems, preferably balanced
- Inlet Connections: 15mm push-fit integrated into backplate
- Outlet Connections: ½” BSP
- Working Pressures: Min 1.0bar, Max 5.0bar
- Dimensions for Fitting: 45mm inlet centres
Additional Information
- Dual control – flow and temperature are controlled separately, giving accurate control of both
- Thermostatic cartridge maintains showering temperature to +/- 1oC by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature.
- Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of scalding.
- Factory set to a maximum of 38oC to eliminate the ability to select an unsafe temperature - this can be manually over-ridden up to 46 oC to suit user preference.
- Utilises unique fast fit system
- Single function swivel overhead shower rose and handset with easy to clean rub clean nozzles.
- Chrome plated to BSN 248
Guarantee: 5 years covering manufacturing faults
Flow Rates
1.0 Bar - (Shower Rose) 6.5 l/m (Handset) 9.4 l/m
1.5 Bar - (Shower Rose) 8.1 l/m (Handset) 12.1 l/m
2.0 Bar - (Shower Rose) 9.5 l/m (Handset) 14.0 l/m
3.0 Bar - (Shower Rose) 11.2 l/m (Handset) 16.7 l/m
