Pablo Concealed Thermostatic Valve with Fixed Shower Head & 6 Body Jets

Pablo Concealed Thermostatic Valve with Fixed Shower Head and 6 Body Jets (Polished Chrome)

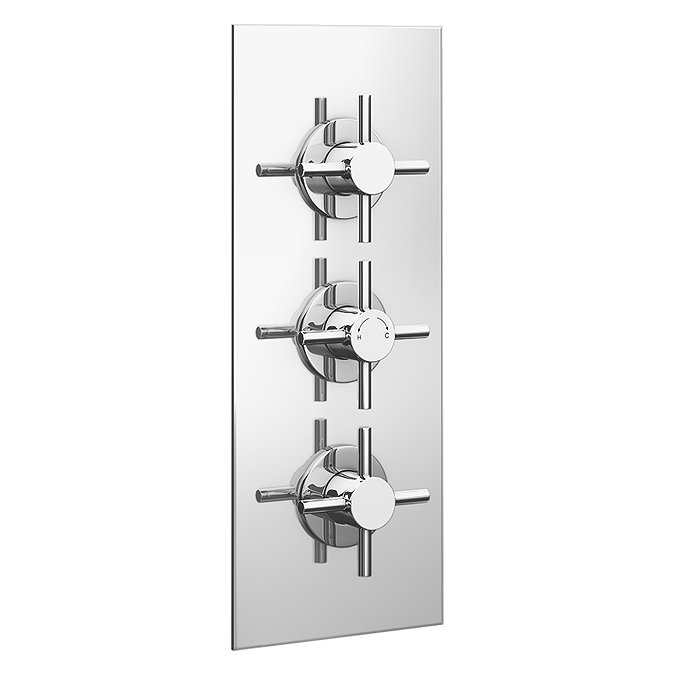

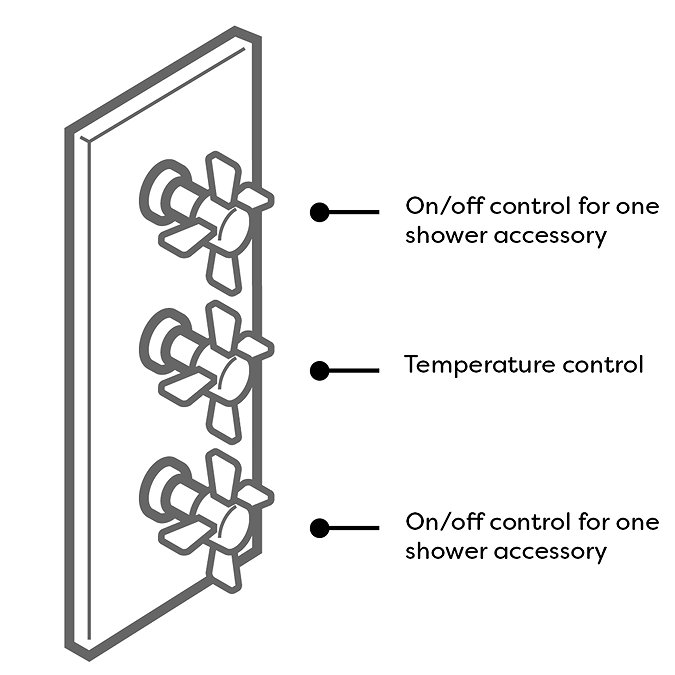

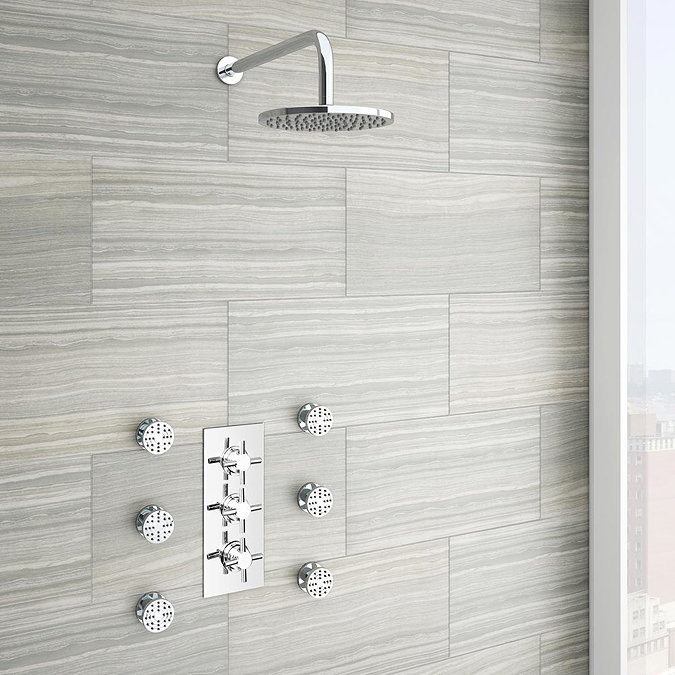

The Pablo concealed shower package includes a thermostatically controlled valve with a diverter, a wall-mounted fixed shower head, and six slim body jets. These components create a shower that can provide a massaging effect. The shower valve allows for thermostatic showering through two easy-to-operate controls for temperature and flow. It can divert between two shower accessories: the fixed head and the body jets. Both the shower head and body jets feature rub-clean nozzles.

Shower Valve Details:

• High-Quality Design
• Type: Concealed Valve
• Finish: Polished Chrome

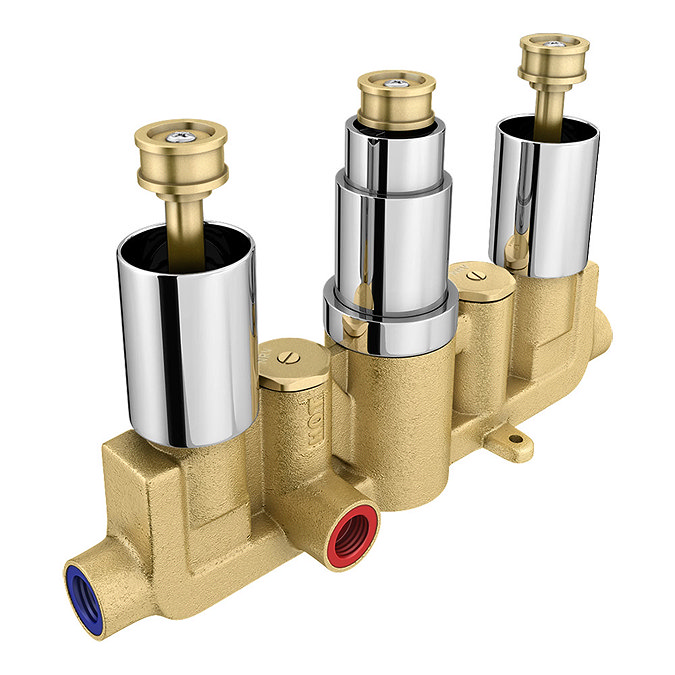

• Material: Brass Internals
• Mounting: Wall-mounted
• Thermostatically controlled
• Valve Handles: Crosshead
• Rectangular Backplate
• Outlets: 2
• Style: Modern
• On/Off Handle: Turns 90 degrees
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar

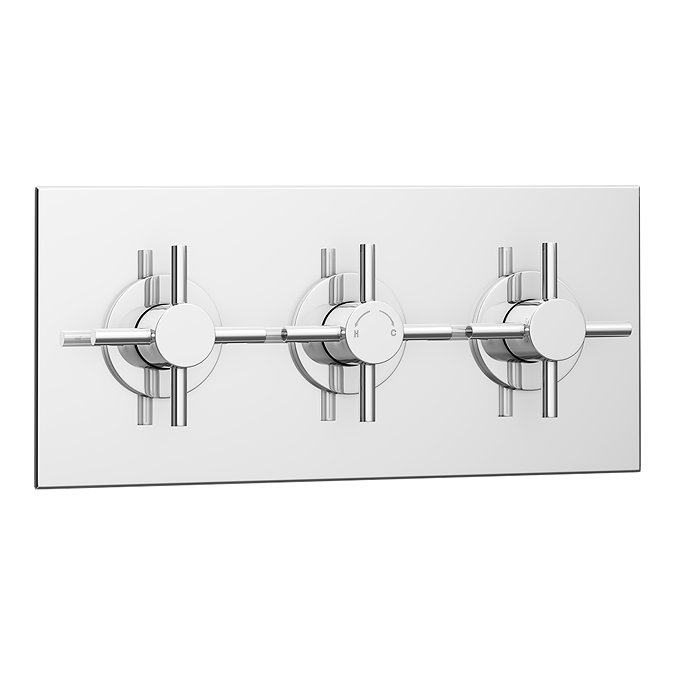

• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature: 55 to 85 Degrees

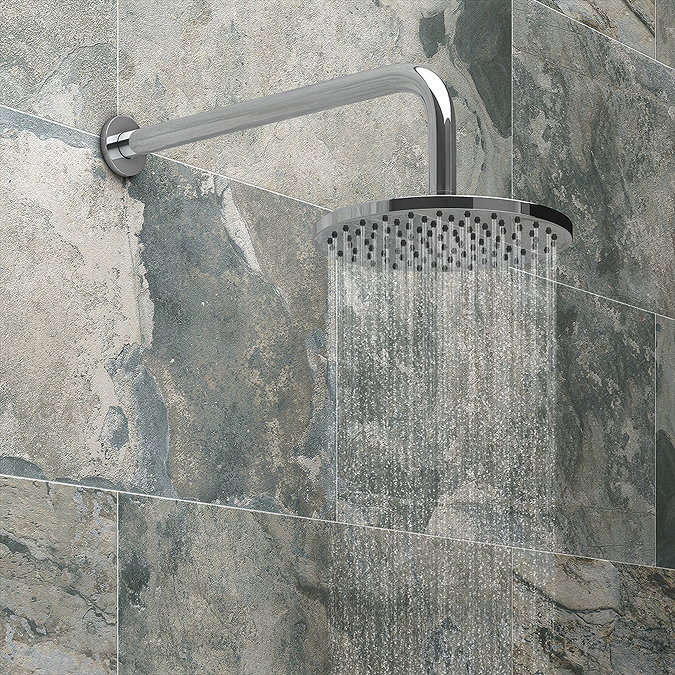

Shower Head & Arm Details:

• Shower head dimensions: 200mm diameter, Shower arm length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Water Pressure: 0.5 bar min to 3 bar max
• Supplied with a swivel joint and a wall-mounted round arm.
• The shower head is chrome-plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

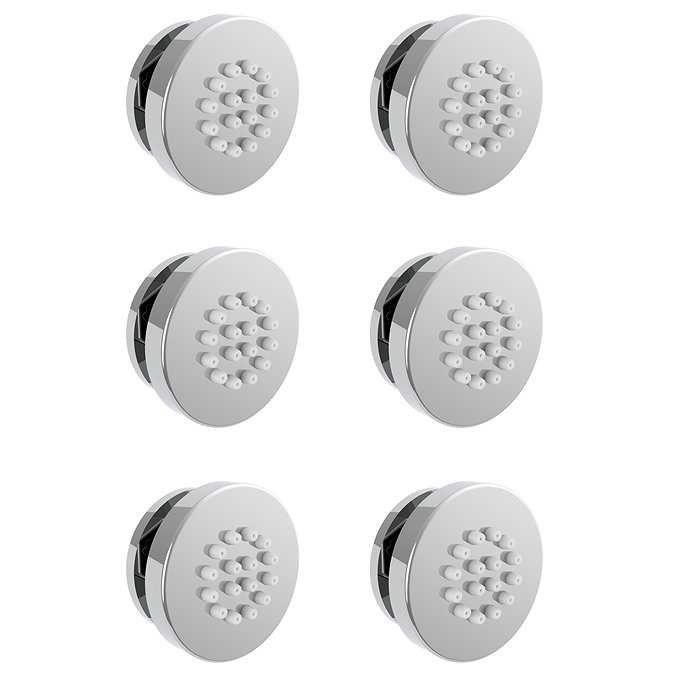

Body Jet Details:

• Brass 1/2 inch BSP thread
• Colour/Finishes: Polished Chrome
• Material: Brass
• Product Type: Slim Round Body Jet
• Supplied with a swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away



Guarantee:

5 Year (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)
Shower head and arm are guaranteed for 2 years.

All measurements are approximate. Images shown are for illustration purposes only.

Package Includes:

(1) Pablo Triple Crosshead Concealed Thermostatic Shower Valve - Chrome
(1) 200mm Round Head
(1) Round Shower Arm
(6) Cruze Body Jet - 6 x Slim Round Jets

Gravity Fed Systems If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
