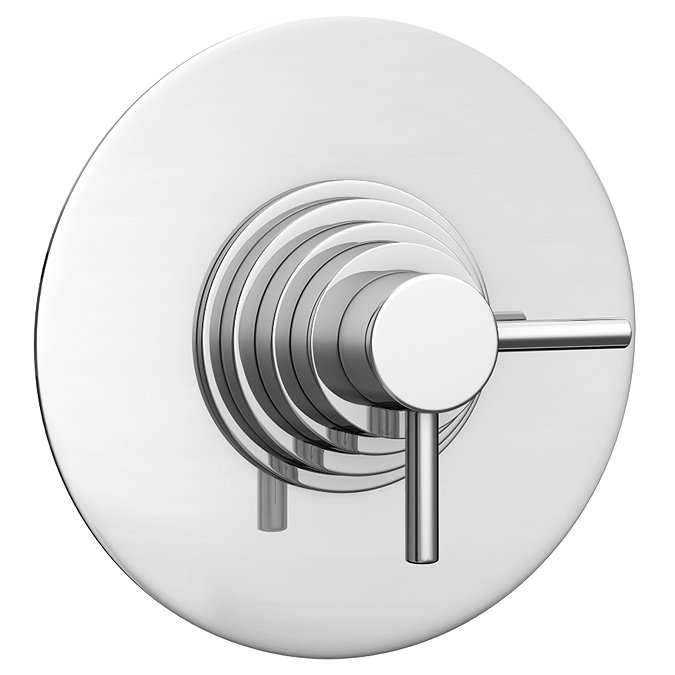

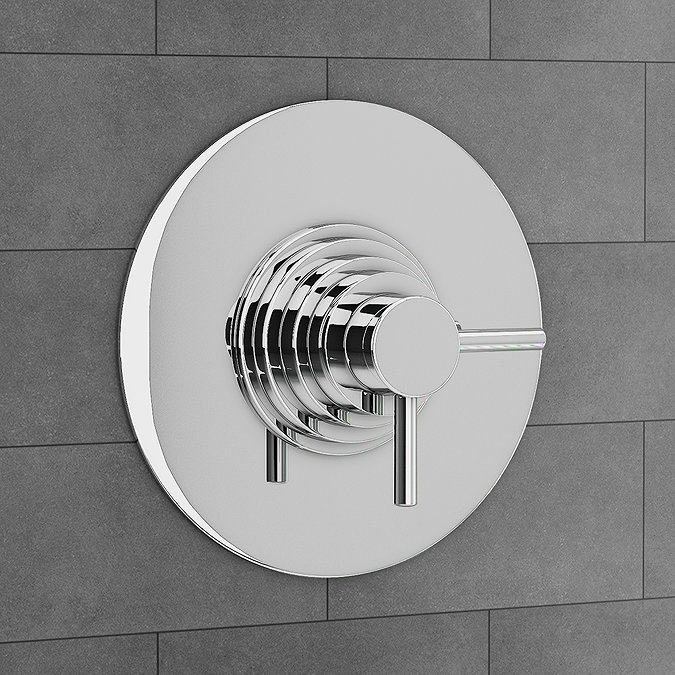

Cruze Modern Round Concealed Dual Thermostatic Shower Valve

Cruze Dual Concealed or Exposed Thermostatic Shower Valve with Round Back Plate - Chrome

The minimalist Cruze concealed thermostatic shower valve with round back plate offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection.

To be used with a fixed head or slide rail kit, this valve has the added safety benefit of a built in anti-scald device should the cold water supply fail. The Cruze dual concealed thermostatic shower valve adds a touch of sophistication and style in any bathroom.

*Valve can be installed either concealed or exposed.

Product Details

• Diameter: 200mm
• Type: Dual Concealed Shower Valve
• Handle Type: Lever
• Style: Modern
• Colour/Finish: Chrome
• Material: Solid brass
• Operates a single shower accessory: 1 Outlet
• Wall Mounted
• Round Back Plate
• Smooth Operation with Quality Components
• Water Pressure: 0.5 bar to 5 bar
• Anti-scald technology
• 150mm between pipe inlet centres
• Inlets: 15mm
• Outlets: 1/2" BSP
• Suitable for modern pressurised plumbing systems.
• Flow rate of twin concealed valve:
• 0.5 bar-8.5L/M
• 1 bar-12.5L/M
• 2 bar-16.5L/M
• 3 bar-19.5L/M
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
