Roper Rhodes Event Round Triple Function Shower System with Bath Filler
Part No:SVSET22
Discontinued
Product Information
Roper Rhodes Event Round Triple Function Shower System with Bath Filler - SVSET22
Roper Rhodes collection of concealed all-in-one shower systems offer a luxurious showering experience combined with good looks. The Event Round Triple Function Shower System with Bath Filler consists of a three function thermostatic diverter valve, round 220mm shower head, round smartflow bath filler waste, adjustable riser rail, single function handset and shower hose and wall elbow. Comes TMV2 approved and is suitable for all plumbing systems with a minimum pressure of 1.0 bar and above.
Product Details
Flow Rates
0.1 Bar - (Valve) 6.11 l/m (Fixed Head) n/a l/m (Bath Filler) 9.13 l/m (Handset) 2.1 l/m
0.2 Bar - (Valve) 8.34 l/m (Fixed Head) n/a l/m (Bath Filler) 12.21 l/m (Handset) 4.6 l/m
0.3 Bar - (Valve) 9.9 l/m (Fixed Head) 7.5 l/m (Bath Filler) 15.15 l/m (Handset) 6.5 l/m
0.4 Bar - (Valve) 11.44 l/m (Fixed Head) 9.2 l/m (Bath Filler) 17.52 l/m (Handset) 7.5 l/m
0.5 Bar - (Valve) 12.58 l/m (Fixed Head) 10.6 l/m (Bath Filler) 19.48 l/m (Handset) 8.9 l/m
1.0 Bar - (Valve) 17.58 l/m (Fixed Head) 15.8 l/m (Bath Filler) 27.37 l/m (Handset) 13.4 l/m
2.0 Bar - (Valve) 24.09 l/m (Fixed Head) 23.2 l/m (Bath Filler) 38.85 l/m (Handset) 20 l/m
3.0 Bar - (Valve) 28.45 l/m (Fixed Head) 28.4 l/m (Bath Filler) 47.45 l/m (Handset) 25 l/m
4.0 Bar - (Valve) 29.53 l/m (Fixed Head) 32.2 l/m (Bath Filler) 55.41 l/m (Handset) 28 l/m
Roper Rhodes collection of concealed all-in-one shower systems offer a luxurious showering experience combined with good looks. The Event Round Triple Function Shower System with Bath Filler consists of a three function thermostatic diverter valve, round 220mm shower head, round smartflow bath filler waste, adjustable riser rail, single function handset and shower hose and wall elbow. Comes TMV2 approved and is suitable for all plumbing systems with a minimum pressure of 1.0 bar and above.
Product Details
- Finish: Chrome

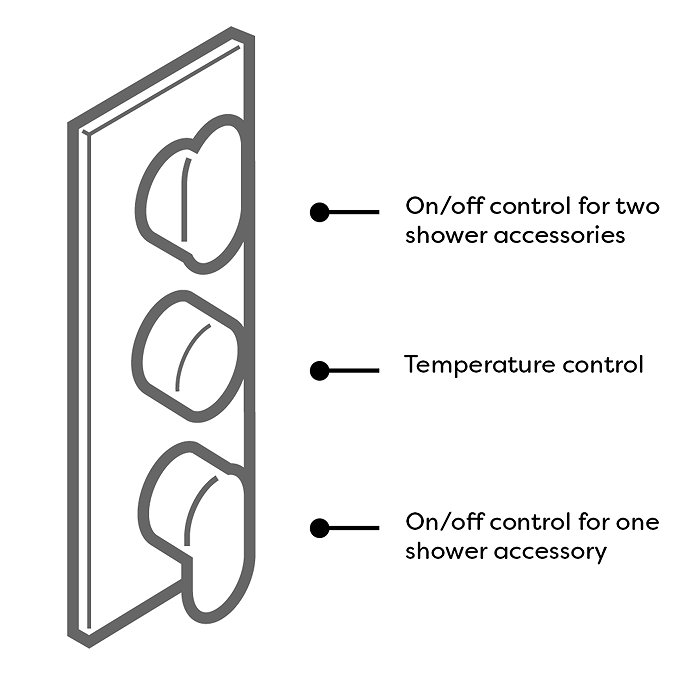

- Triple function thermostatic diverter valve
- 460mm length adjustable fixed arm
- 220mm single function shower head
- Wave adjustable riser rail

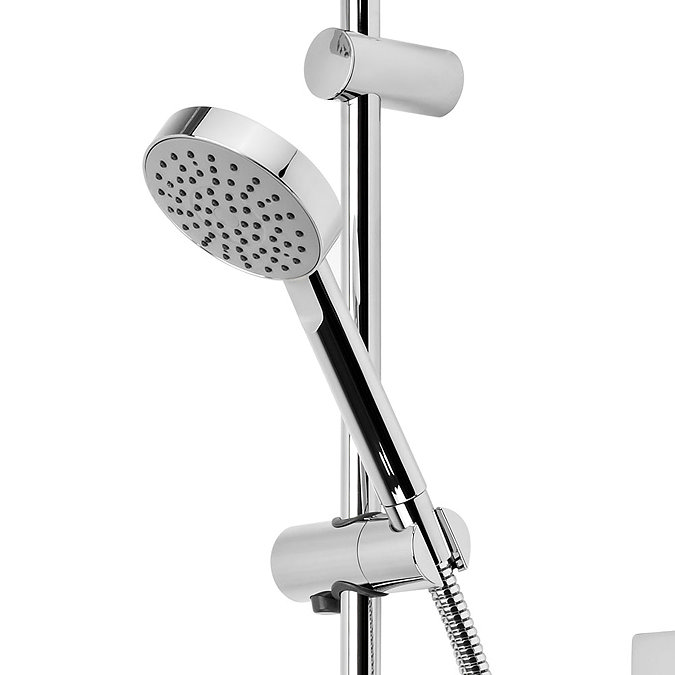

- Single function shower handset

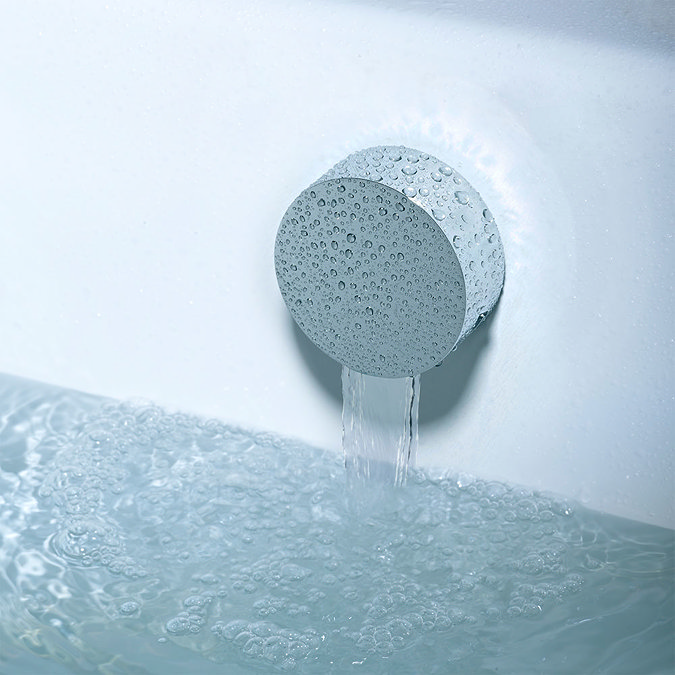

- Smartflow bath filler
- Shower hose & wall elbow
- Suitable for all plumbing systems
- TMV2 approved
- Easy to use separate flow and temperature control
- Minimum pressure of 1.0 bar
Flow Rates
0.1 Bar - (Valve) 6.11 l/m (Fixed Head) n/a l/m (Bath Filler) 9.13 l/m (Handset) 2.1 l/m
0.2 Bar - (Valve) 8.34 l/m (Fixed Head) n/a l/m (Bath Filler) 12.21 l/m (Handset) 4.6 l/m
0.3 Bar - (Valve) 9.9 l/m (Fixed Head) 7.5 l/m (Bath Filler) 15.15 l/m (Handset) 6.5 l/m
0.4 Bar - (Valve) 11.44 l/m (Fixed Head) 9.2 l/m (Bath Filler) 17.52 l/m (Handset) 7.5 l/m
0.5 Bar - (Valve) 12.58 l/m (Fixed Head) 10.6 l/m (Bath Filler) 19.48 l/m (Handset) 8.9 l/m
1.0 Bar - (Valve) 17.58 l/m (Fixed Head) 15.8 l/m (Bath Filler) 27.37 l/m (Handset) 13.4 l/m
2.0 Bar - (Valve) 24.09 l/m (Fixed Head) 23.2 l/m (Bath Filler) 38.85 l/m (Handset) 20 l/m
3.0 Bar - (Valve) 28.45 l/m (Fixed Head) 28.4 l/m (Bath Filler) 47.45 l/m (Handset) 25 l/m
4.0 Bar - (Valve) 29.53 l/m (Fixed Head) 32.2 l/m (Bath Filler) 55.41 l/m (Handset) 28 l/m
