Milan Square Concealed Triple Shower Valve with Fixed Head & 4 Body Jets - Chrome

Milan Square Concealed Thermostatic Triple Shower Valve with Square Fixed Head & 4 Body Jets Chrome

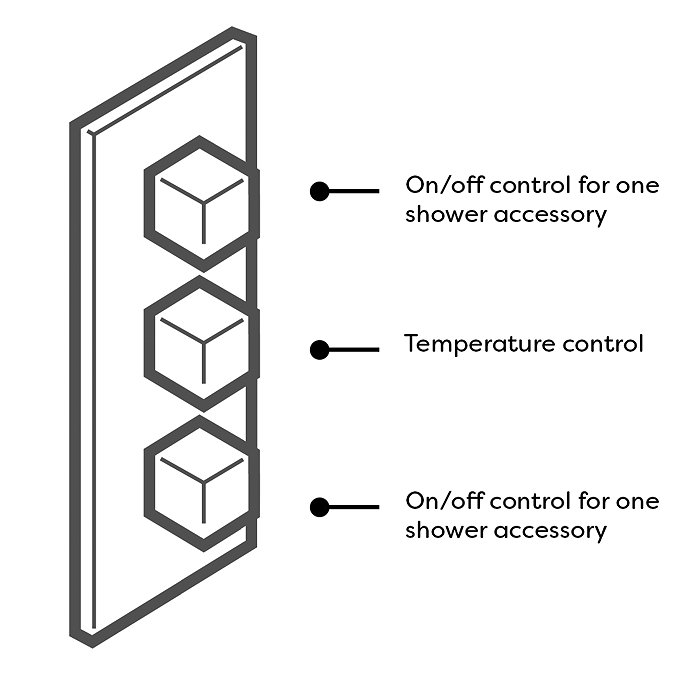

The Milan range brings substantial elegance to the modern bathroom. The triple shower valve enables you to select body jets for a quick freshen up or for a real drenching. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets.

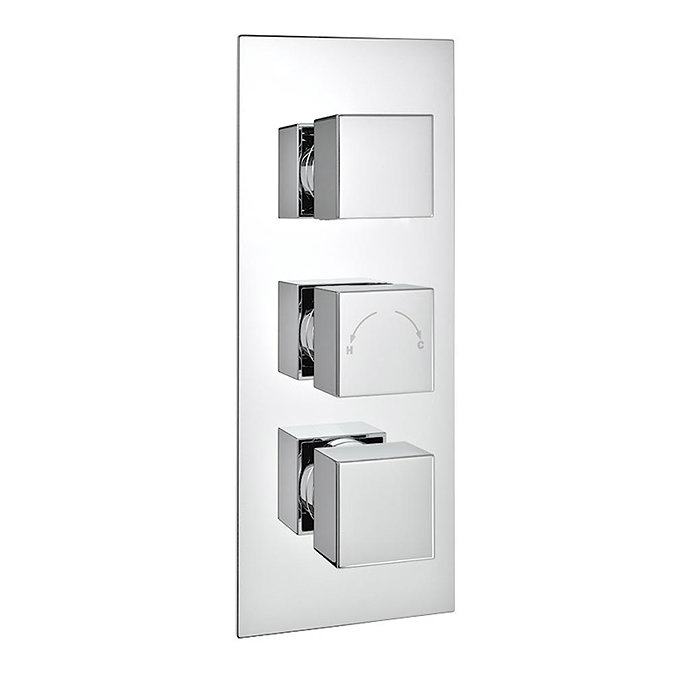

Shower Valve Details

• Width: 120mm
• Depth: 126mm
• Height: 280mm
• High Quality Design
• Finish: Polished Chrome

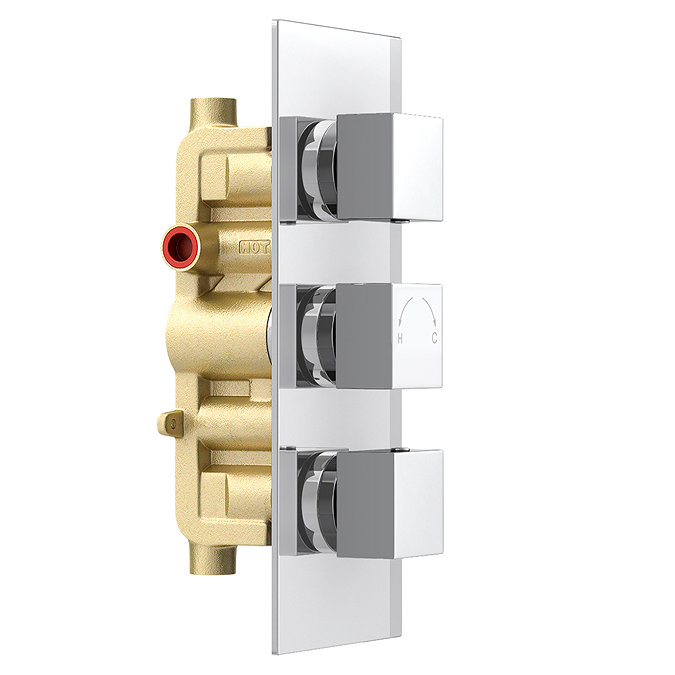

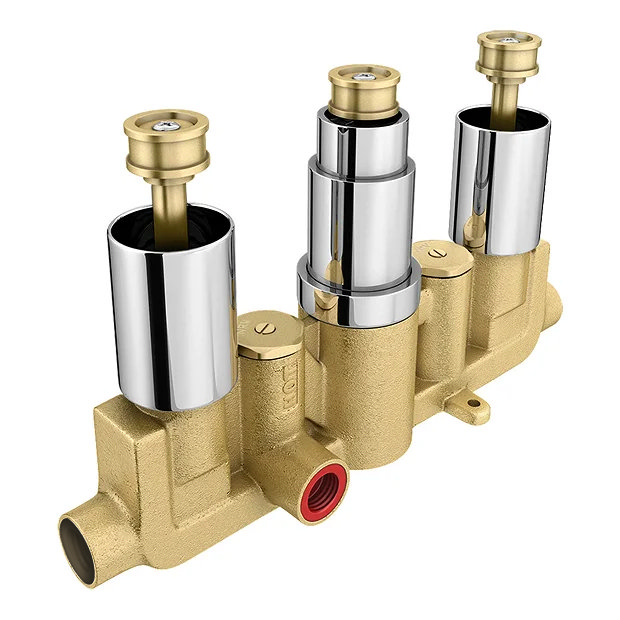

• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Backplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.

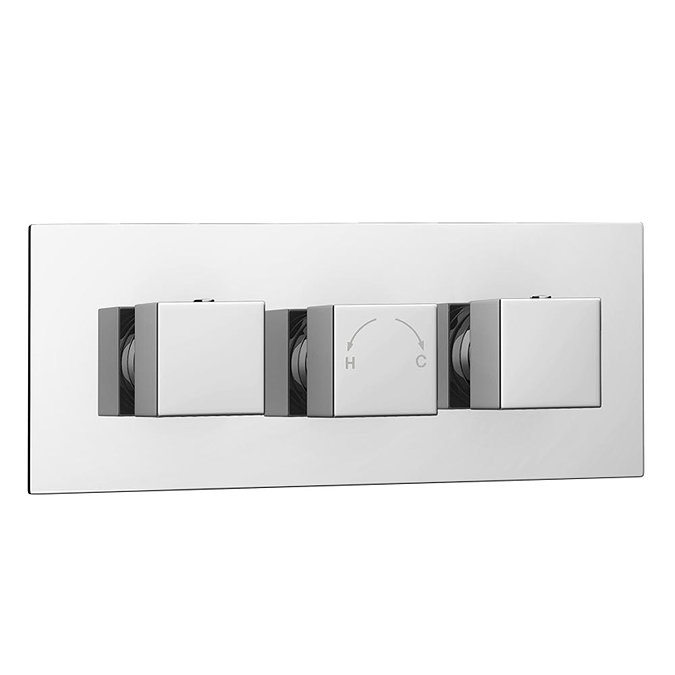

• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• The shower valve will not work efficiently on a gravity fed tank system unless a correct booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump

Fixed Square Shower Head with Wall Mounted Arm Details

• Shower head dimensions: 200 x 200mm
• Shower arm length: 354mm
• Style: Modern
• Shape: Square
• Colour/Finish: Chrome
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Please note: Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

Body Jet Details

• Overall Size: D60 x W50 x H50mm approx.
• Shroud: H50 x W50mm
• Brass 1/2 inch BSP thread: 25mm long
• 16 rubber nozzles
• Colour/Finishes: Polished Chrome
• Material: Brass
• Product Type: Slim Square Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

Pictures for illustrative purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

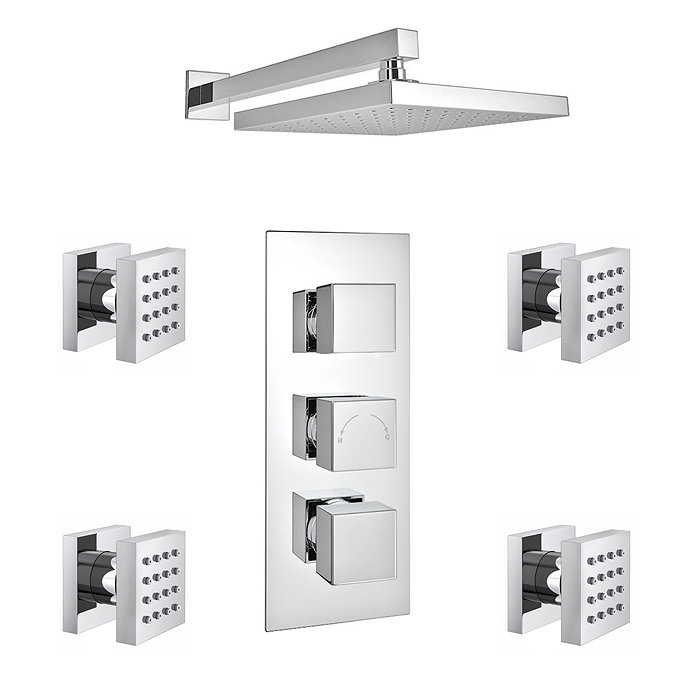

Comprises

(1) 200 x 200mm Square Head - Chrome
(1) Square Shower Arm - Chrome
(1) Triple Concealed Thermostatic Shower Valve - Chrome
(4) Square Body Jets - Chrome

Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
