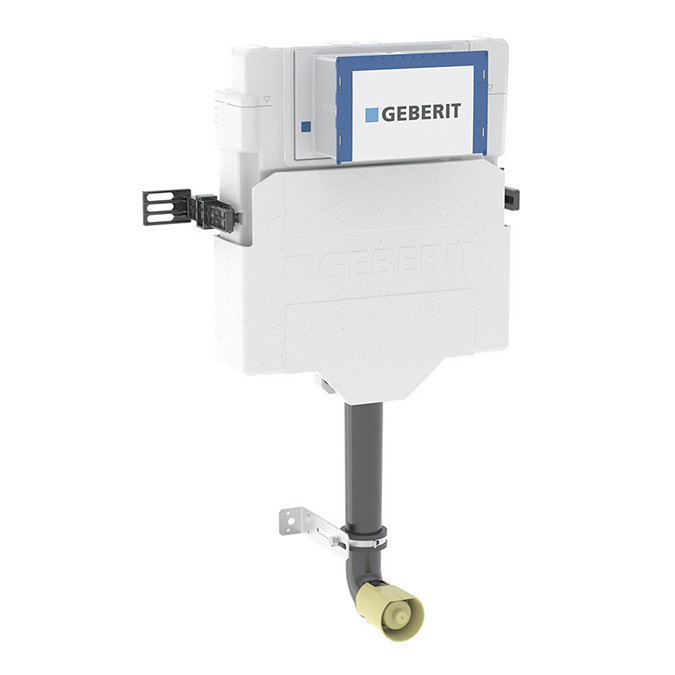

Geberit - UP320 Concealed Dual Flush Cistern

109.309.00.5 Geberit Sigma concealed cistern 12 cm, 6 / 3 litres

Geberit concealed cisterns are the classics of modern bathroom installations and have been installed millions of times around the world for more than 50 years.

They are known for their reliability, as every cistern is leak-tested before it is delivered. The 25-year guaranteed spare parts availability provides long-term security.

This Cistern is compatible with over 120 Geberit Sigma Flush Plate finishes from the ranges below:

Dual Flush Plate Compatibility – Sigma01, Sigma20, Sigma21, Sigma30, Sigma50, Sigma70 & Sigma80

Single Flush Plate Compatibility - Sigma10 & Sigma30

Geberit products are tested together to comply with EN997 & EN14055 25-year warranty on spare parts

Application Purposes:

• For drywall construction
• For installation in part or room-height prewall installations
• For installation in room-height installation walls

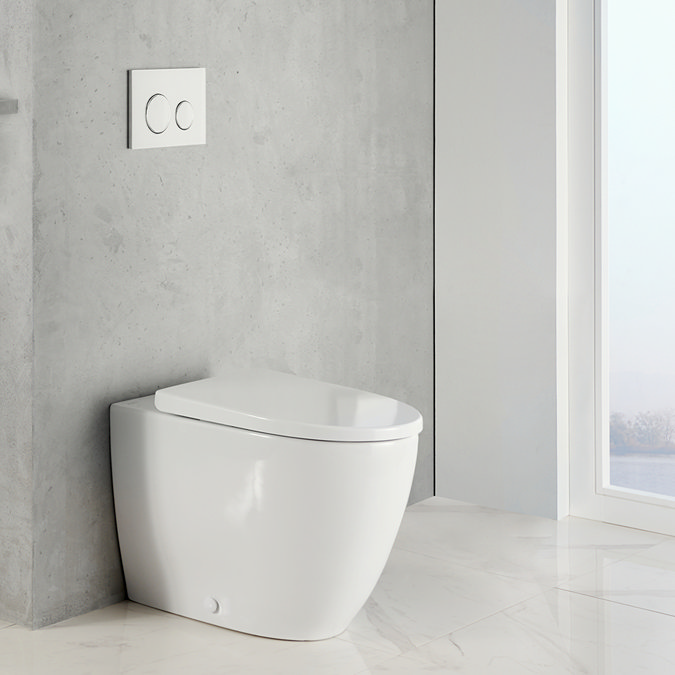

• For floor-standing WCs

Characteristics:

• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Flush bend fitted
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length

Technical Data:

• Flow pressure 0.1-10 bar
• Maximum operating temperature, water 25°C
• Flush volume, factory setting 5.8 and 3l
• Flush volume small, adjustment range 2-4l

What’s Included:

• Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
• Protection box for service opening
• Flush bend 90°
• Fastening for flush bend
• Protection plug
• 2 slotted flat irons
• 2 fixing brackets
• Fastening material
• Flush bend extension, ø 45mm
