Milan Triple Outlet Shower Pack with Head, 4 Body Jets + Slider Rail Chrome

Milan Modern Square Triple Valve with Diverter, Fixed Square Shower Head, 4 Square Body Jets + Rectangular Slide Rail Kit

The Modern Mialn Square 3 Outlet Shower Package is a high-end, versatile shower system designed for modern bathrooms. It offers a triple valve that allows you to choose between body jets, a fixed shower head, or a shower handset. The valve is compatible with all types of plumbing installations and includes a built-in anti-scald device for safety. It can operate two shower accessories either separately or simultaneously, and divert to a third option. The package includes a shower head, handset, 4 body jets, and a thermostatic shower valve. The design is stylish and sophisticated, suitable for any contemporary bathroom, and each component is manufactured to the highest standards.

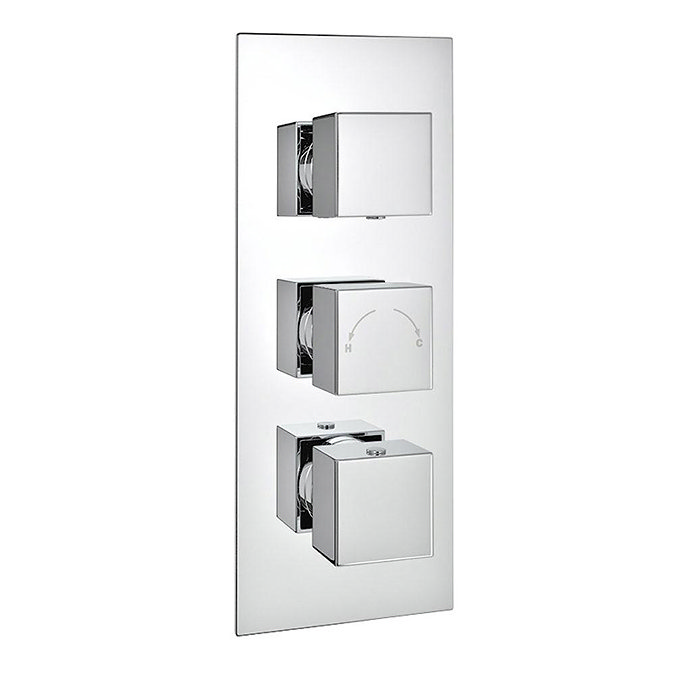

Shower Valve with Diverter Details

• Height: 280mm
• Width: 120mm
• Depth: 126mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular backplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two outlets separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Can be fitted vertically or horizontally
• Pipe Size: 15mm (1/2" BSP)

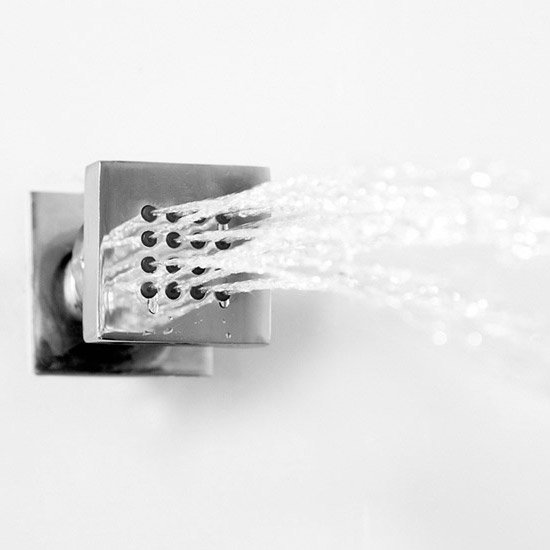

Square Body Jet Details

• Require high flow rates when used in conjunctions with an overhead shower.
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass body
• Easy Clean Nozzles to Prevent Lime Scale Build-Up
• Water Pressure - 2.0 bar pressure minimum

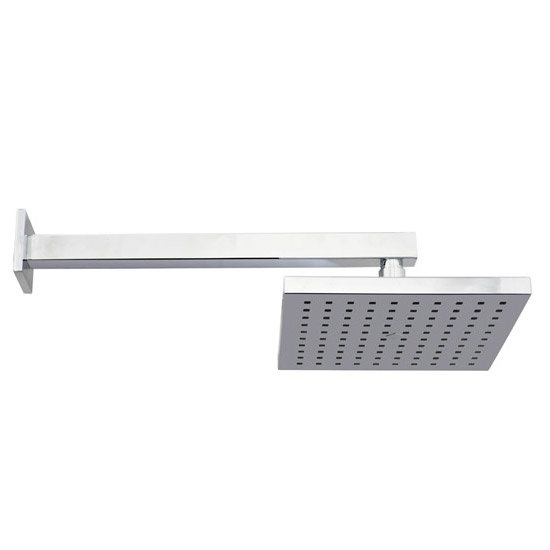

Square Shower Head with Wall Mounted Arm Details

• Shower head dimensions: 200 x 200mm
• Shower arm length: 354mm
• Style: Modern
• Colour/Finish: Chrome
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

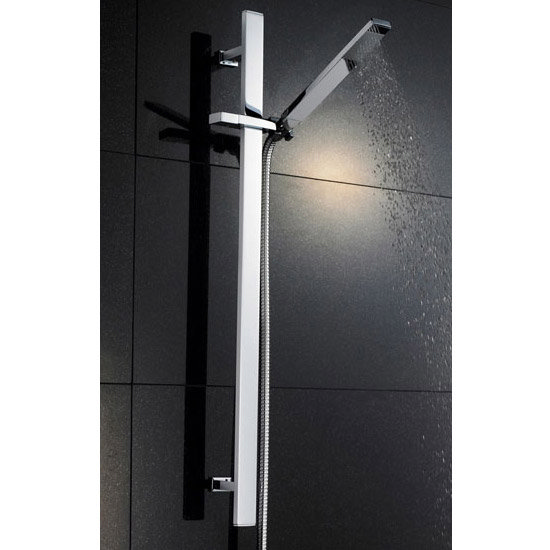

Rectangular Slide Rail Kit Details

• Height :  700mm
• Slider rail: L700 x W30 x D10mm
• Handset: L220 x W30 x D10mm
• Minimalist rectangular slider rail, with a matching slim handset
• High Quality Design
• Colour/Finish: Polished Chrome
• Shower head acrylic chrome plated
• Brass Internals
• We recommend a minimum pressure of 0.1 bar for best performance
• Certain parts are chrome plated plastic, not metal.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

All measurements are approximate

Product images are for illustrative purposes only and may differ from the actual product.

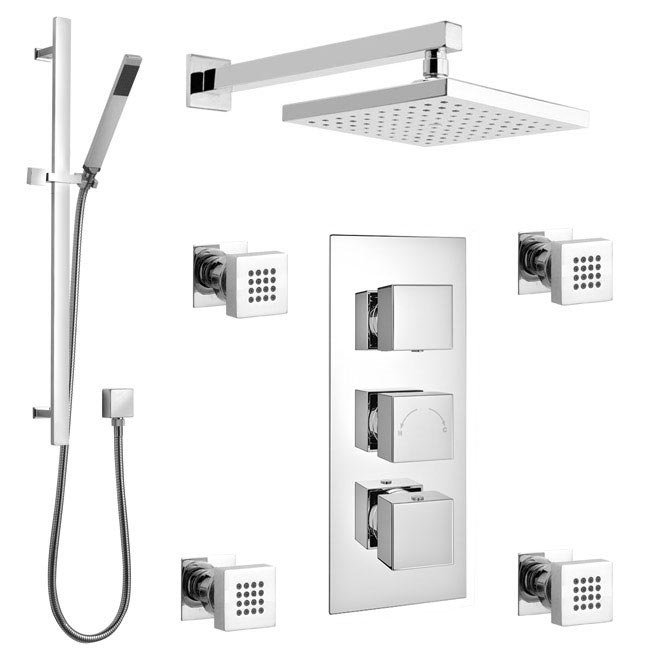

Comprises

(1) Modern Square Triple Concealed Thermostatic Shower Valve with Diverter
(1) 200 x 200mm Fixed Square Shower Head with Wall Mounted Arm
(4) Square Body Jets
(1) Rectangular Slide Rail Kit

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
