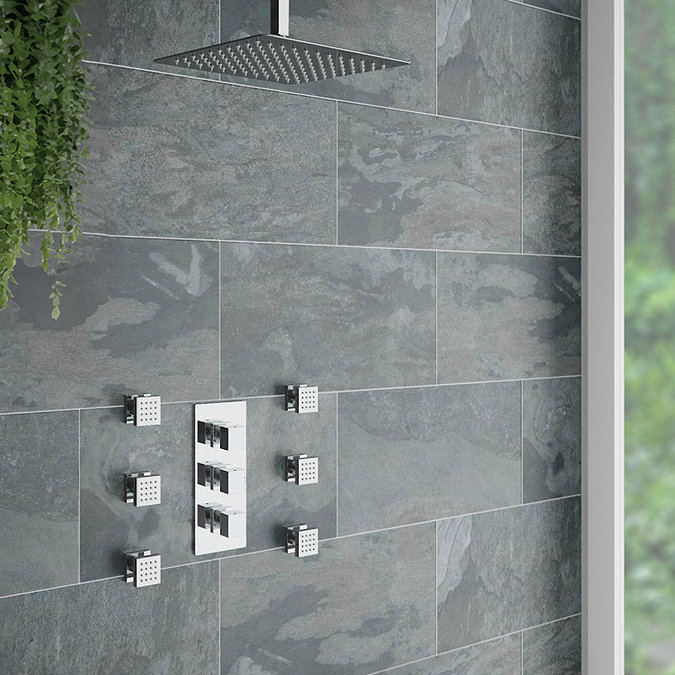

Milan Square Triple Shower Valve, Ceiling Mounted Square Shower Head & 6 Body Jets

Milan Modern Square Triple Valve, Ceiling Mounted Square Shower Head & 6 Body Jets Chrome

The Milan modern square two outlet shower package brings substantial elegance to the modern bathroom. The triple valve enables you to select the minimalist design ceiling mounted square shower head for a satisfying shower experience and six body jets which are perfect for creating a shower that massages you.

This shower valve has the added safety benefit of a built-in anti-scald device should the cold-water supply fail. This incredible package is perfect for the modern bathroom, looking to add a touch of style and sophistication. The stunning design can complement any contemporary style bathroom and each item has been built to the highest standards of today's manufacturing capabilities.

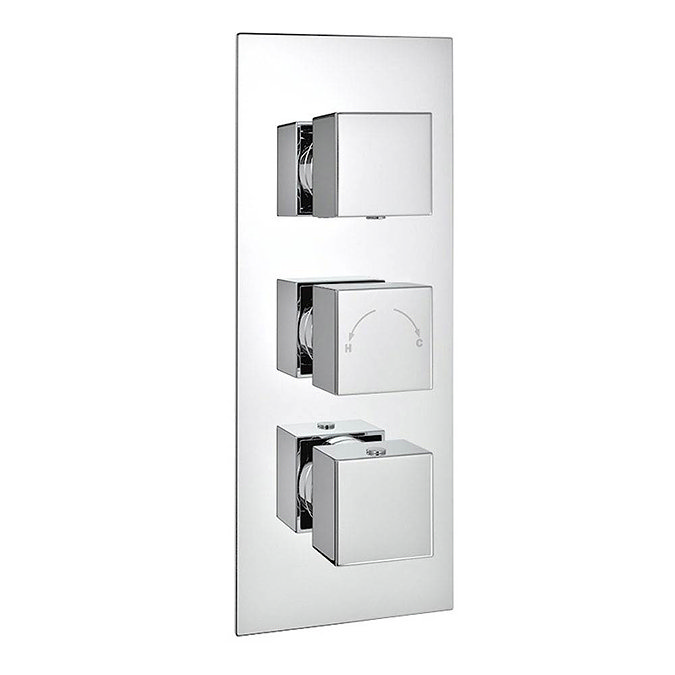

Triple Concealed Thermostatic Shower Valve Details

• Width: 120mm
• Depth: 126mm
• Height: 280mm
• High Quality Design
• Finish: Polished Chrome
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Backplate
• Style: Modern

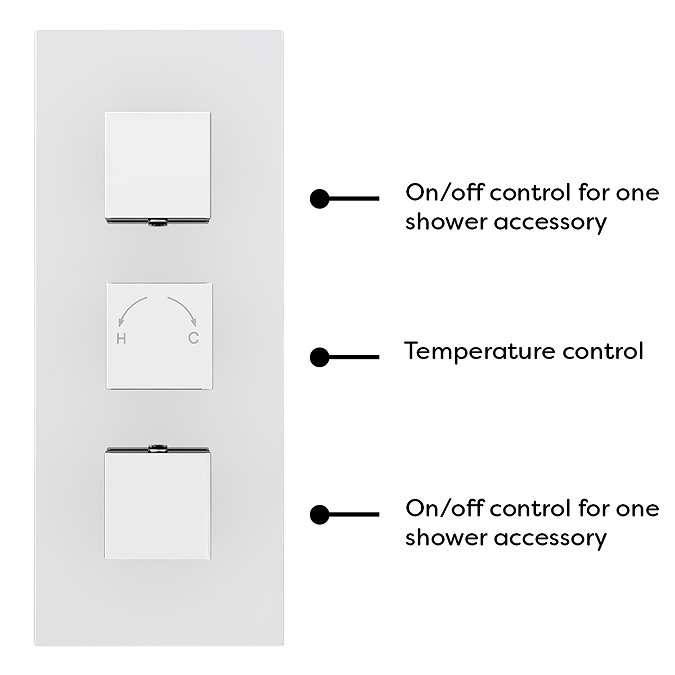

• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• The shower valve will not work efficiently on a gravity fed tank system unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

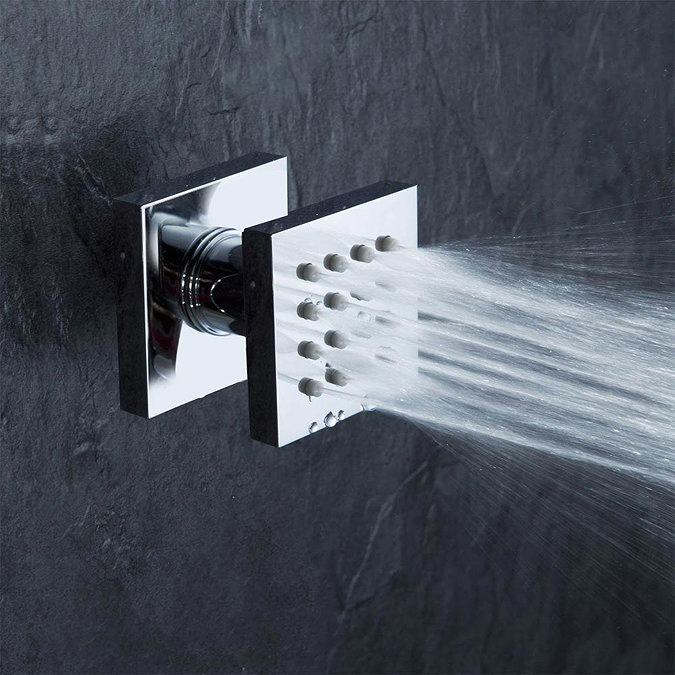

Slim Square Body Jet Details

• Overall Size: (D)60 x (W)50 x (H)50mm approx
• Shroud: (H)50 x (W)50mm
• Brass 1/2 inch BSP thread - 25mm long
• Require high flow rates when used in conjunctions with an overhead shower.
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass body
• Supplied with swivel joint
• Easy Clean Nozzles to Prevent Lime Scale Build-Up
• Requirement: Suitable for all plumbing systems

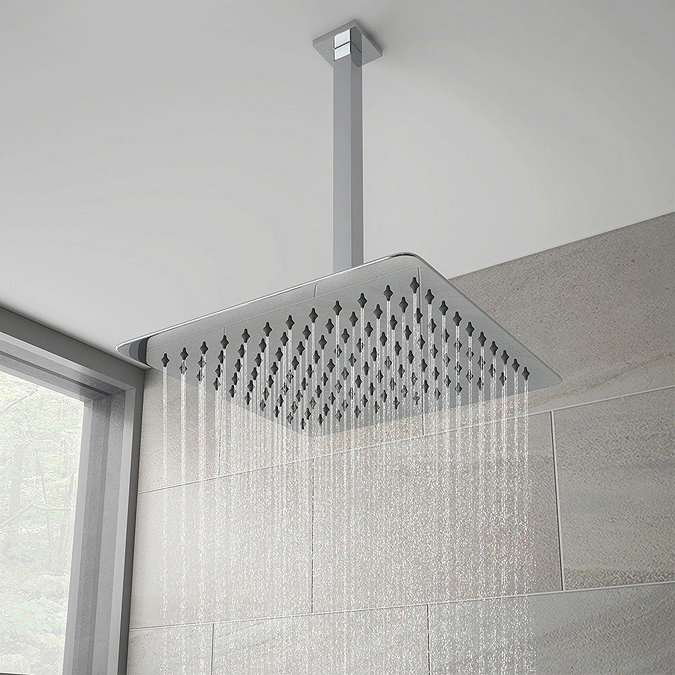

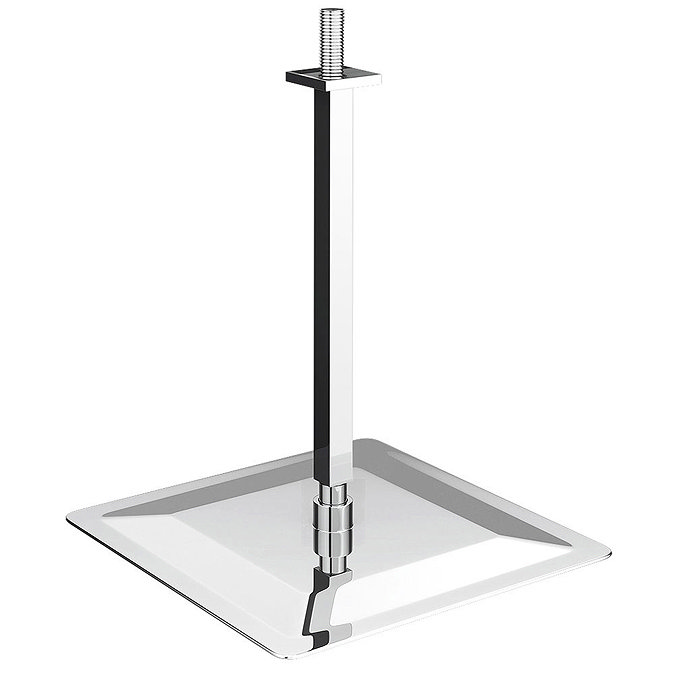

Ultra-Thin Square Shower Head with Vertical Arm Details

• Head Width: 300mm
• Head Depth: 300mm
• Arm Length: 300mm
• Thickness/Profile:3mm (excluding swivel joint)
• Inlet Connections: 1/2" BSP
• Style: Modern
• Colour/Finish: Chrome
• Material: Stainless Steel
• Pressure requirement 0.5 bar minimum
• Rub clean nozzles makes this item easy to clean and maintain
• Supplied with swivel ball joint



Please note, certain parts are chrome plated plastic, not metal.

Pictures for illustrative purposes only

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Modern Square Triple Concealed Thermostatic Shower Valve
(1) Ultra-Thin Square Shower Head with Vertical Arm
(6) Slim Square Body Jets

Gravity Fed Systems:
If you live in an older property there’s a good chance you will have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
