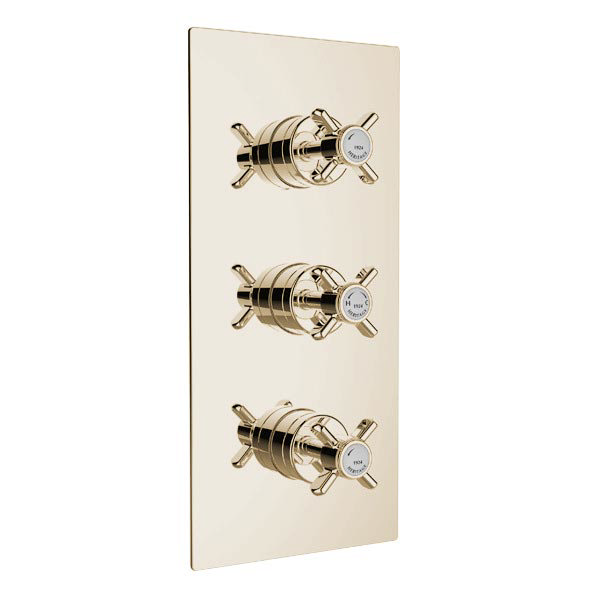

Heritage Dawlish Dual Control Recessed Valve w Twin Integral Stopcocks - Vintage Gold
Part No:SDA05
Discontinued
Product Information
Heritage - Dawlish Dual Control Recessed Valve With Twin Integral Stopcocks - Vintage Gold - SDA05
The luxury traditional Dawlish dual control concealed thermostatic shower valve with twin integral stopcocks, manufactured from brass with a polished chrome finish, Heritage's elegant range of shower valves are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates. Quality assured by a 5 year guarantee.
Suitable for two outlets.
Product Details
Concealed valve with integral diverter which allows use with both a fixed head and flexible handset.
Guarantee - 5 years covering manufacturing faults.
Flow Rates
0.2 Bar - (Handset) 6.04 l/m
0.5 Bar - (Handset) 9.55 l/m
1.0 Bar - (Handset) 13.51 l/m
2.0 Bar - (Handset) 19.1 l/m
3.0 Bar - (Handset) 23.4 l/m
5.0 Bar - (Handset) 30.2 l/m
The luxury traditional Dawlish dual control concealed thermostatic shower valve with twin integral stopcocks, manufactured from brass with a polished chrome finish, Heritage's elegant range of shower valves are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates. Quality assured by a 5 year guarantee.
Suitable for two outlets.
Product Details
- Product Code: SDC05
- Finish: Vintage Gold
- Product Type: Traditional
- Construction: Body is of brass construction & is designed to conform to BS EN 2000
- Valve Type: Ceramic Disc Valve
- Supply: Suitable for all plumbing systems, preferably balanced. The inlet hot water temperature must be at least 10% above the required blend temperature
- Inlet Connections: 15mm Compression connections
- Working Pressures: Min 0.2bar, Max 5.0bar
- Chrome plated to BS EN 248
- Suitable for cavities between 45-75mm
- Minimum cold water supply temperature is 5ºC
- Maximum hot water supply temperature is 80ºC
- Flow rate at 0.2bar (open outlet without flow regulators) is 9LPM from stopcock. 12.9LPM from both outlets together.
- Cartridge serviceable from the front
- Manufactured to comply with WRAS
Concealed valve with integral diverter which allows use with both a fixed head and flexible handset.
Guarantee - 5 years covering manufacturing faults.
Flow Rates
0.2 Bar - (Handset) 6.04 l/m
0.5 Bar - (Handset) 9.55 l/m
1.0 Bar - (Handset) 13.51 l/m
2.0 Bar - (Handset) 19.1 l/m
3.0 Bar - (Handset) 23.4 l/m
5.0 Bar - (Handset) 30.2 l/m
