Chatsworth Thermostatic Shower Bar Valve with Rigid Riser & Fixed Head Large Image
Chatsworth Thermostatic Shower Bar Valve with Rigid Riser & Fixed Head  Profile Large Image
Chatsworth Thermostatic Shower Bar Valve with Rigid Riser & Fixed Head  Feature Large Image
Chatsworth Thermostatic Shower Bar Valve with Rigid Riser & Fixed Head Large Image

Chatsworth Thermostatic Shower Bar Valve with Rigid Riser & Fixed Head

Part No.: EG-TCK-11

£239.95

|

In Stock

View in Real Homes

Overview

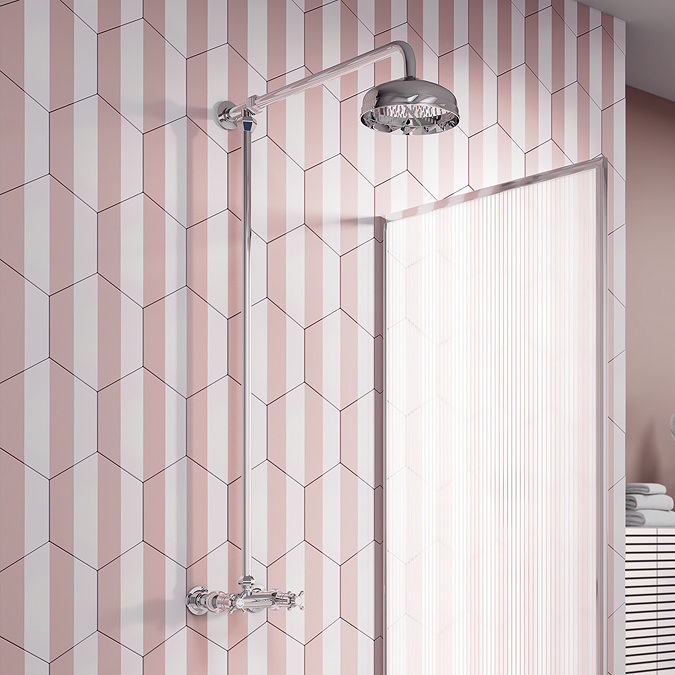

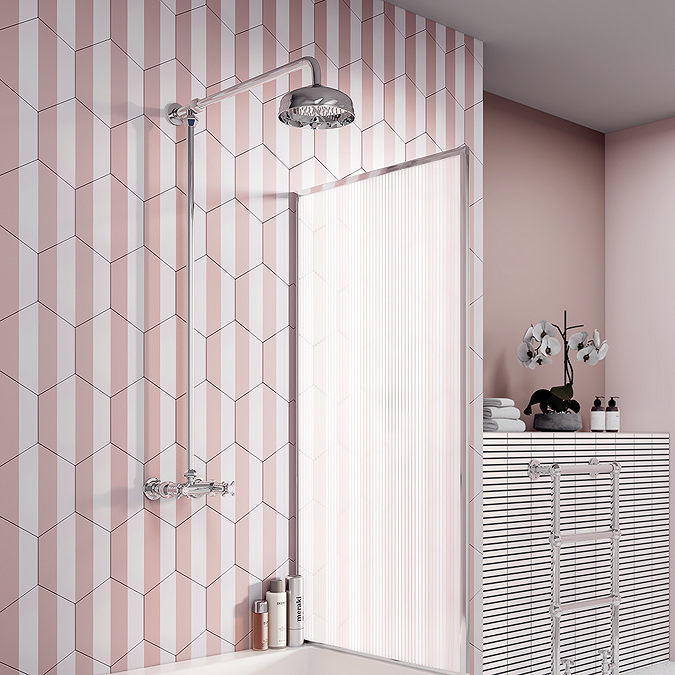

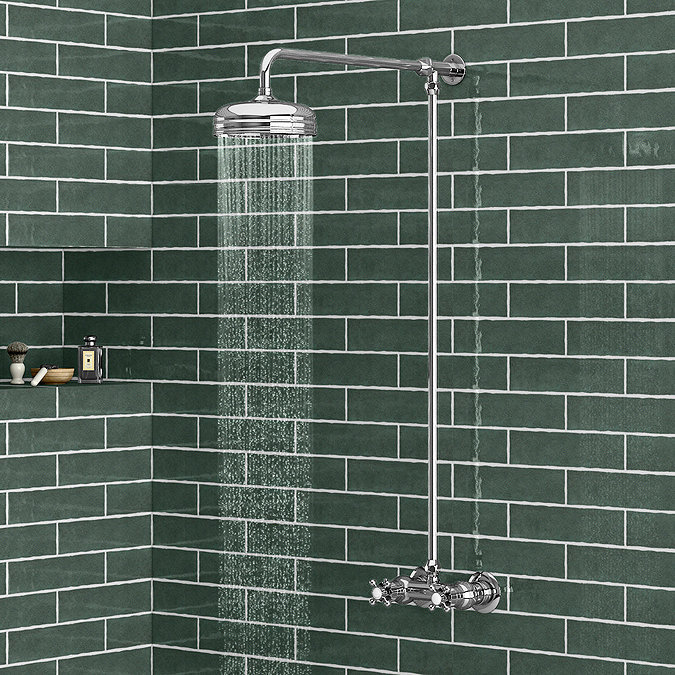

Chatsworth Traditional Thermostatic Exposed Top Outlet Shower Bar Valve with Rigid Riser & Fixed Head

The Chatsworth Thermostatic Shower Bar Valve adds a classic twist to your bathroom or en suite. It’s manufactured from solid brass for long lasting use with a polished chrome plated outer that you can keep clean easily. A round shower head is attached to the thermostatic bar shower valve, creating a luxurious rainfall effect for your enjoyment. To control water temperature and flow, use the two sleek cross head handles that are easy to operate. This wall mounted rigid riser shower requires just one outlet, meaning it's suitable for all plumbing systems.

Product Details
  • Height: 1045mm
  • Projection: 689mm
  • Shower Head Size: 200mm Diameter
  • Finish: Chrome Plated
  • Product Type: Traditional
  • Shape: Round
  • 1 Outlet
  • Supply: Suitable for all plumbing systems
  • Rainfall effect traditional Shower head
  • Wall mounted
  • Durable solid brass construction
  • 150mm between pipe inlet centres
  • 18mm Riser Pipe
  • Hot water temperature 55 to 85 Degrees
  • Shower valve will not work efficiently on a gravity fed tank system, unless a correct booster pump is installed.
  • Should a pump be required we recommend a universal or negative head pump.

All measurements are approximate

Images are for illustrative purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises


(1) Thermostatic Exposed Shower Bar Valve
(1) Rigid Riser with Round Fixed Head

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.

Product Overview

Dimension image

4 Questions

What is the flow rate at 0.5 bar and 5 bar?

Asked by Abbie

ANSWER

Trade Team. replied on 5th August 2021

Hi, The flow rates will shortly be added to our website. Thanks. Trade Team.

Is it possible to shorten the distance of the shower head from the wall?

Asked by Tooves

ANSWER

Nathan replied on 18th January 2021

Hello, Thank you for your question. The fixing at the top is a compression nut type. Although not completely impossible, we would not suggest doing this as it would void the item's warranty. Kind Regards.

Shower head pole length

Asked by Dan

ANSWER

Nathan replied on 15th January 2021

Hello, Thank you for your question. Please search part number: EG-TCK-11 into our website. Just under the product's images, there is a tab for 'product dimensions'. Please click this - you will be presented with all the detailed line drawings. Kind Regards.

How do I increase the temperature and water flow

Asked by Sandra

ANSWER

Nathan replied on 13th January 2021

Hello, Thank you for your question. I have taken a quick look at this item for you and have also confirmed with the manufacturer. The left side turns the shower on/off and allows you to adjust the flow. The right side is for adjusting the temperature. Kind Regards.

Showing 4 of 4 questions

Delivery Costs

Tell us where you are so we can calculate your delivery

Delivery FAQs

Larger pallet couriers will contact you on the day to let you know a rough time for delivery, due to the size and cost, a signature is always required.
We always suggest someone is home to accept the delivery, as missing your delivery may result in a re-delivery fee being charged

If the courier has left you a calling card you may contact them directly to rearrange delivery for a more convenient time. If you have not received a calling card, we will be able to assist you in re-booking delivery. Please use the live chat function to speak directly to a member of the team, or alternatively email us at info@victorianplumbing.co.uk.

Orders can be updated and modified up until the picking process begins. To amend your order please get in touch via Live Chat or by emailing us at info@victorianplumbing.co.uk.

If you would like to upgrade your delivery or arrange to split your delivery, you can do this via the help centre.
Please note, once your order has begun to be picked at our warehouse, you will not be able to make any further additions.

Yes, please get in touch with the team either via live chat or at info@victorianplumbing.co.uk to arrange a pre-order.

If you are ordering other in-stock items alongside this, please be aware your shipment will be held until all items are ready to be dispatched. If you would like to arrange a split delivery, please let the team know as soon as your order is confirmed.

We can only deliver and accept signatures from the delivery address as per the order.

Larger pallet couriers will contact you on the day to let you know a rough time for delivery, due to the size and cost, a signature is always required. Small parcel couriers may leave these with a neighbour if no one is home to accept delivery and leave an appropriate calling card if so.

We always suggest someone is home to accept the delivery, as missing your delivery may result in a re-delivery fee being charged.

Returns

For further information on our returns process, please check out our Returns Information Page.

International Delivery

Available - delivery costs will be calculated at the checkout.

Please note:

  • Out-of-stock items will despatch on a similar timescale once in stock.
  • You will be advised of any changes in the expected in-stock date.
  • The delivery timescale of an order is dependent on the size of the largest item in the order, relating to the guide above.We strongly advise that you do not book plumbers until your goods have arrived and have been checked, we are not liable for any plumbers costs, consequential loss or compensation in any way.

4.2

5 customer reviews

5 stars

3

4 stars

0

3 stars

2

2 stars

0

1 stars

0

15th February 2023

Cannot be used

Shower looks lovely however our plumber cannot fit this because the fittings are different to anything he’s seen before. It would mean having to rip our new tiles off the wall to fit the bar from behind!? This needs to be made clear in the description.

Jodie Baker from East England

3rd January 2023

Not easy to install

This shower looks and feels great quality but isn’t easy to install. The instructions are not worth the paper they’re written on. You have to connect a female coupling to the back of the valve behind the tiles so have to connect and pressure test prior to tiling. Poor design compared to others.

John Barraclough from Stoke

6th November 2020

Review From Trustpilot

Looks great and good quality.

Margaret Osman from UK - verified purchaser

19th July 2020

Review From Trustpilot

Great product

Kevin Ager from UK - verified purchaser

14th February 2019

most excellent

Fabulous service! :)

richard from MARKET HARBOROUGH - verified purchaser
