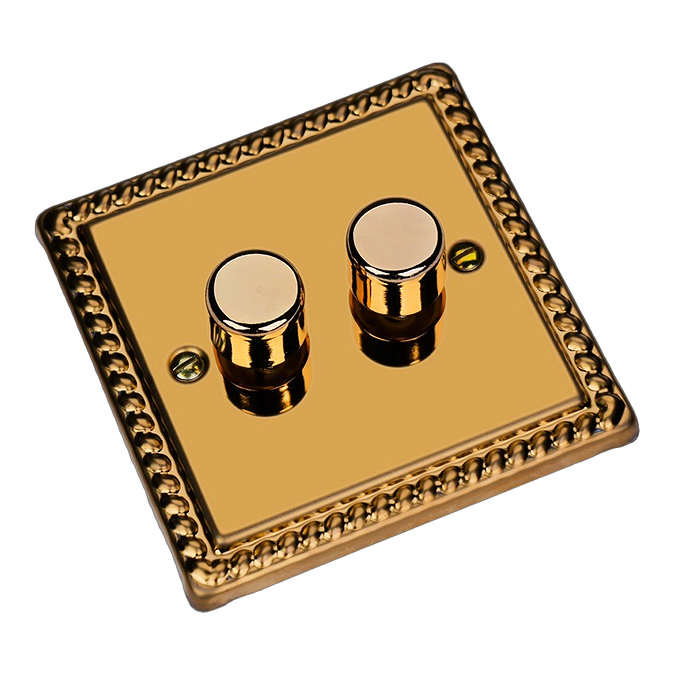

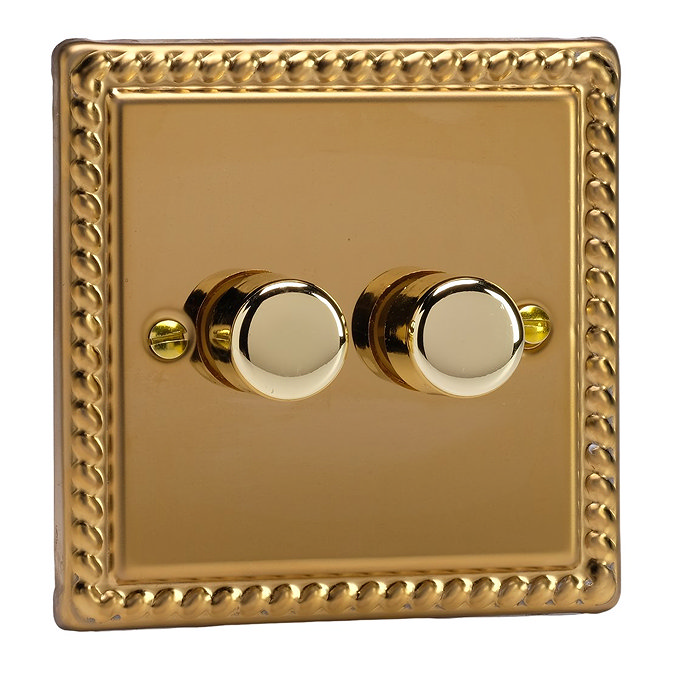

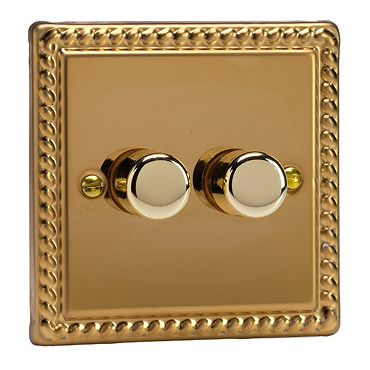

Ellis & Co 2-Gang LED Dimmer Switch Georgian Brass

Ellis & Co 2-Gang LED Dimmer Switch Georgian Brass

Add elegant finishing touches and flexible lighting control to your interior with the Ellis & Co Classic 2-Gang LED Dimmer Switch in Georgian Brass. Featuring dual rotary dimmer controls and a timeless rope-edge faceplate design, this decorative switch is ideal for creating adjustable lighting scenes throughout living spaces, bedrooms, dining rooms, and hallways.

Engineered for use with many dimmable LED lamps, the intelligent dimming technology helps deliver smooth, reliable performance while built-in protection features support safe everyday operation. The polished brass rotary knobs and traditional Georgian styling create a premium appearance suited to both classic and contemporary interiors.

Key Features

• 2-Gang 2-Way LED Dimmer: Independently control two separate lighting circuits from one convenient switch plate
• Dual Push On/Off Rotary Controls: Easy-to-use rotary dimmers allow precise adjustment of lighting levels
• Adjustable Minimum Brightness: Helps reduce flickering and improve compatibility with low-load LED lighting
• Soft Start Function: Gradually increases brightness to help enhance lamp longevity and improve user comfort
• Intelligent Overload Protection: Built-in safety protection helps prevent overload-related damage during operation

Technical Specifications

• Brand: Ellis & Co
• Type: 2-Gang LED Dimmer Switch
• Product Code: ECVL22RD
• Finish: Georgian Brass

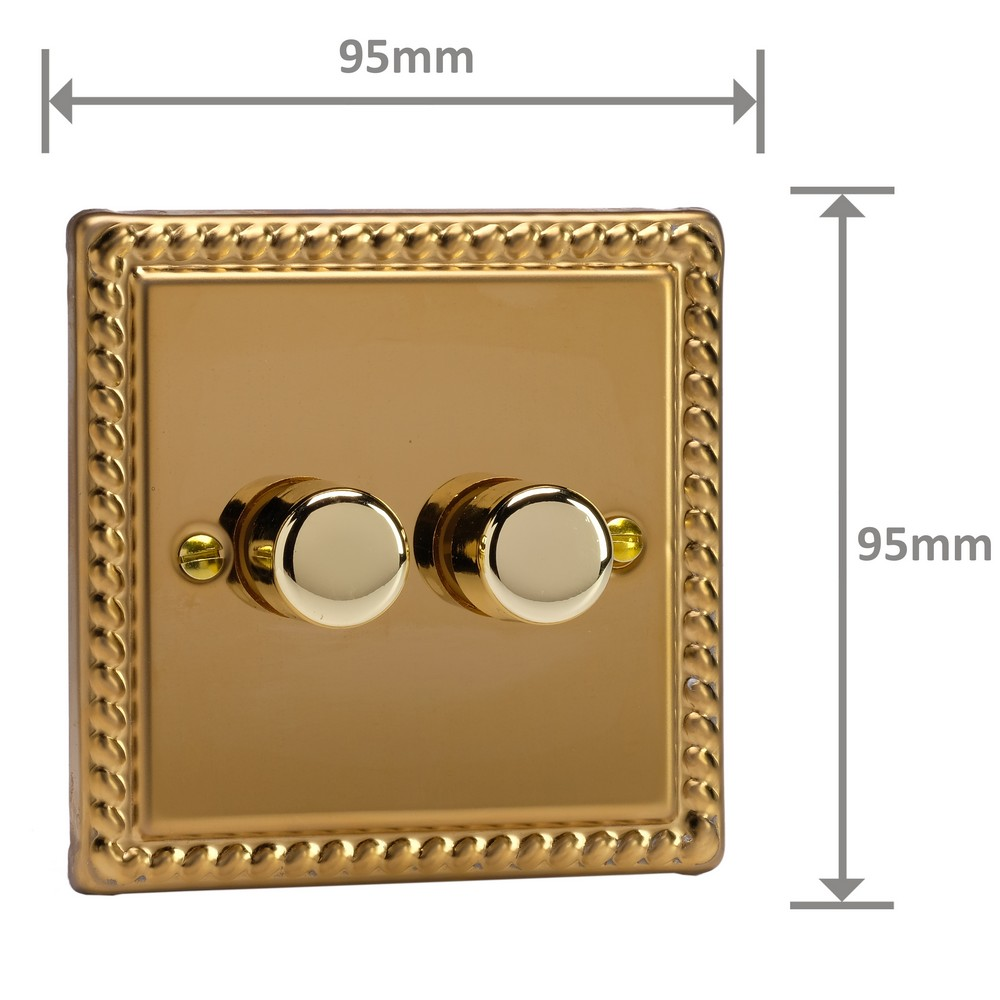

• Dimensions: (H)95 x (W)95 x (D)47mm

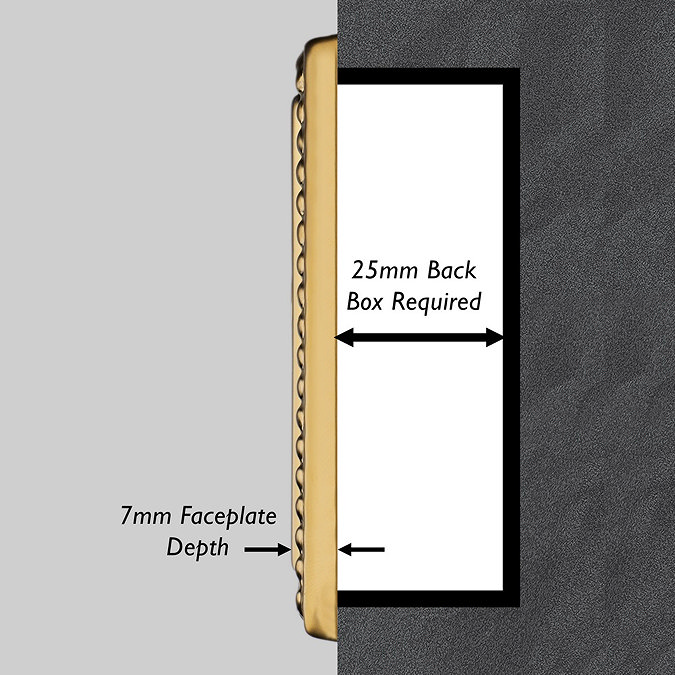

• Faceplate Depth: 7mm
• Fixing Centres: 60.3mm
• Recommended Back Box Depth: 25mm
• Operating Voltage: 230V / 50Hz
• Maximum LED Load: 120W
• Maximum Current Rating: 0.9A
• Standards: BS EN 60669-2-1
• Application: Indoor use only

Lifetime guarantee

Images are for illustrative purposes only. All measurements are approximate.

Important Information

• Suitable for use with compatible dimmable LED lighting only
• Not suitable for non-dimmable fluorescent lighting, electric motors, or transformer-controlled loads
• Product must be earthed during installation
• Do not exceed the maximum rated load
