Ellis & Co Unswitched Fused Spur Georgian Brass - White

Ellis & Co Unswitched Fused Spur Georgian Brass - White

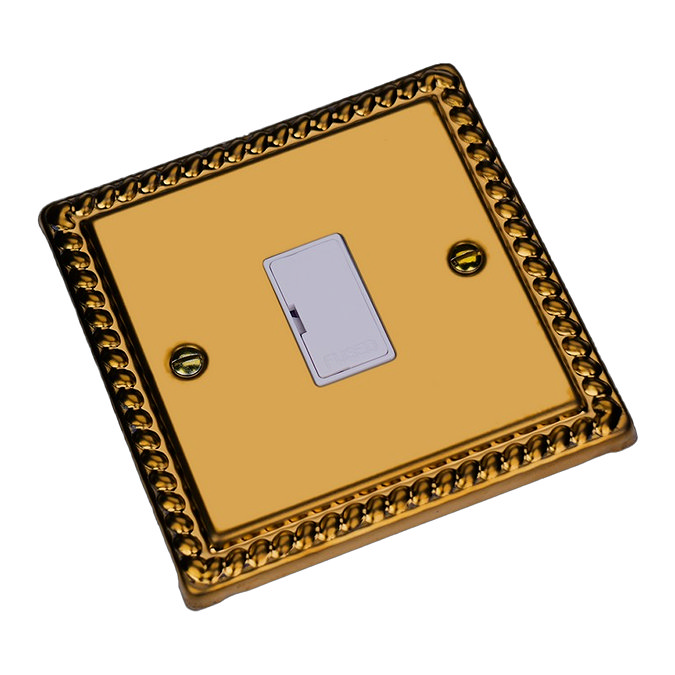

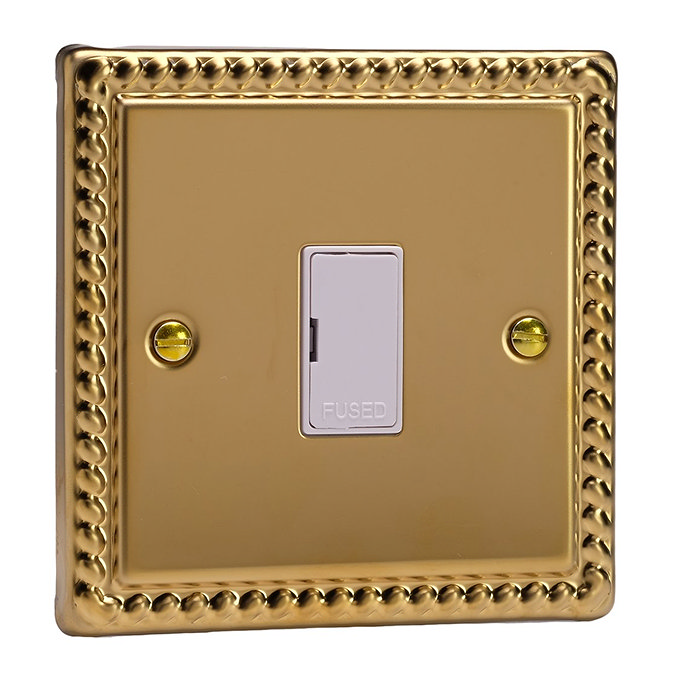

Complete your electrical installation with the Ellis & Co Unswitched Fused Spur in Georgian Brass. Combining dependable everyday functionality with timeless styling, this elegant fused spur features a decorative rope-edge faceplate to complement both traditional and contemporary interiors.

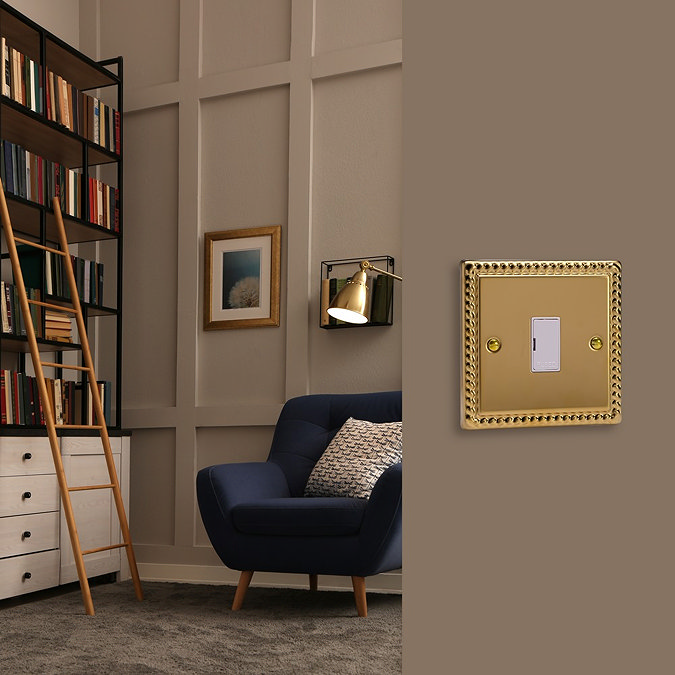

Designed for indoor domestic power applications, this fused spur is ideal for safely connecting fixed appliances such as extractor fans, boilers, lighting circuits, and heated towel rails. The raised plate profile and warm Georgian brass finish create a refined, premium appearance throughout kitchens, bathrooms, utility rooms, and other interior spaces.

Key Features

• Unswitched Fused Spur Design: Ideal for safely connecting fixed electrical appliances and spur circuits
• Replaceable 13A Fuse Included: Supplied complete with a standard replaceable fuse for convenient installation
• Compatible with Standard Fuses: Designed to accept standard 25.4 x 6.4mm fuses
• Suitable for Indoor Domestic Use: Ideal for kitchens, bathrooms, utility rooms, and other interior spaces

Technical Specifications

• Brand: Ellis & Co
• Type: Unswitched Fused Spur
• Product Code: ECVLUFSW
• Finish: Georgian Brass
• Insert Colour: White

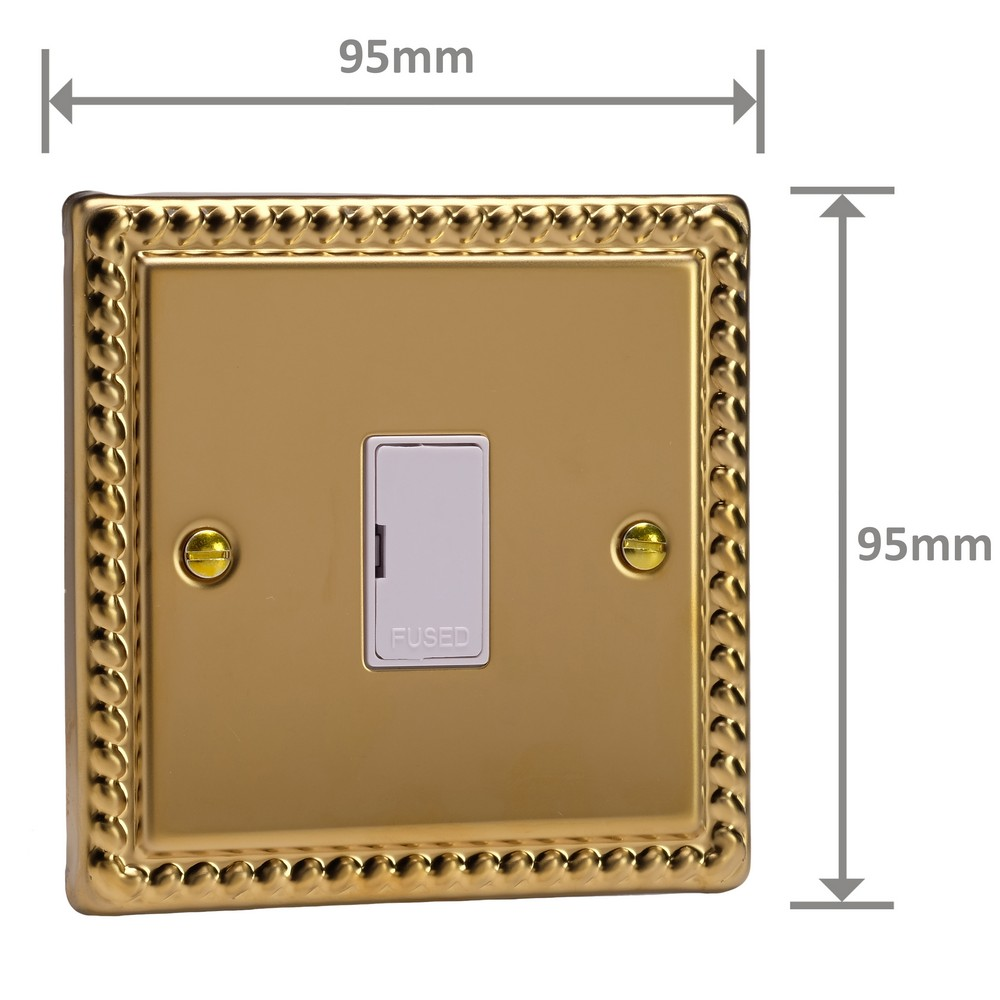

• Dimensions: (H)95 x (W)95 x (D)30mm

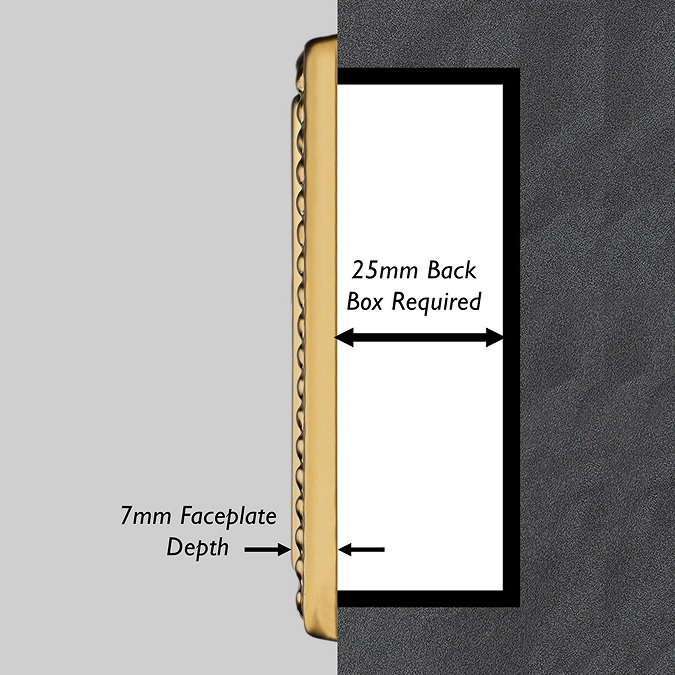

• Faceplate Depth: 7mm
• Fixing Centres: 60.3mm
• Recommended Back Box Depth: 25mm
• Operating Voltage: 230V / 50Hz
• Maximum Current Rating: 13A
• Standards: BS 1363-4
• Application: Indoor use only
• Product must be earthed for safe installation and operation

Lifetime guarantee

Images are for illustrative purposes only. All measurements are approximate.
