Chatsworth Yale Traditional Wall Hung Towel Rail Radiator (635 x 1000mm)

Yale Traditional Wall Hung Towel Rail Radiator (630 x 1000mm) Feature Large Image

Chatsworth Yale Traditional Wall Hung Towel Rail Radiator (635 x 1000mm)

Part No:X506

£399.95

In Stock

0% Finance AvailableFrom £14.99 a month

Delivery OptionsAdd postcode to view all options

Delivery & Returns FAQs

Browse all Chatsworth

Product Information

Chatsworth Yale Traditional Wall Hung Towel Rail Radiator (635 x 1000mm)

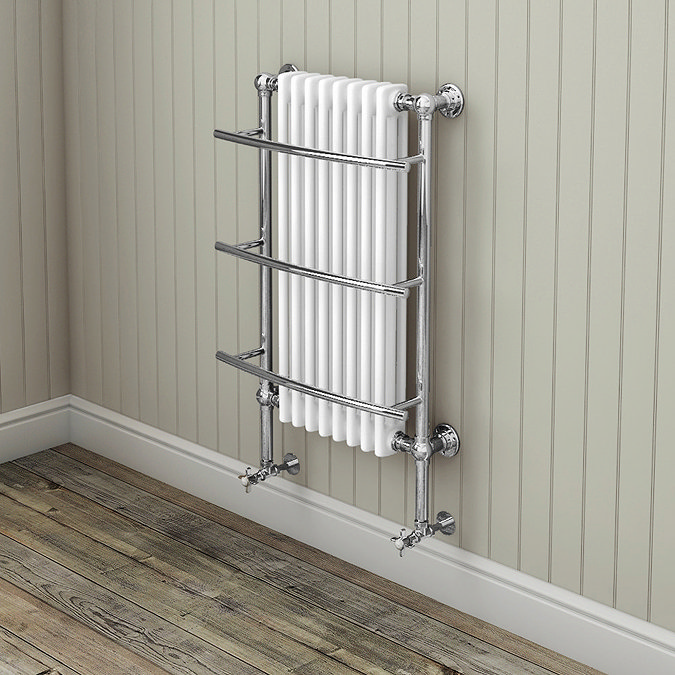

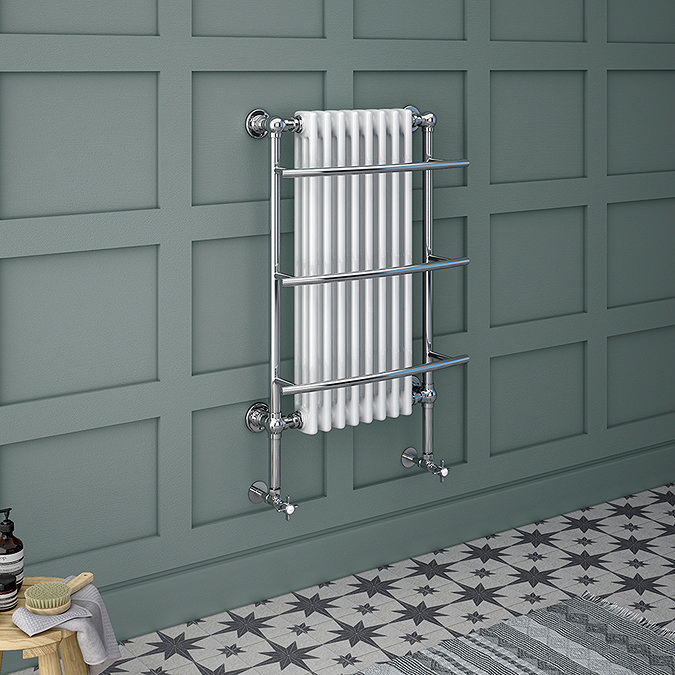

Introduce a hint of opulence to your bathroom decor with this Yale Towel Rail Radiator from Chatsworth. This radiator, measuring 630mm in width, is equipped with three handy rails to ensure your towels remain warm and cosy. This sophisticated, period-style piece boasts chrome-plated ball joints and a white enamel column insert, exuding a classic manor house aesthetic while delivering impressive modern heat output. As a wall-mounted unit with no floor footprint, it’s also an ideal choice for compact spaces. The traditional towel rail includes fixing screws for straightforward assembly.

Product Details:

Depth: 230mm, Height: 1000mm, Width: 635mm
Size, Type, and Position of Connections: 1/2" FI BSP
Dry Weight: 26.6 kg
Water Content: 11.16 ltr
BTU T50: 3618
∆ Watt T50: 1060 °C
Tube Diameter: 32mm
Style: Traditional
Installation: Wall-mounted
Colour/Finish: White & Polished Chrome
Heating Type: Central Heating
Material: Steel
Configuration: 3-column, 8-section radiator
Package Includes: Fixing screws
Tested and Certified BS EN 442-1 Standards
UKCA / CE Marked
ISO9001:2015 Registered Manufacturer

All measurements are approximate, images are for illustrative purposes only.

Please note that radiator valves are not included but can be purchased separately. We recommend that pipework is not installed until the radiator or heated towel rail has been received.

Guarantee: 5 Years

4.9

13 customer reviews

5 stars

4 stars

3 stars

2 stars

1 stars

Very pleased

Really pleased with this. It gives out a lot of heat and heats our big bathroom well. The previous towel rail didn’t heat the room at all. V pleased and looks smart.

thomas house from Greater London - verified purchaser

Awkward Fitting

Firstly, the radiator looks great and heats the room and towels well. However, it has been one of the worst and most difficult radiators to fit that I have ever come across. As usual with most things, the supplied wall plugs are terrible and the screw heads not much better so plan to get some better quality ones straight away. Then the problem of the screw hole positioning becomes apparent. The hole positions on the four mounting plates are not uniformly distributed making measuring up to drill a nightmare. They are not vertically or horizontally aligned with each other and, given the radiator is wall hung and very heavy, it's not easy to offer it up to mark them out. When mounting on tiles where any error can't be easily fixed it's not fun. The most infuriating bit is the two screws on the bottom brackets that are directly behind the radiator legs. When offered up to screw in, the screw head is touching the back of the pipe, meaning you have no hope of getting a screwdriver to it. Pliers used to get it started, then a universal jointed screwdriver to finish - madness. Nice now it's done but brace yourself or get your plumber a stiff drink afterwards.

Jon Elks from Northamptonshire

Review From Trustpilot

It looks stunning , very pleased .

roger pinner- verified purchaser

Superb Radiator / Towel Rail

Love this product. Everything about it oozes quality, and boy it throws some heat out. It's heavy, so going into plaster board had to add wood noggins to support the weight. I also, used some over boarding similar to the product picture on the website. Very pleased with the results.

Philip Jones from Crewe - verified purchaser

Review From Trustpilot

Good looking radiator, happy with it.

Jacqueline Hobbs- verified purchaser

Review From Trustpilot

"Fitted and heats the bathroom significantly better than the previous simple ladder type towel rail. Simple to fit, (Be aware that for ease it does require two people). Built to a high standard with no faults found and looks like it will stand the test of time."

Andy Percy from UK - verified purchaser

Review From Trustpilot

I am very happy with my towel rail radiator. I was a bit nervous as it was described as wall mounted but was so easily adapted to floor standing and is exactly what I wanted.

HELEN WINFIELD from UK - verified purchaser

Great for the Job!

We bought the Yale Traditional wall hung radiator for our new En-Suite Bathroom. We were looking for a large Retro radiator that suited our Village House. The product is of good build quality and bangs out ample heat to heat the Bathroom, and warm plenty of Towels! You will need a Masonry wall to fit this radiator to. It is pretty heavy! But at 630mm wide, it's one of the bigger Traditional Towel Rail radiators you can get! I would recommend this product!

Mark from BRACKNELL - verified purchaser

Review From Trustpilot

"Really well made, high quality product. Very effective at heating bathroom "

David Longson from UK - verified purchaser

Review From Trustpilot

Very stylish.

Garry Brennan- verified purchaser

Showing 10 of 13 reviews

6 Questions

Which radiator valves should I buy to match the image?

Asked by Laura

ANSWER

Customer Services Team. replied on 4th May 2022

Hi, If you contact us via Live Chat, a member of our customer service team will be more than happy to assist with your query. Thanks. Customer Services Team.

How do you bleed this radiator?

Asked by Rosemary

ANSWER

Technical Team. replied on 16th September 2021

Hi Rosemary, There is a 1/4" bleed point situated on the underside of the top right support close to the wall securing plate. Thanks. Technical Team.

Do the rails themselves heat up?

Asked by MarkToney

ANSWER

Nathan replied on 14th April 2021

Hello, Thank you for your question. Yes indeed, the chrome pipework will also be heated. Kind Regards.

Is there a floor mounted version of this?

Asked by Lindsay

ANSWER

Technical Team. replied on 15th April 2021

Hi Lindsay, Unfortunately a floor mounted version of this Towel Rail is not available. Thank You. Technical Team.

what is the BTU output please and why do you not show this important figure?

Asked by joseph

ANSWER

Shaun replied on 30th August 2019

Hello there Joseph, Thank you for your enquiry. The BTU is 3780 BTU and the wattage is 1108 W. These are measured at Delta T50 which is a EU and UK standard gauge for measuring the output of radiators. These figures can also be seen in the Product Info Tab on the web page. Hope this helps.

can this radiator be dual fuel?

Asked by Tony

ANSWER

Shaun replied on 2nd July 2019

Hi Tony, This Yale Traditional Towel Radiator can be used as a dual fuel radiator. You can purchase a suitable electric heating element separately. Alternatively, you can purchase both as a bundle using Productor Code: X506-EHK, or by following this link: /yale-traditional-wall-hung-towel-rail-radiator-inc-valves-electric-heating-kit All the best

Showing 6 of 6 questions
