Urban Horizontal Radiator - Anthracite - Double Panel (1600mm Wide)

Urban Horizontal Radiator - Anthracite - Double Panel (1600x304mm)

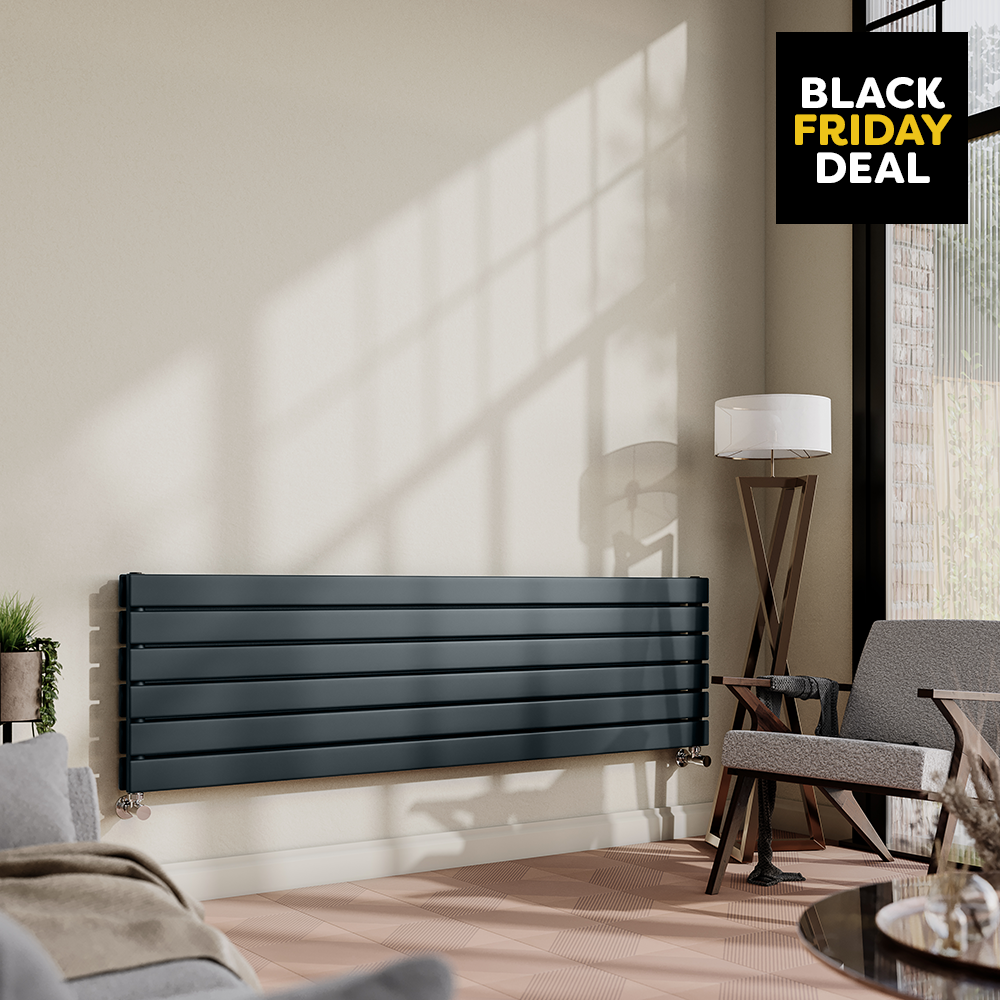

This minimalist flat-panel grey radiator from the Urban range features a highly contemporary design with a stylish finish in muted anthracite. The horizontal radiator is 1600mm wide and available in various height options to suit any bathroom space. The double-panel rectangular tubes provide exceptional heat output, ensuring your bathroom stays luxuriously warm through the winter. This particular option is 304mm in height.

Product Details:

• Width: 1600mm
• Height: 304mm
• Depth: 61mm
• Projection from wall: 103mm
• Size, type, and position of connections: 1/2" FI BSP
• Dry Mass: 24.1kg
• Content: 7.8lt
• Heat Output (BTU T30): 1430
• Heat Output (Watt T30): 418W
• Heat Output (BTU T50): 3113
• Heat Output (Watt T50): 913W
• Max Operating Pressure: 10 Bar
• Colour: Anthracite Grey (RAL 7016)
• Type: Double
• Tube Size: H68xD12mm
• Columns: 4
• Rectangular tubes provide exceptional heat outputs
• Can be fitted horizontally or vertically
• Supplied with matching anthracite horizontal brackets
• Pipe centres when mounted horizontally: 1550mm

Note:

Blocker requires knocking out for horizontal installation - Refer to line drawings.
Images are for illustrative purposes only. All measurements are approximate.
We recommend pipework is not installed until receipt of the radiator or heated towel rail. Radiator valves are not supplied but can be purchased separately.
Guarantee: 5 Years
