Trafalgar Victorian Exposed Valve inc. Rigid Riser Kit, Diverter, 8" Rose + Handset

Part No.: TSVPK02
5 out of 5
5 out of 5
5 out of 5
5 out of 5
5 out of 5
Read reviews  |   Write a review
2 Reviews  |  Write a Review
£299.95
Was £349.95
In Stock
Item Added To Basket
Added Product
Free Delivery Orders over £'299*'
Spend £ more to qualify for Free Standard Delivery*
Essential Items

Estimated Delivery Cost

Standard Delivery (2-10 Working Days) - Free
Next Day Delivery (1 Working Day) - £9.95
Orders over £299 - FREE STANDARD DELIVERY

International Delivery Available

For delivery on

Order in next
day(s)  |  hrs  |  mins

Description

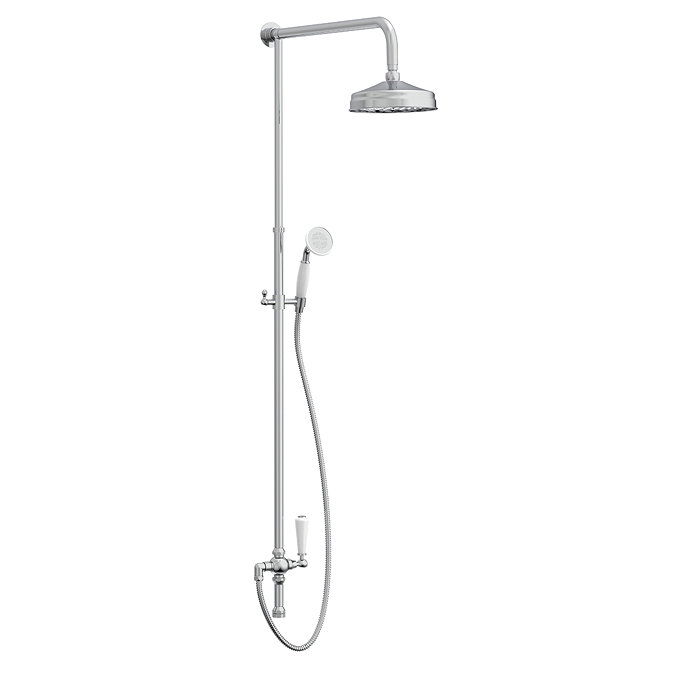

Trafalgar Victorian Exposed Valve inc. Rigid Riser Kit, Diverter, 8" Shower Rose + Handset

The Trafalgar Victorian Exposed Valve Rigid Riser Kit is the perfect companion to traditional mixer showers. There are two easy to operate controls – one for adjusting the stream and the other to help you achieve the right temperature. It also has a built in anti-scald device, just in case the cold water fails. Its handy slide rail kit allows you to position the 8" shower rose to the angle you need, while its solid brass and chrome construction delivers on sturdiness and style.

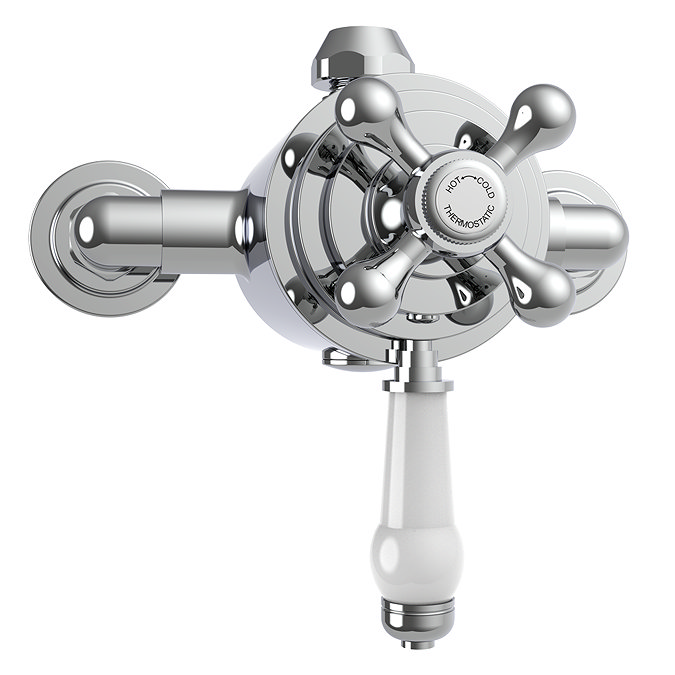

Shower Valve Details
  • Projection: 153mm
  • Height: 178mm
  • Type: Dual Exposed Shower Valve
  • Colour/Finish: White/Chrome
  • Manufactured from solid brass
  • Smooth Operation with Quality Components
  • Water Pressure: MP - 0.5 bar pressure minimum
  • Standards EN200 and/or WRc/NSF
  • Anti-scald technology
  • Classic body with traditional lever and cross head handles
  • 150mm between H & C pipe inlet centres
  • Suitable for modern pressurised plumbing systems.
  • Hot water temperature 55 to 85 Degrees
  • Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
  • Should a pump be required we recommend a universal or negative head pump.
  • Diverter allows use of one outlet only
  • Flow Rates:
  • 0.5 bar - 9.6 L/M
  • 1 bar - 14 L/M
  • 2 bar - 20 L/M
  • 3 bar - 24.7 L/M
  • 4 bar - 28.6 L/M
  • 5 bar - 32 L/M

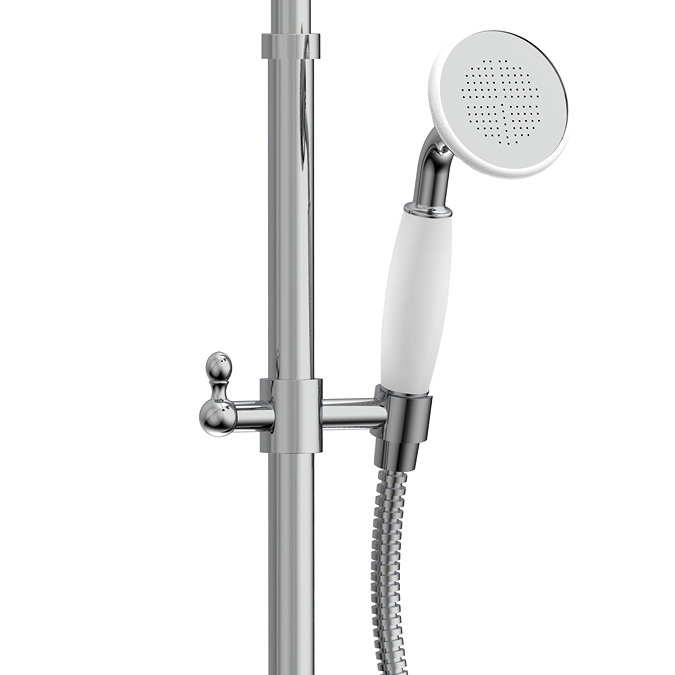

Slide Rail Kit Details
  • Traditional Design
  • Colour/Finish: Polished Chrome
  • Material: Brass Internals
  • Slide Rail Kit & Shower
  • Manufactured to the Highest Standards
  • Smooth Operation with Quality Components
  • Adjustable Handset Position
  • 1.5m hose

All measurements are approximate

Product images are for illustrative purposes only

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises


(1) Traditional Shower Slide Rail Kit - Chrome
(1) Traditional Dual Exposed Thermostatic Shower Valve - Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
Download Instructions
Product Dimensions
Delivery Costs
Please enter the post code of your delivery address.
    Please note:
    • Out-of-stock items will despatch on a similar timescale once in stock.
    • You will be advised of any changes in the expected in-stock date.
    • The delivery timescale of an order is dependent on the size of the largest item in the order, relating to the guide above.We strongly advise that you do not book plumbers until your goods have arrived and have been checked, we are not liable for any plumbers costs, consequential loss or compensation in any way.
    Your Questions & Answers ask a question
    13 Questions | 13 Answers
    Collapse All
    • Q.  Can the handle on the diverter be placed on the right hand side of the Diverter instead of the left
      1 Answers
    • Answers
      Answer:

      Hi There, Thank you for your question. Yes indeed, this diverter can be reversed without issue. Kind Regards.

      replied on 08 Jun 2021
      0 out of 0 found this question helpful.
    • Q.  Can i fit a replacement arm and head? i want to increase the height as the bathroom ceiling is low and this arm and head drop quite low
      1 Answers
    • Answers
      Answer:

      Hi, Yes you could fit another arm & head but you must ensure you choose an arm with the same bore of pipe to ensure it fir the elbow at the top of the riser. Thanks. Technical Team.

      replied on 21 May 2021
      0 out of 0 found this question helpful.
    • Q.  Do I need a fixing kit to fix the valve to the wall, or is everything I need included?
      1 Answers
    • Answers
      Answer:

      Hi Dave, The product includes a kit and all you need to install this shower correctly! Thanks. Technical Team.

      replied on 12 May 2021
      0 out of 0 found this question helpful.
    • Q.  Can you switch between the shower heads? i.e. have the handheld shower head on only? Thanks!
      1 Answers
    • Answers
      Answer:

      Hello Julia, Thank you for your question. Yes indeed, the diverter halfway up will allow for single use of both points and the 3rd option for use simultaneously. Kind Regards.

      replied on 28 Apr 2021
      0 out of 0 found this question helpful.
    • Q.  Do you sell spare thermostat cartridges for this shower?
      1 Answers
    • Answers
      Answer:

      Hi Amanda, We'd recommend contacting the following company: Lou Ed Marketing on 01909 519 797. Quote part Ref: TSV11 for a new cartridge for that shower - they should be able to assist. Hope this helps! Technical Team.

      replied on 15 Apr 2021
      0 out of 0 found this question helpful.
    • Q.  Hi, can the pipe be trimmed to reduce the depth of the rose from the wall? We'd be looking to reduce depth by approx 50-100mm. Thanks?
      1 Answers
    • Answers
      Answer:

      Hi Charles, Yes, you can shorten the pipe from the elbow on the riser to the shower rose as this is a compression type fitting. Regards. Technical Team.

      replied on 07 Apr 2021
      0 out of 0 found this question helpful.
    • Q.  does this product come in gold
      1 Answers
    • Answers
      Answer:

      Hello there, Thank you for your question. Unfortunately, I have taken a look through the system and we do not offer this item in gold. Kind Regards.

      replied on 30 Mar 2021
      0 out of 0 found this question helpful.
    • Q.  Can you trim the riser pipe at either end of the pipe with the diverter on to reduce the overall height to fit in with my ceiling height?
      1 Answers
    • Answers
      Answer:

      Hello there, Thank you for your question. This riser kit can be cut to height but unfortunately, this does void the item's warranty. Kind Regards.

      replied on 29 Mar 2021
      0 out of 0 found this question helpful.
    • Q.  Pipe work only
      1 Answers
    • Answers
      Answer:

      Hello, Thank you for your question. Yes, you can buy the valve only. Part Ref: TSV11. Hope this helps!

      replied on 16 Feb 2021
      0 out of 0 found this question helpful.
    • Q.  porcelain valve replacement
      1 Answers
    • Answers
      Answer:

      Hello, Thank you for your question. Unfortunately, we do not sell replacement parts for this item. If the item is still under warranty please contact our customer services team on info@victorianplumbing.co.uk If this item is outside of warranty period we will be able to point you in the direction of the manufacture to source a spare. Kind Regards.

      replied on 18 Jan 2021
      0 out of 0 found this question helpful.
    • Q.  does this come with a rigid riser or a slide rail?
      1 Answers
    • Answers
      Answer:

      Hi there, I can confirm this comes supplied with a rigid riser that connects directly to the outlet on the shower valve supplied.

      replied on 30 Aug 2019
      0 out of 0 found this question helpful.
    • Q.  Is this shower easy to control, without getting the water to hot
      1 Answers
    • Answers
      Answer:

      Hi Margo, Thank you for your question. This shower is thermostatic so the temperature is easy to change and will keep consistent once set; even if people are using water elsewhere in the home. A digital shower would be a great choice too! They're just as easy to control, with the added benefit of being able to set the temperature to the precise °C you require. Hope this helps! Shaun

      replied on 10 Jun 2019
      1 out of 1 found this question helpful.
    • Q.  do you do spares for the trafalgar victorian set?
      1 Answers
    • Answers
      Answer:

      Hi Big Al, Please email us at info@victorianplumbing.co.uk with your Order Number and a description of the issue. We will then be able to assist with supplying the required spare part. All the best, Shaun

      replied on 31 May 2019
      0 out of 0 found this question helpful.
