Trafalgar Toilet Frame & Dual Flush Cistern - Brushed Brass Plate

Trafalgar Wall Hung Toilet Frame with Dual Flush Cistern & Brushed Brass Flush Plate - 2 Buttons

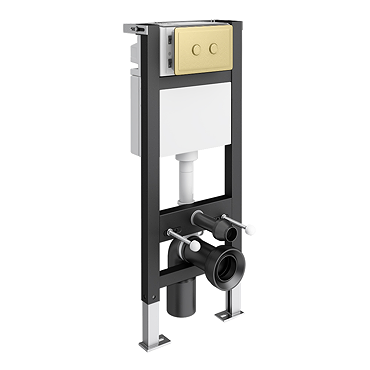

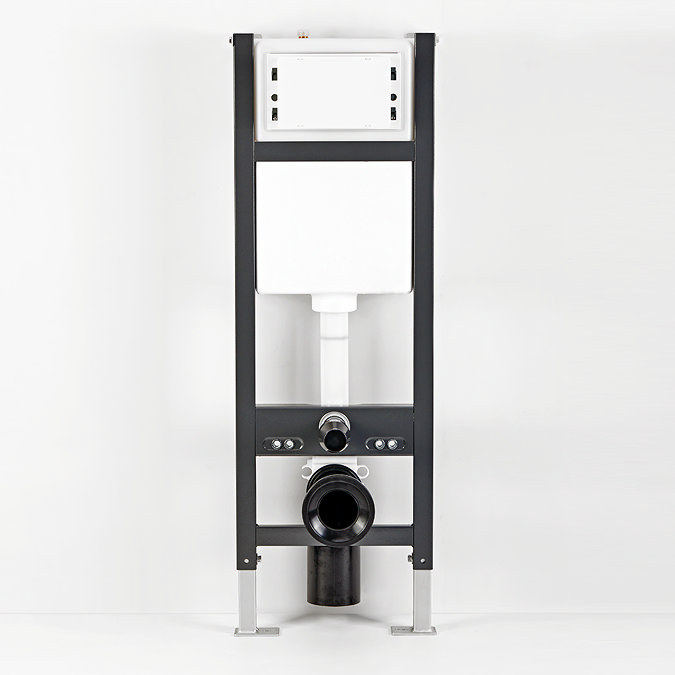

The Trafalgar Toilet Frame is a durable, space-saving solution for wall-hung pans, offering reliable support and sleek design. Made from corrosion-resistant materials, it ensures long-term stability and hassle-free installation. Adjustable in height and depth, it fits seamlessly into a variety of bathroom layouts, making it ideal for both renovations and new builds.

The integrated dual flush cistern promotes water efficiency, allowing users to select between a reduced flush for liquid waste and a full flush for solids. Insulated to reduce condensation and noise, the moulded tank is built for performance and easy maintenance.

Paired with the Trafalgar brushed brass flush plate, this system adds a refined, contemporary touch. Featuring a rectangular design with two round push buttons, the flush plate blends minimalist style with practical functionality. Manufactured from high-impact ABS, it complements modern interiors while supporting sustainability.

Product Details:

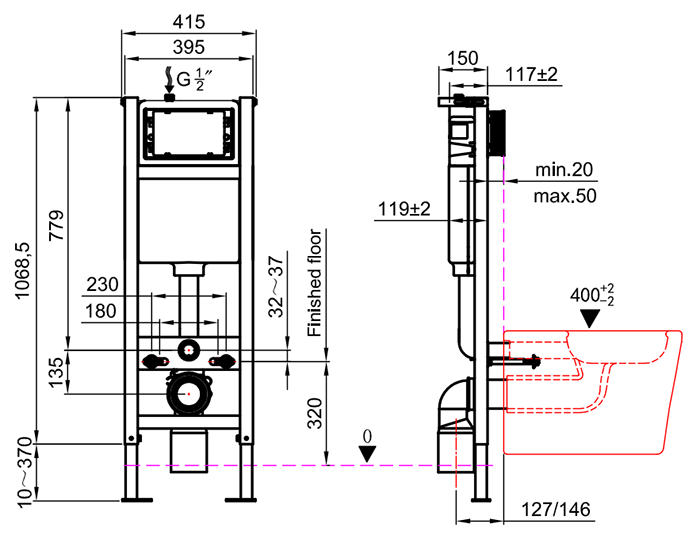

Frame & Cistern:

• Height: 1078–1438mm (approx.)
• Width: 415mm
• Depth: 170–200mm
• Flush Options: Dual flush – Full: 6–7.5L / Half: 2.5–4L
• Fill Valve Pressure: 0.2–16 bar
• Support Weight: Up to 400kg
• Installation: Built-in or plasterboard wall
• Tank Material: Durable moulded HDPE
• Features:
• Water-saving dual flush valve
• Insulated to reduce condensation and noise
• Easy access for maintenance
• Adjustable height and depth
• Includes brackets and WC bend
• Compatible with a wide range of wall-hung pans
• Tested to EN 14055
• UKCA marked
• ISO 9001:2015 registered manufacturer

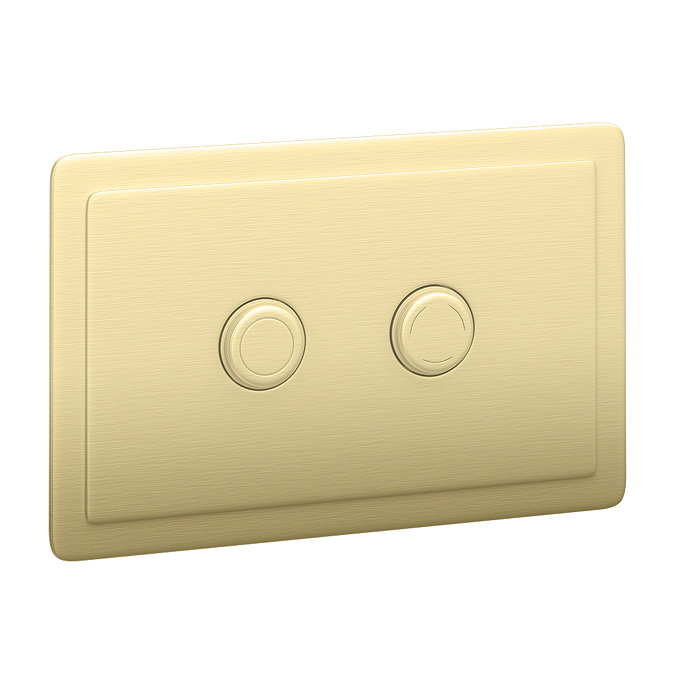

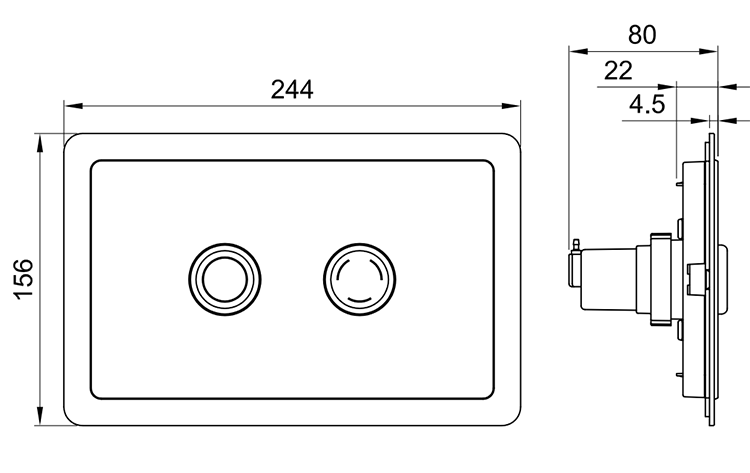

Flush Plate:

• Size: 244 × 156mm
• Thickness: 4.5mm
• Colour: Brushed Brass
• Material: High-impact ABS
• Button Shape: Round
• Style: Classic
• Flush Type: Dual flush – half/full
• Compatibility: Suitable for Arezzo standard and compact WC frames

All measurements are approximate. Product images are for illustrative purposes only and may differ from the actual item.

Guarantee:

Tank: 5 Years
Fill & Flush Valves: 2 Years
Flush Plate: 12 Months
