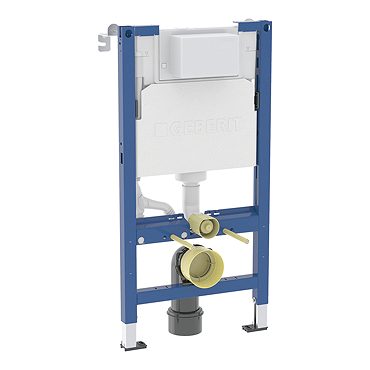

Geberit Duofix 980mm Install Frame With Alpha 120mm Concealed Cistern

Geberit Duofix 980mm Install Frame With Alpha 120mm Concealed Cistern - 458.036.00.2

Designed to last, Geberit Alpha frames incorporate tried and tested materials that will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution. Every blow-moulded cistern is factory-made and leak-tested, ensuring maximum operational reliability without unnecessary sealings or leakage. This product features a dual flush with volume adjustment options to help save water.

Compatible with Geberit Alpha01 Flush Plates.

Features:

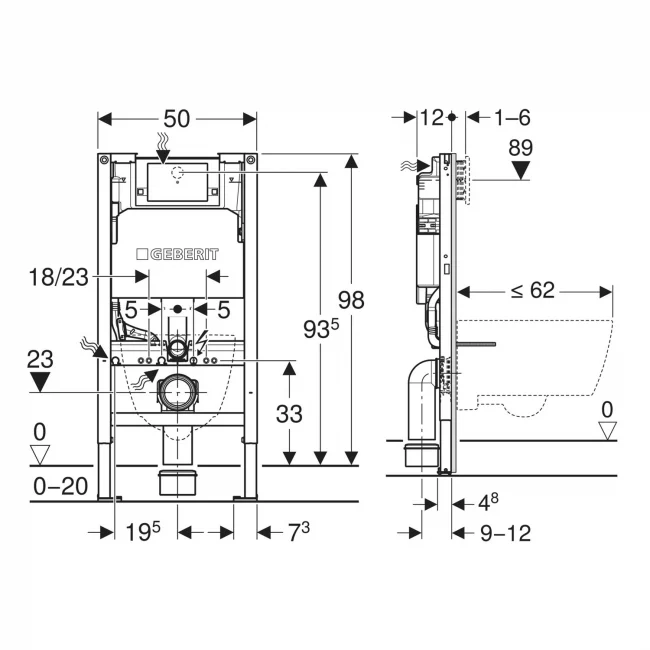

• Size: Height: 980mm, Width: 500mm, Depth: 120mm
• Dual Flush: Volume adjustment options to help save water
• Compatibility: Compatible with Geberit Alpha01 flush buttons
• Spare Parts: Guaranteed availability of function-maintaining spare parts for 25 years
• Leakproof: Due to one-piece blow-moulded cistern
• Design: Specifically for installation in furniture only

Application Purposes:

• For installation in part-height pre-wall installations
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62cm
• For floor constructions 0–20cm

Characteristics:

• Self-supporting frame, powder-coated
• Frame with ø 9mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Feet adjustable 0–20cm
• Foot plates made of plastic
• Foot plate depth suitable for installation in U-profiles UW 50
• Connection bend can be mounted without tools
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Fastening option for electrical connection

Technical Data:

• Maximum Operating Temperature, Water: 25°C
• Flush Volume, Factory Setting: 5.8 and 3L
• Flush Volume, Large Adjustment Range: 4.5 / 6 / 7.5L
• Flush Volume, Small Adjustment Range: 3-4L
