Duravit Thermostatic Square Concealed Shower Set with Fixed Head & Shower Kit with Outlet - Chrome

Duravit Thermostatic Square Concealed Shower Set with Fixed Head & Shower Kit with Outlet - Chrome

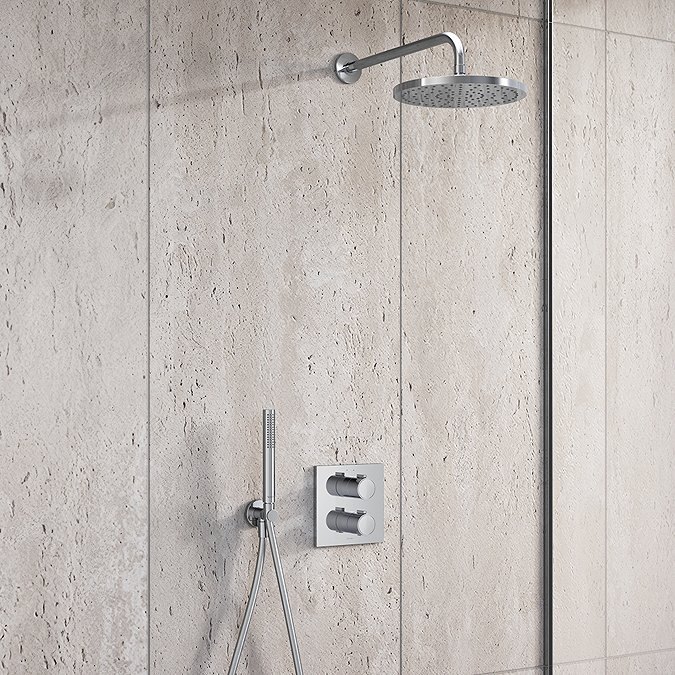

The Duravit Thermostatic Square Concealed Shower Set with Fixed Head & Shower Kit with Outlet in Chrome consists of a fixed shower head, a wall-mounted shower arm, and shower kit complete with a handheld shower and hose. This integrated set offers a comprehensive showering solution, featuring a thermostatic mixer for precise temperature control and a diverter to easily switch between the overhead rainfall shower and the flexible handheld shower for a versatile and comfortable showering experience. The concealed installation of the mixer provides a sleek, minimalist aesthetic, while the chrome finish ensures a modern and cohesive look for any bathroom.

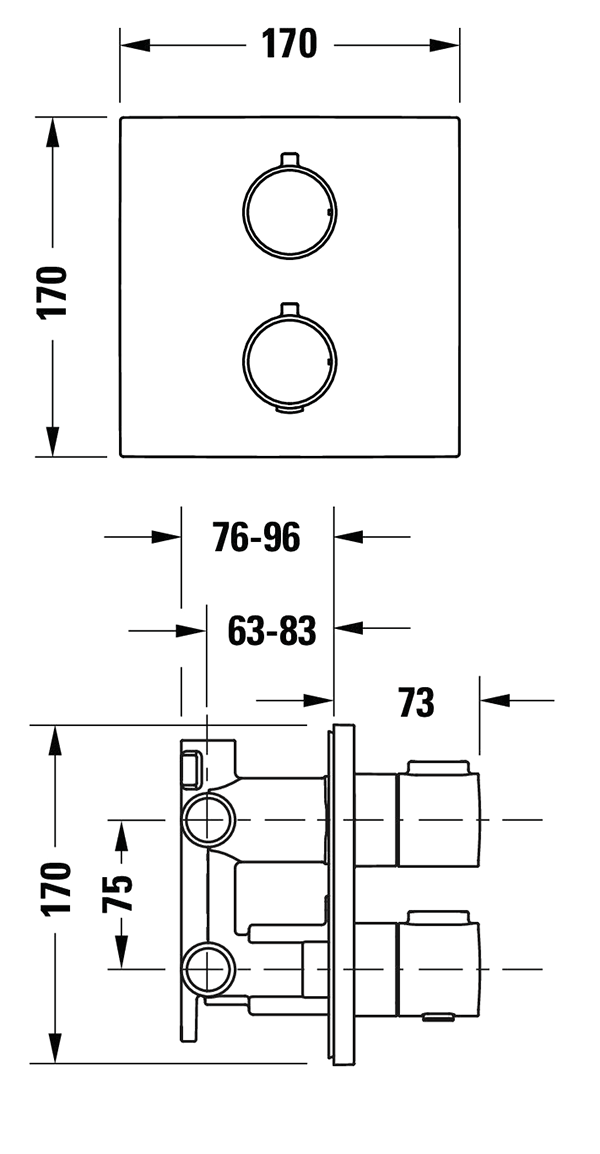

Shower Valve Details

• 1/2" water supply connection
• Easy to clean and durable chrome finish
• For concealed installation: installed inside the wall, reducing visible parts to the essentials
• For use with a continuous-flow heater
• Integrated 100.4°F safety stop protects against scalding
• Thermostatic cartridge ensures a consistent water temperature even with changing water pressure
• With two handles
• Thermostat cartridge
• Safety lock at 38 °C
• Outlet/Diverter: Shut-off and diverter valve
• Recommended operating pressure: 1 - 5 bar
• Flow rate (3 bar): 24 l/min
• Escutcheon shape: Square
• Including functional unit
• Including trim parts

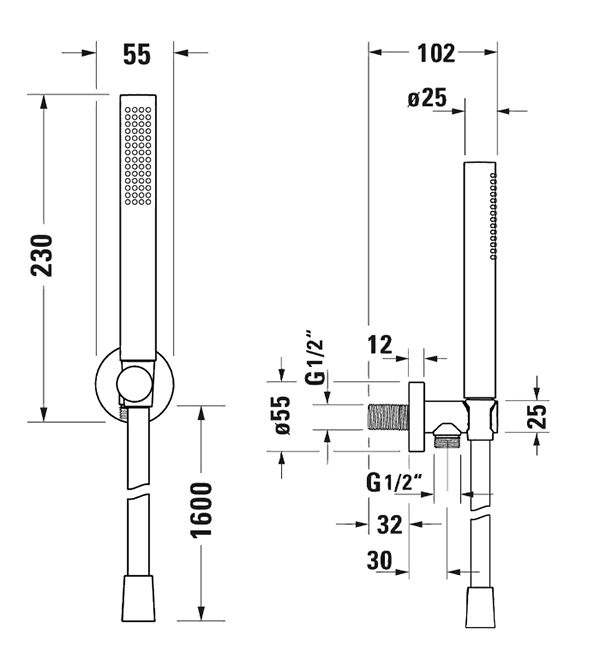

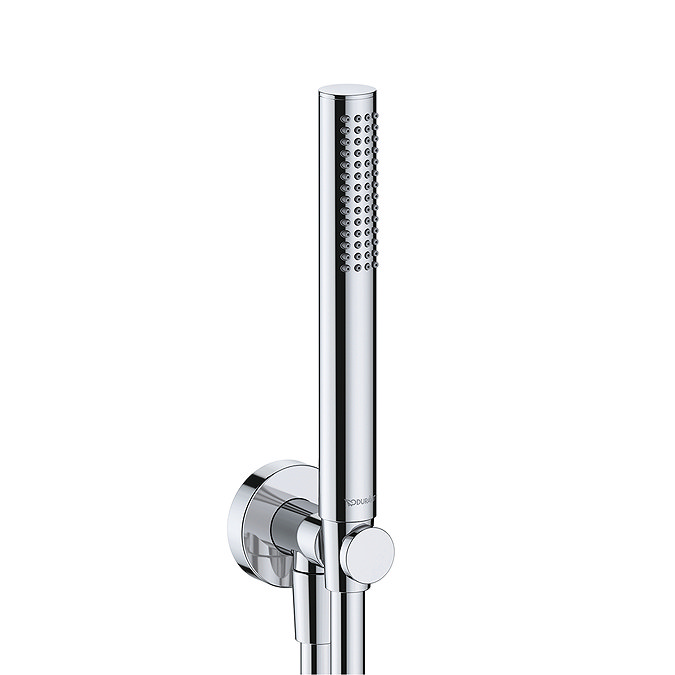

Shower Kit Details

• Check valve in hose connection
• Easy to clean and durable chrome finish
• Wall installation
• Material: Brass
• Connection thread 1/2"
• Includes: wall outlet
• Shower hose 1600 mm and stick hand shower

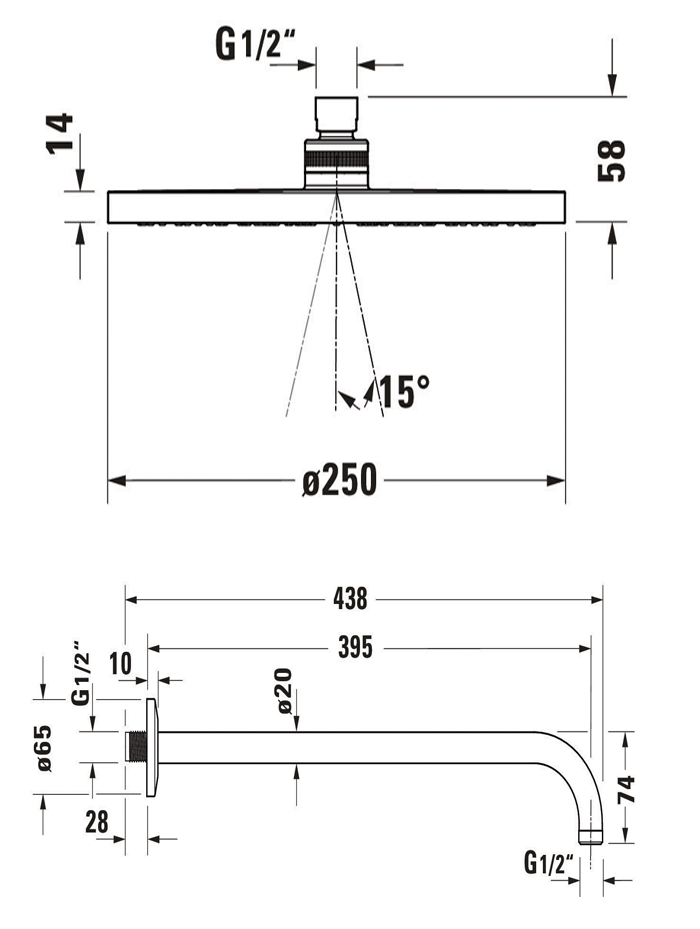

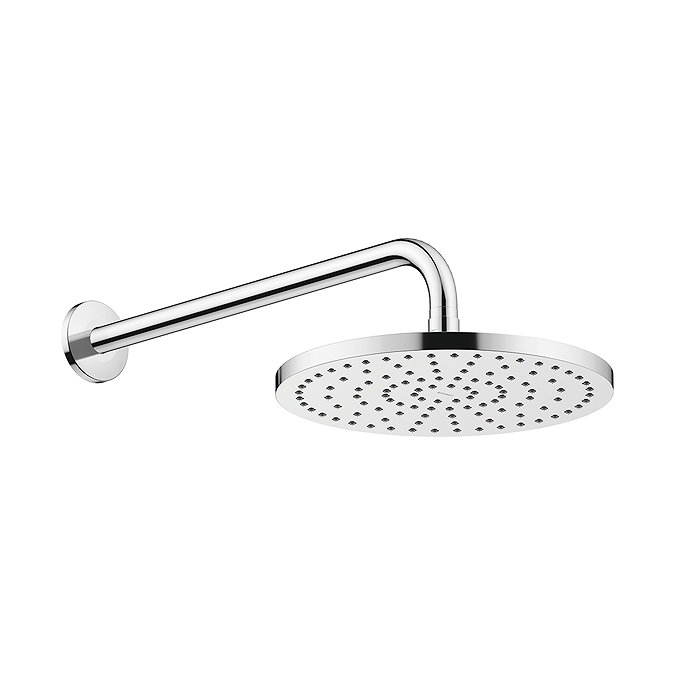

Shower Head & Arm Details

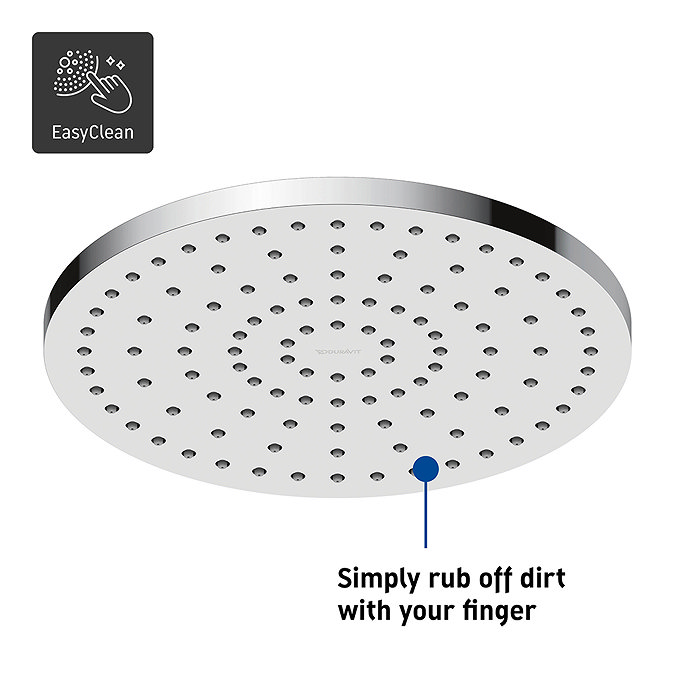

• Easy cleaning thanks to silicone nozzles: remove limescale deposits with gently wiping
• Showerhead angle adjustable (+/- 20°)
• Wall installation
• Material: Metal / Plastic
• Head Diameter: 250mm
• Arm Length: 410mm
• Spray mode: Rain
• Flow rate (3 bar): 9 l/min

5 Year Guarantee

All measurements are approximate.

Product images are for illustrative purposes only.

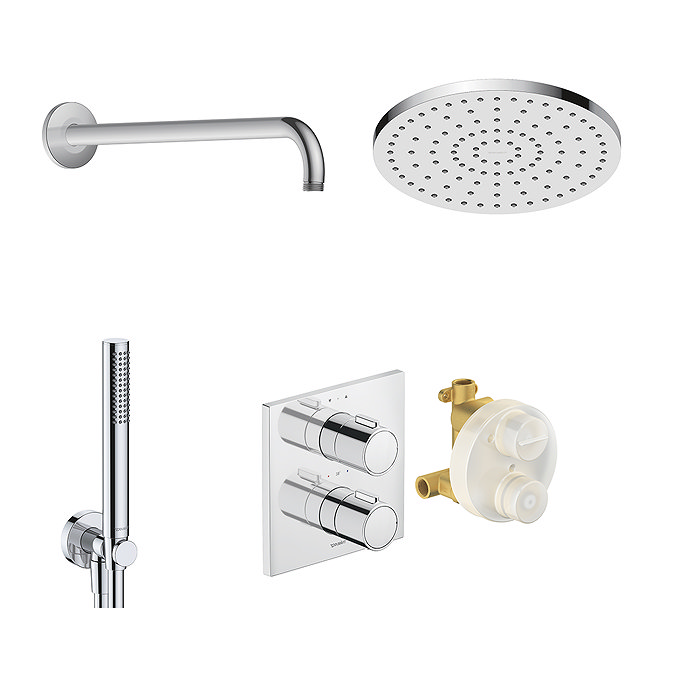

Comprises

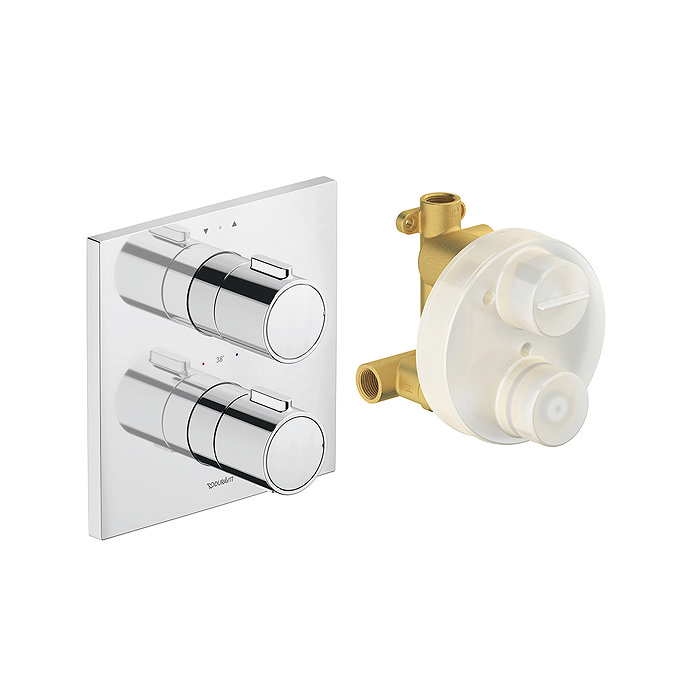

Thermostatic Square Concealed Shower with Installation Set - Chrome - TH4200007010
Stick Hand Shower Set with Wall Outlet - Chrome - UV0762002010
Showerhead 1jet 250mm MinusFlow - Chrome - UV0662018010

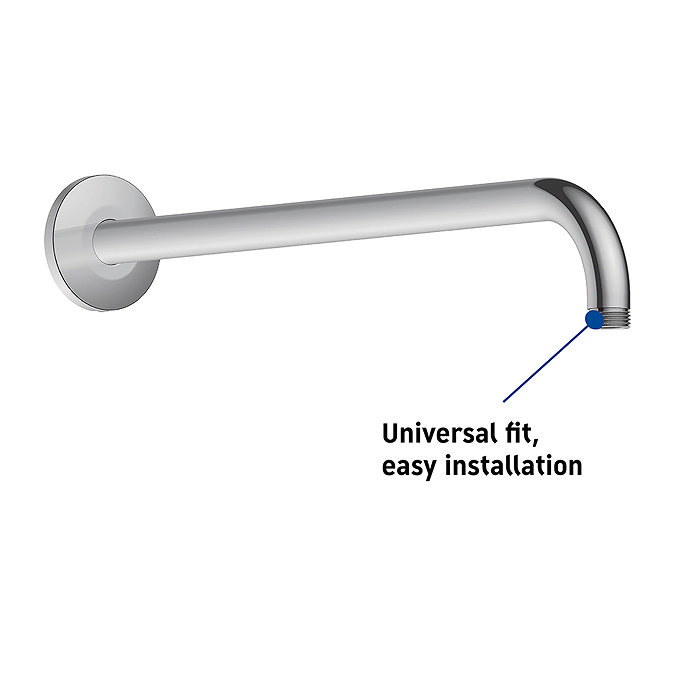

410mm Wall Mount Shower Arm - Chrome - UV0670028010
