Duravit Thermostatic Round Concealed Shower Set with Fixed Head & Slider Rail Kit - Chrome

Duravit Thermostatic Round Concealed Shower Set with Fixed Head & Slider Rail Kit - Chrome

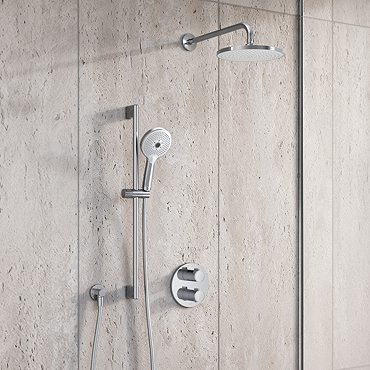

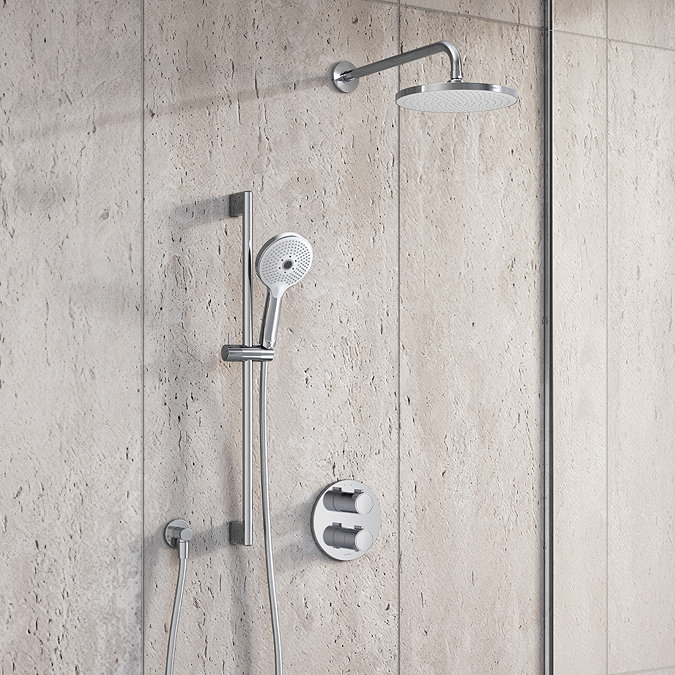

The Duravit Thermostatic Round Concealed Shower Set with Fixed Head & Slider Rail Kit in Chrome is a sleek and modern solution for your bathroom. The set includes a round fixed shower head with a wall-mounted arm, providing a luxurious rainfall experience. Complementing this is a practical slider rail kit with a multi-function hand shower, offering flexibility and convenience for various showering needs. At the heart of the system is a thermostatic concealed shower mixer, ensuring precise temperature control and a safe, comfortable showering experience. The mixer features two round controls for easy adjustment of water flow and temperature. The set is completed with a wall outlet, maintaining the clean and minimalist aesthetic of a concealed installation.

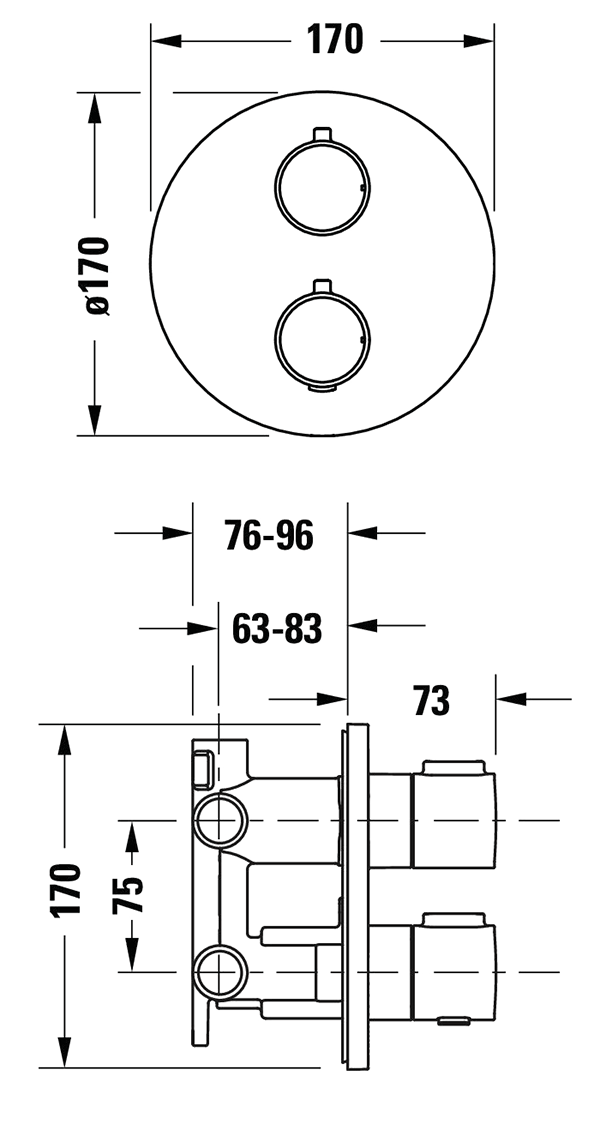

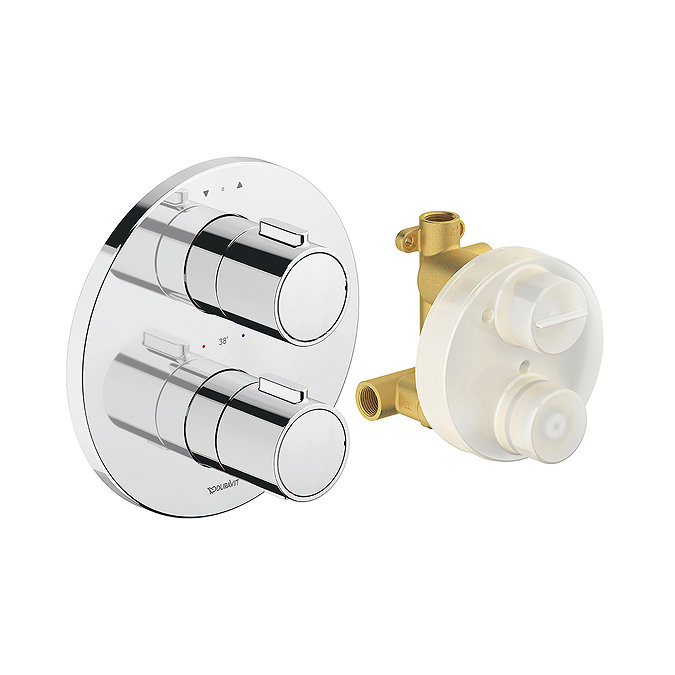

Shower Valve Details

• 1/2" water supply connection
• Easy to clean and durable chrome finish
• For concealed installation: installed inside the wall, reducing visible parts to the essentials
• For use with a continuous-flow heater
• Integrated 100.4°F safety stop protects against scalding
• Thermostatic cartridge ensures a consistent water temperature even with changing water pressure
• With two handles
• Thermostat cartridge
• Safety lock at 38 °C
• Outlet/Diverter: Shut-off and diverter valve
• Recommended operating pressure: 1 - 5 bar
• Flow rate (3 bar): 24 l/min
• Escutcheon shape: Round
• Including functional unit
• Including trim parts

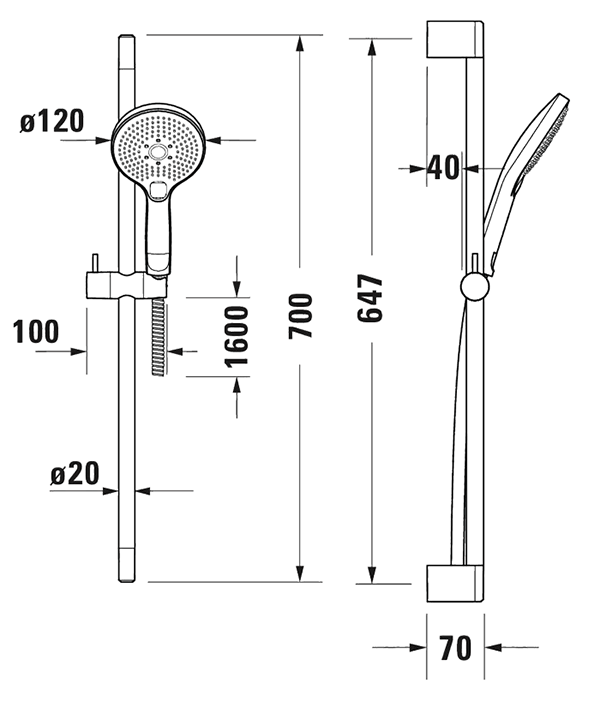

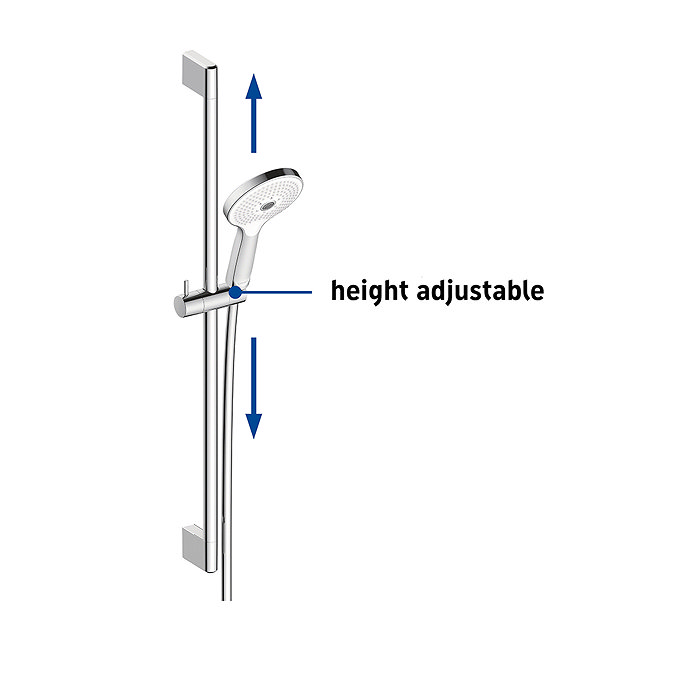

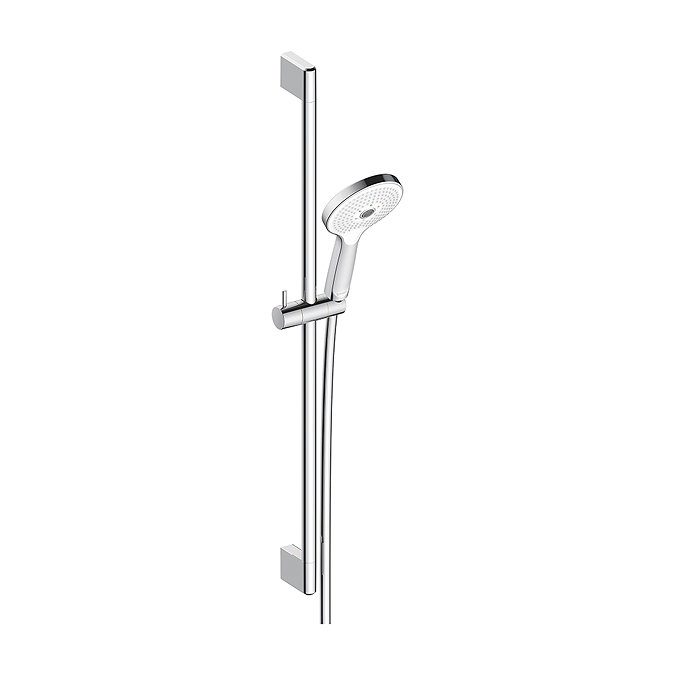

Slider Rail Kit Details

• Easy cleaning thanks to silicone nozzles: remove limescale deposits with gently wiping
• Easy to clean and durable chrome finish
• Spray mode can be changed at the push of a button (click! changeover mechanism)
• The concealed mounting set ensures a harmonious look
• Wall installation
• Incl. shower hose
• Length shower hose: 1600 mm
• Incl. shower rail
• Length shower rod: 700 mm
• Incl. hand shower
• Spray mode: Rain, Pulse, Mono,
• Spray mode selection: Push button
• Height: 700 mm

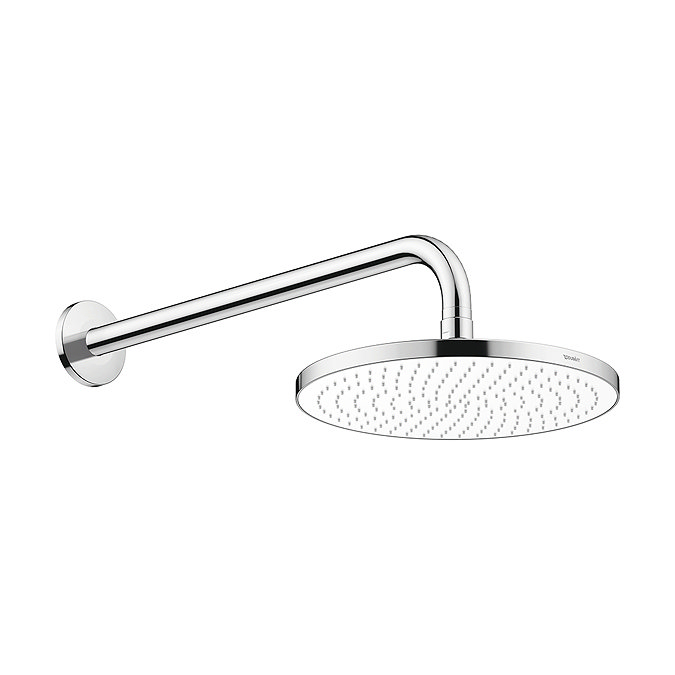

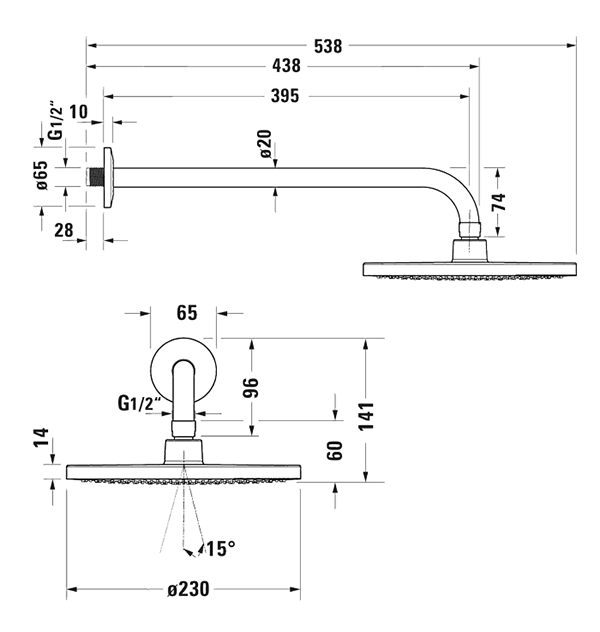

Shower Head & Arm Details

• Easy cleaning thanks to silicone nozzles: remove limescale deposits with gently wiping
• Showerhead angle adjustable (+/- 20°)
• Wall installation
• Material: Metal / Plastic
• Head Diameter: 230mm
• Arm Length: 438mm
• Flow rate (3 bar): 9 l/min

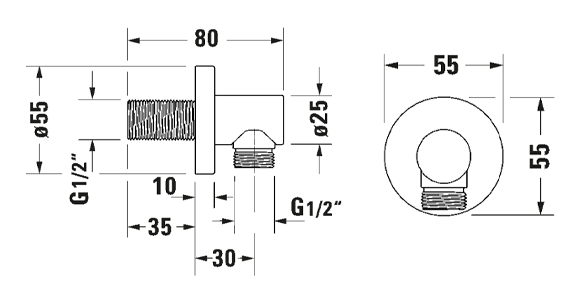

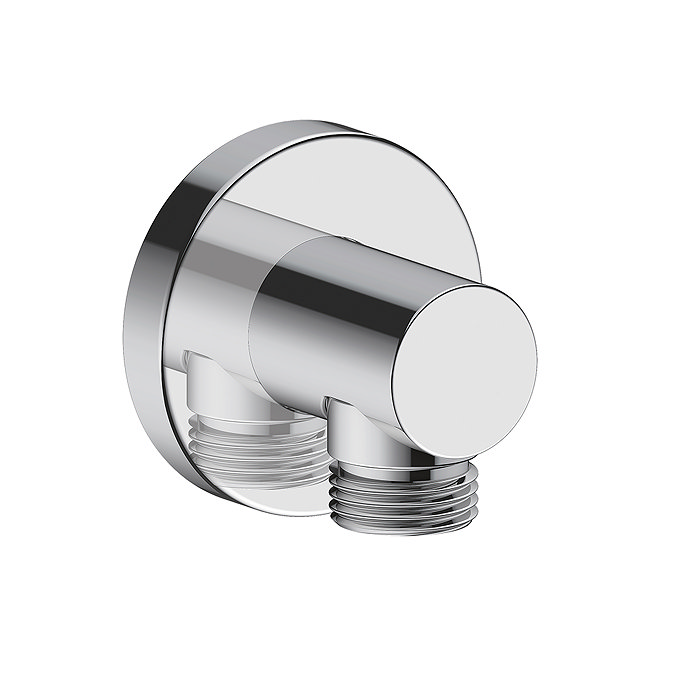

Wall Outlet Details

• Chrome finish
• 1/2" water supply connection
• Wall installation
• Dimensions: 55 x 55 mm
• Shape: Round
• Non-return valve: Individually, in the hose connection
• Escutcheon shape: Round
• Hand shower holder: Fixed

5 Year Guarantee

All measurements are approximate.

Product images are for illustrative purposes only.

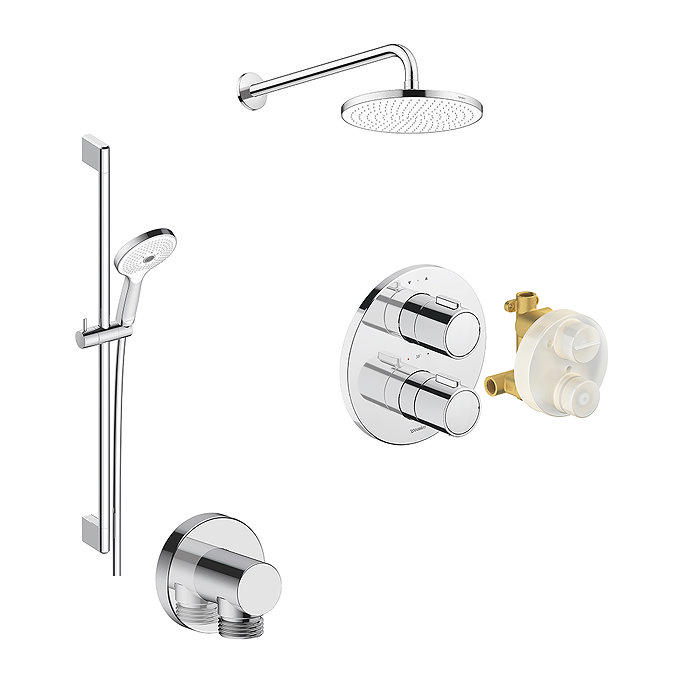

Comprises

Thermostatic Round Concealed Shower with Installation Set - Chrome - TH4200008010
Shower Set with 3jet Click! 120mm Hand Shower - Chrome - UV0680003010
Showerhead 1jet 230mm & 410mm Shower Arm - Chrome - UV0752002005
Round Wall Outlet - Chrome - UV0630008010
