Chatsworth 1500 x 700mm Oval Shower Curtain Rail with 200mm Rose + Exposed Shower Valve
Part No:CHTKT1
Discontinued
Product Information

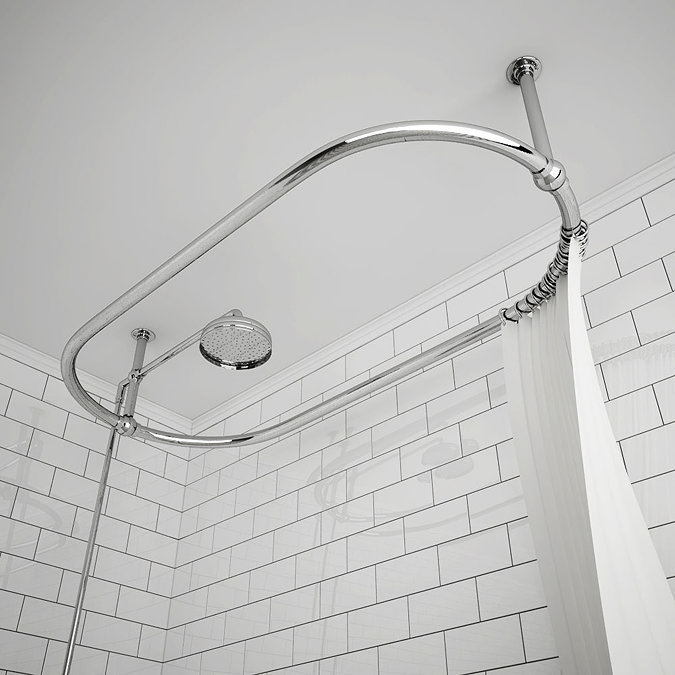

Chatsworth Ceiling Mounted Traditional 1500 x 700mm Oval Shower Curtain Rail with 200mm Rose + Exposed Shower Valve
This stylish period looking chrome plated oval shower curtain rail is ideal for creating a enclosure over your bath, supplied with a traditional styled twin exposed shower valve which offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection.
This kit incorporates a stylish 200mm overhead rainfall shower rose, this shower kit enhances the appearance of any traditional bath tub. The curtain rail is connected to the ceiling by classic traditional ball joint ceiling supports.
Ceiling supports are not adjustable and supplied at a fixed length.
Curtain Rail + Shower Head Details
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
All measurements are approximate
Images are for illustrative purposes (Bath + Tap not included.)
Comprises
(1) Chatsworth Traditional 1500 x 700mm Oval Shower Curtain Rail with Shower Rose
(1) Chatsworth 1928 Traditional Twin Exposed Shower Valve
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
This stylish period looking chrome plated oval shower curtain rail is ideal for creating a enclosure over your bath, supplied with a traditional styled twin exposed shower valve which offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection.
This kit incorporates a stylish 200mm overhead rainfall shower rose, this shower kit enhances the appearance of any traditional bath tub. The curtain rail is connected to the ceiling by classic traditional ball joint ceiling supports.
Ceiling supports are not adjustable and supplied at a fixed length.
Curtain Rail + Shower Head Details
- Rail Size: 1500 x 700mm
- Shower Head Size: 200mm
- Height of Downpipe: 1500mm
- Length of Ceiling Supports: 378mm
- Flange Width: 72mm
- Shower Arm Length: 520mm
- Colour/Finish: Polished Chrome
- Style: Traditional
- High Quality Design and Build
- Steel Construction
- Rainfall effect traditional Shower head
- Minimum water pressure: 0.5 Bar
- Ceiling Mounted
- 2 x Ball Joint and Flange Ceiling Supports
- Supply: Suitable for all plumbing systems
- Comes Complete with Fixing Screws
- 18mm Downpipe: Suitable for shower valve top outlet 3/4" BSP
- The rigid riser can be trimmed down, but this does void the warranty.
- Projection: 101mm
- Height: 178mm
- Type: Twin Exposed Shower Valve
- Colour/Finish: White/Chrome
- Manufactured from solid brass
- Smooth Operation with Quality Components
- Water Pressure: 0.5 bar to 5 bar
- Operates a single shower accessory: 1 Outlet
- Classic body with traditional white ceramic lever and cross head handles
- Suitable for modern pressurised plumbing systems.
- 150mm between pipe inlet centres
- Outlet: 15 mm (1/2" BSP) / 18mm (3/4" BSP) (supplied with adaptor)
- Hot water temperature 55 to 85 Degrees
- Should a pump be required we recommend a universal or negative head pump
- Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
All measurements are approximate
Images are for illustrative purposes (Bath + Tap not included.)
Comprises
(1) Chatsworth Traditional 1500 x 700mm Oval Shower Curtain Rail with Shower Rose
(1) Chatsworth 1928 Traditional Twin Exposed Shower Valve
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
No reviews about this product yet
How We Gather Reviews
3 Questions
Can the shower arm length be trimmed?
Asked by Rebecca
ANSWER
Customer Services Team. replied on 4th May 2022
Hi,
Yes, you can adjust the shower arm as it has a compression connection.
Thanks.
Customer Services Team.
Can the shower head be connected to an electric shower unit. Water supply in house not sufficient to supply shower and no space to fit a pump so electric only option. Bath is however freestanding so need something like Chatsworth.
Asked by Peter
ANSWER
Customer Services Team. replied on 4th May 2022
Hi,
We would recommend you enlist the help of a qualified plumber to advise accordingly as we would be unable to offer advice on a installation.
Thanks.
Customer Services Team.
Can the shower valve divert to a hand held head also
Asked by Daniel
ANSWER
Nathan replied on 26th May 2021
Hello,
Thank you for your question.
Unfortunately not, this item is only one outlet,
We can however look into the possibility of a custom package and changing this valve.
The value would need to be /chatsworth-1928-traditional-triple-exposed-thermostatic-shower-valve
If you do require this please email the request to info@victorianplumbing.co.uk
Kind Regards.
Showing 3 of 3 questions
