Casca Wall Hung Bathroom Suite

Casca Wall Hung Bathroom Suite

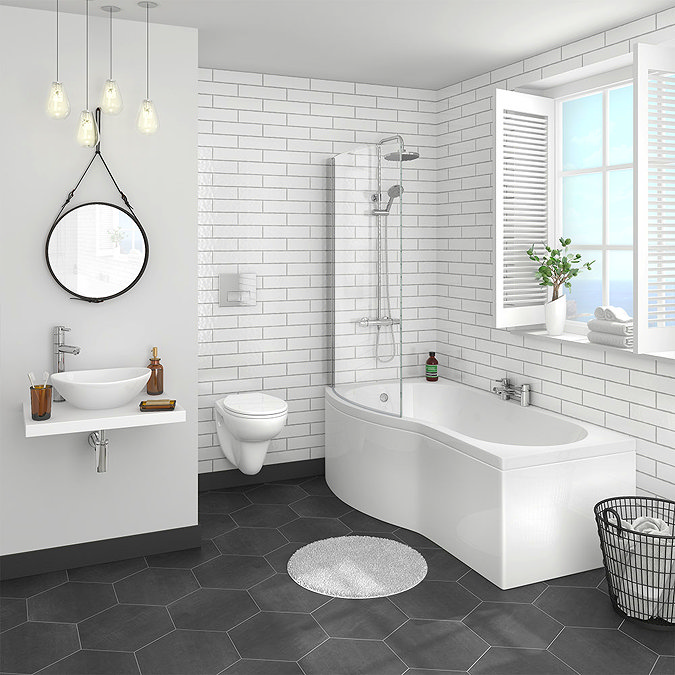

The Casca wall hung bathroom suite brings great style to any modern bathroom setting. Without any compromise on style and good looks the wall hung option provides a bathroom design solution delivering a completely clear and open floor area.

Features a 1700mm B-Shaped Shower Bath & Curved Screen, manufactured from high quality gloss acrylic. The curved screens are designed to complement modern curved bath designs, and provide the perfect solution where space is not available for a separate enclosure.

The stylish wall hung countertop shelf with Casca 410mm wide oval shaped countertop basin is perfect for creating a boutique feel in your bathroom. Inspired by organic shapes the Casca basin comes with no tap holes and is to be used alongside a counter or wall mounted outlet. The shelf is supplied undrilled to allow flexible positioning for your basin and tap.

Please note, optional bath end panel (BBTEP) sold separately.

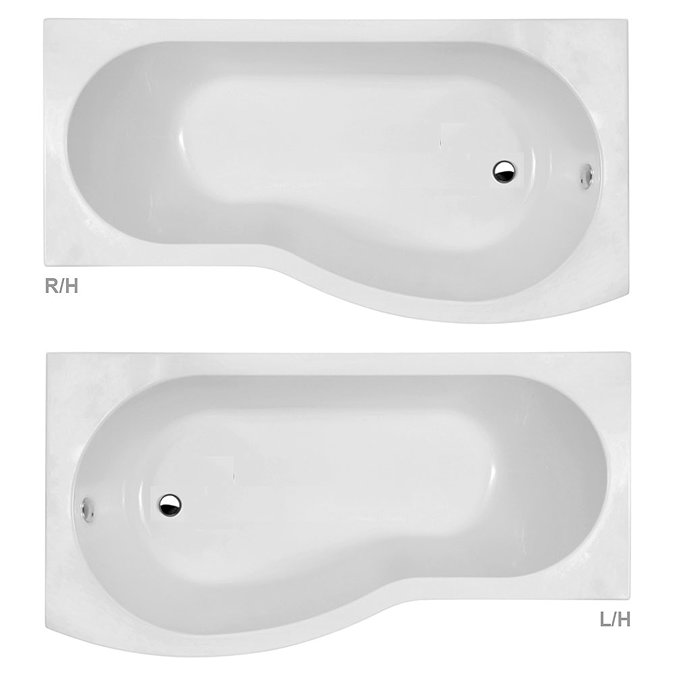

Available in Left- or Right-hand options.

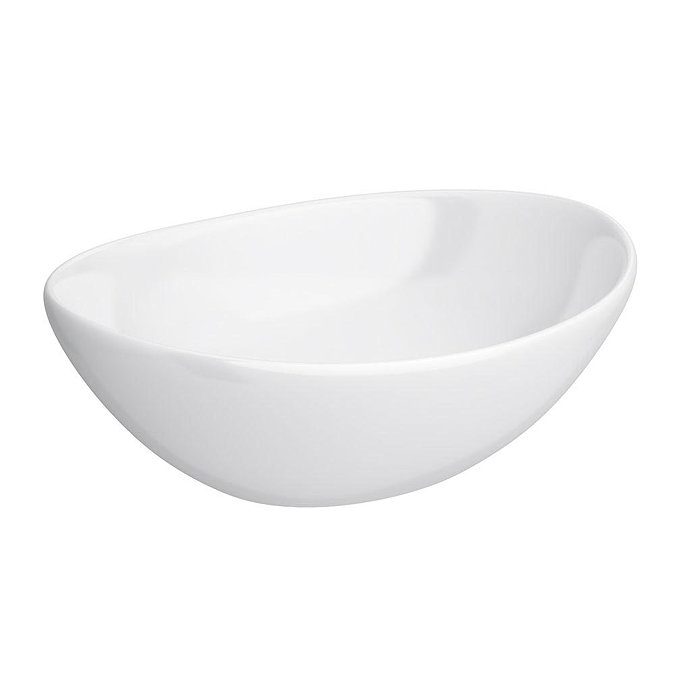

Countertop Basin Details

• Wide: 400mm
• Depth: 330mm
• Height: 145mm
• Product Type: Countertop
• Shape: Oval
• Material: Ceramic
• Colour/Finish: White Gloss
• Tap Holes: 0
• No overflow - for use with unslotted basin wastes
• Some small dimensional variations may occur due to manufacturing tolerances.

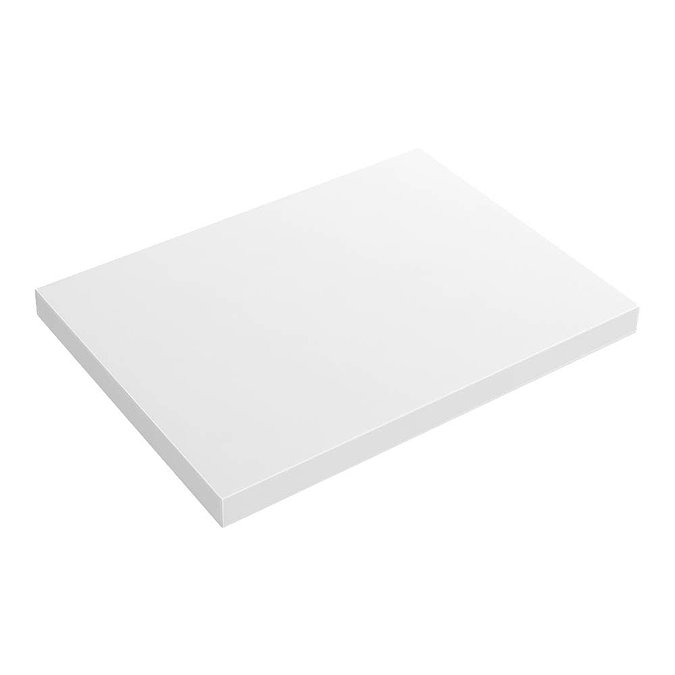

Shelf Details

• Width: 600mm
• Depth: 450mm
• Height: 45mm
• Colour: White
• Type: Wall Hung Countertop Basin Shelf
• Supplied with Concealed Brackets
• Undrilled - to allow flexible positioning for your basin and tap.

Wall Hung Toilet Details

• Dimensions: W355mm x H385mm x D530mm
• Clean elegant contemporary design
• Material: Ceramic
• Colour/Finish: Gloss White
• Type: Wall Hung
• Soft closing toilet seat with adjustable hinges
• Guarantee: 5 Year

Dual Flush Concealed WC Cistern with Wall Hung Frame Details

• Height: 1078-1438mm (Approx.)
• Width: 415mm
• Depth: 170-200mm
• Full flush: 6-7.5L, Half flush: 2.5-4L
• Fill valve pressure: 0.2-16 bar
• Metal frame support weight: 400KG
• Designed to provide stable support for wall-hung WC pans
• Built-in or plasterboard wall installation
• Dual flush cistern

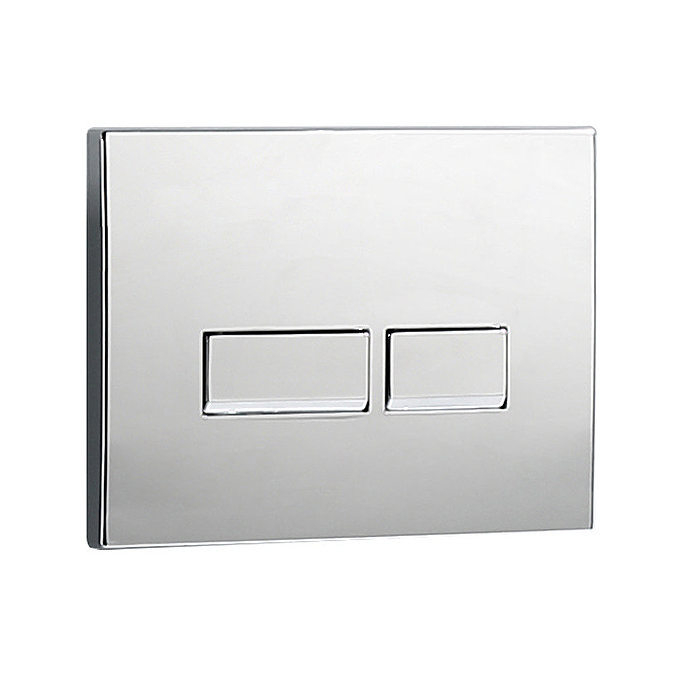

• Flush plate size: 242 x 160mm
• Flush plate thickness: 10mm
• Flush plate colour: Polished Chrome
• Flush plate material: Manufactured from high impact, tough ABS
• Button shape: Square
• Style: Modern
• Water saving dual-flush valve
• Insulated against condensation and reduces noise from water tank
• Durable moulded tank
• Easy access for maintenance
• Hassle-free installation
• Made from durable high-quality materials
• Adjustable height and depth
• Sleek and minimalist design.
• Designed to be compatible with a wide range of wall hung pans
• Seamless integration: The fixing frame is designed to seamlessly integrate with your wall hung pan, creating a clean and streamlined look in your bathroom.
• Includes brackets and WC bend
• Guarantee: 5 Years for tank and 2 Years for fill valve and flush valve

Cistern

• Tested in accordance with EN 14055
  UKCA Marked
  ISO9001:2015 Registered Manufacturer

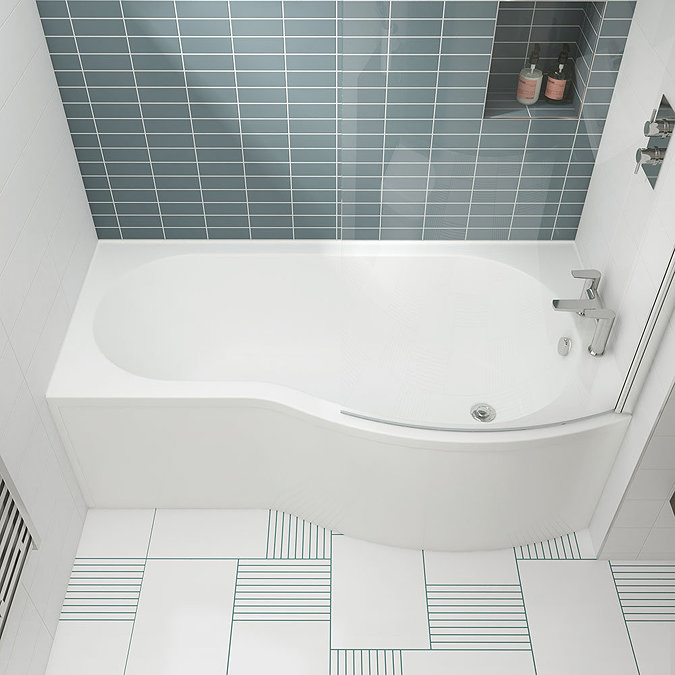

Shower Bath Details

• B-Shaped Shower Bath
• Dimensions: width 1700 x (depth at widest point) 900 / depth 736mm
• Bath Volume: 240 Litres
• Clean elegant contemporary design
• Choice of Right- or Left-hand bath tube
• High quality build
• Practical design solution
• White Gloss Acrylic
• No tap holes
• White Gloss Acrylic Side Panel Included
• Supplied with Leg Set
• Guarantee: 5 Year

Curved Bath Screen Details

• Height: 1435mm
• Width: 850-870mm
• Manufactured to the Highest Standards
• Polished chrome
• Reversible
• Hinged bath screen
• Metal caps
• 5mm toughened safety glass
• Guarantee: 5 Year

All measurements are approximate

Pictures shown are for illustration purposes only.

Tap holes must be drilled by customer

Taps, Bath End Panel (BBTEP) and any other ancillary items shown in photograph not included.

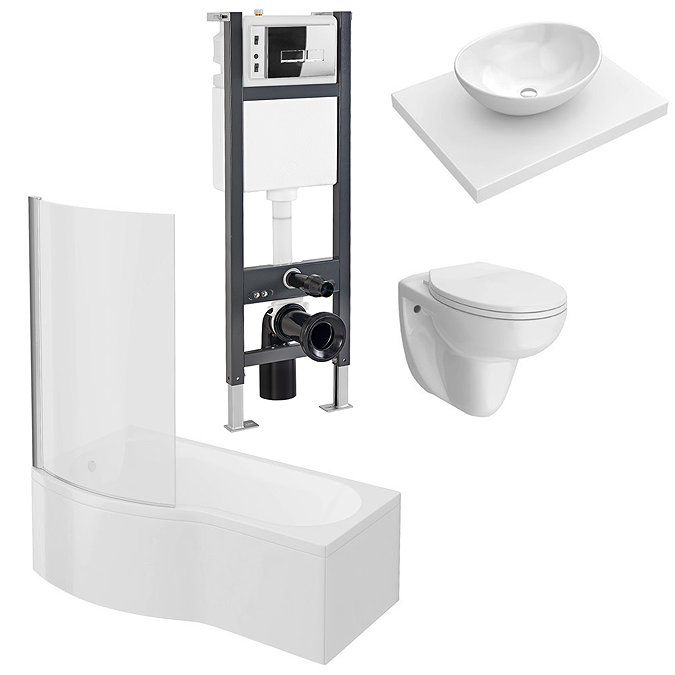

Comprises

(1) Nova 600 x 450mm White Wall Hung Slimline Countertop Basin Shelf
(1) Casca Oval Countertop Basin 0TH - 400 x 330mm
(1)  Dual Flush Concealed WC Cistern with Wall Hung Frame
(1) Wall Hung Pan
(1) Standard Soft Close Toilet Seat
(1) 1700mm B-Shaped Shower Bath with Leg Set
(1) B-Shaped Acrylic Bath Front Panel
(1) Curved Bath Screen
