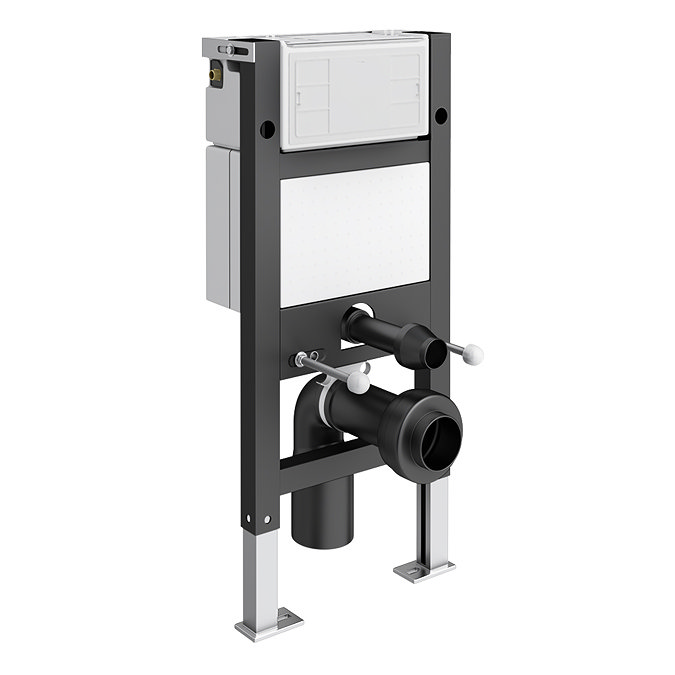

Arezzo Compact Concealed Cistern & Wall Hung WC Frame

Arezzo Compact Concealed Cistern & Wall Hung WC Frame (Excluding Flush Plate)

The Arezzo Compact Concealed Cistern & Wall Hung WC Frame, excluding the flush plate, is a contemporary bathroom installation that epitomises modern design and functionality. This system is ingeniously crafted to maximise space efficiency and maintain a minimalist aesthetic by concealing the cistern within the wall. The frame, constructed from robust metal with adjustable feet, allows for versatile height customisation during installation. Equipped with a durable insulated plastic cistern, the unit offers a dual-flush mechanism, promoting water conservation. Ideal for those seeking a clean and uncluttered bathroom environment, the Arezzo setup is a testament to the seamless integration of style and practicality in modern home fixtures.

*Supplied without flush plate.

Product Details:

• Height: 755-1055mm (Approx.)
• Width: 415mm
• Depth: 166mm
• Frame Height Adjustment: 0-300mm
• Full Flush: 6-7.5L, Half Flush: 2.5-4L
• Fill valve pressure: 0.2-16 bar
• Metal Frame Support weight: 400KG
• Compatible with all wall-hung WC pans
• Built-in or plasterboard wall installation
• Button Shape: Round
• Style: Modern
• Top or front flush installation
• Water saving dual-flush valve
• Insulated against condensation and reduces noise from water tank
• Durable moulded tank
• Easy access for maintenance
• Minimalist compact slimline design
• Suitable for bathroom furniture and concealed framework
• This fixing frame has a small, compact design making it perfect for under windows or inside low-wall installations.
• Includes brackets and WC bend
• Guarantee: 5 Years for tank and 2 Years for fill valve and flush valve
• Flush plate not included

Cistern

• Tested in accordance with EN 14055
  UKCA Marked
  ISO9001:2015 Registered Manufacturer

Please note that all images are for illustration purposes only and all measurements are approximate.

Guarantee: 5 Years for tank and 2 Years for fill valve and flush valve.
