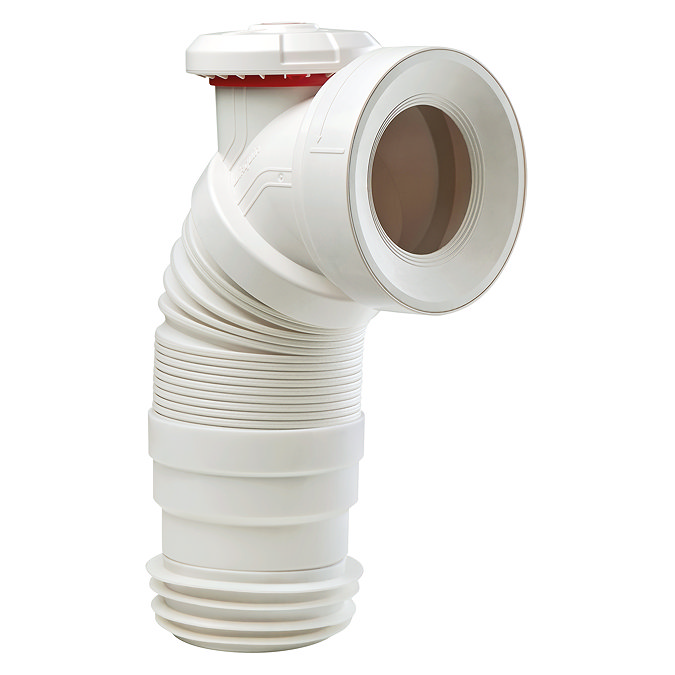

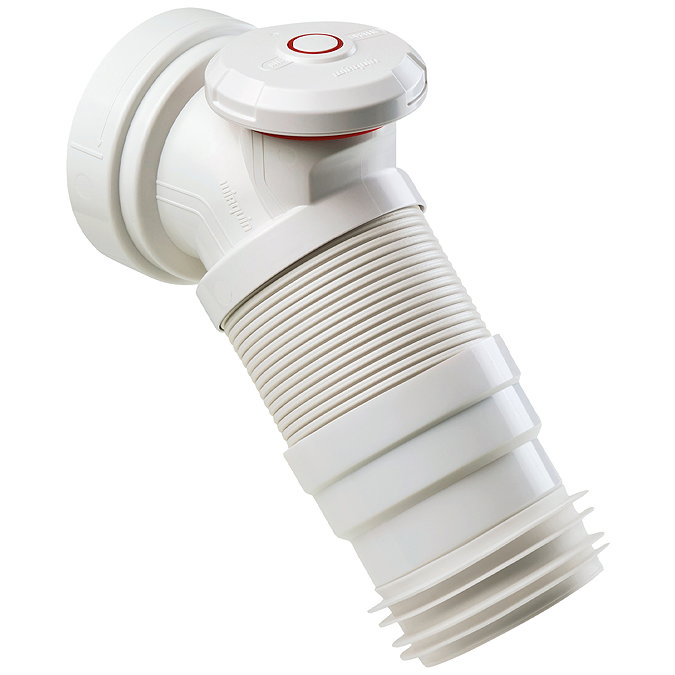

Wirquin Airconnect 2-in-1 Pan Connector & Air Admittance Valve

Wirquin Airconnect 2-in-1 Pan Connector & Air Admittance Valve

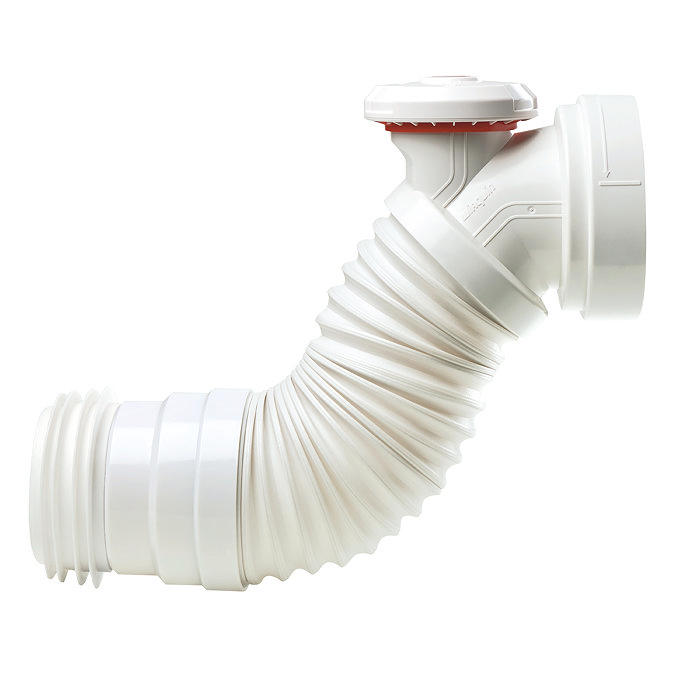

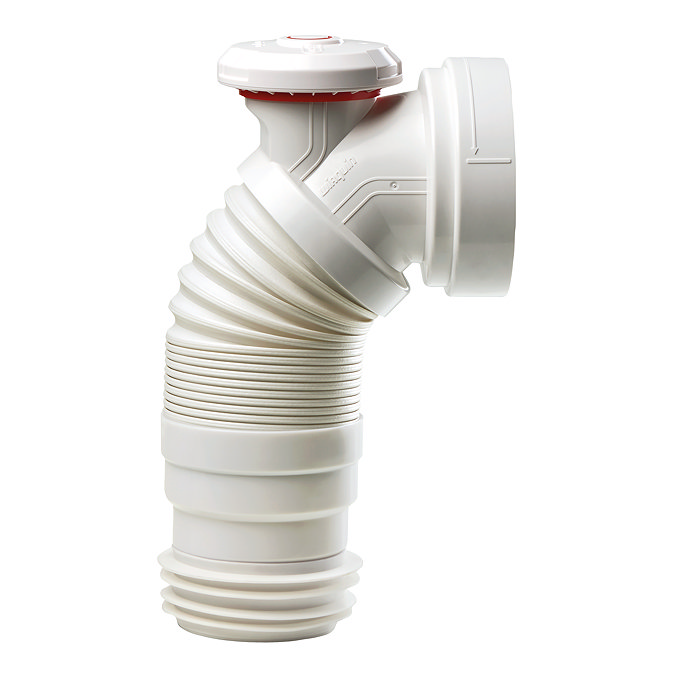

Make toilet installation quicker, quieter, and more reliable with the Wirquin Airconnect 2-in-1 WC Pan Connector. Combining a flexible WC pan connector with an integrated air admittance valve, this innovative solution helps improve pipe ventilation while delivering efficient waste drainage in one compact fitting.

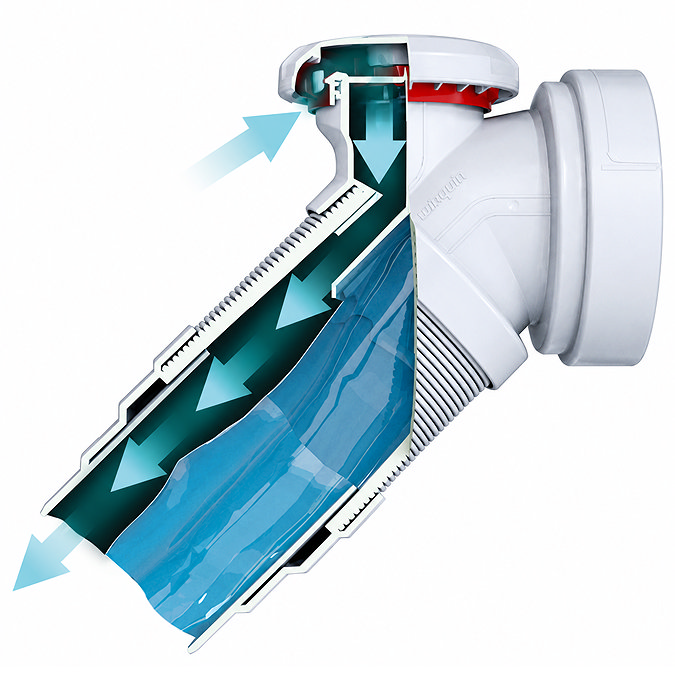

Designed to help prevent back-siphoning, pipe noise, and unpleasant drain odours, the Airconnect automatically admits air into the pipework when negative pressure occurs during flushing. Its flexible, extendable design and multi-diameter outlet make it a versatile choice for a wide range of toilet installations, while the integrated inspection hatch allows easier access for maintenance if required.

Key Features

• 2-in-1 Design: Combines a WC pan connector and integrated air admittance valve in one convenient solution.

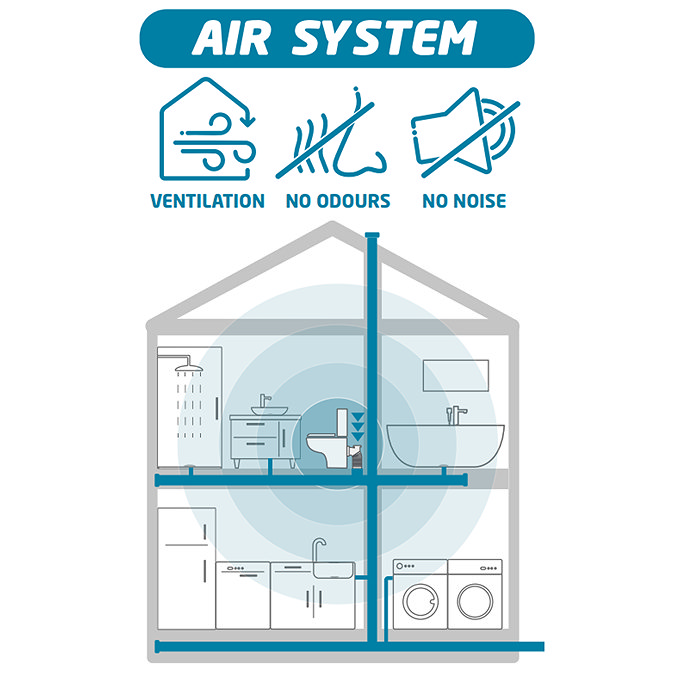

• Integrated Air System: Helps improve pipe ventilation and reduce back-siphoning, helping to prevent unpleasant odours and pipe noise.

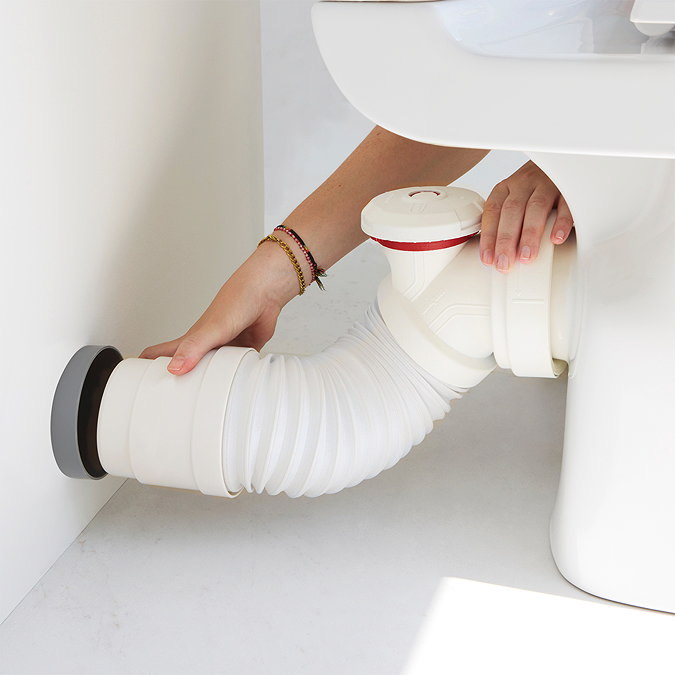

• Flexible & Extendable: Adjustable length from 260mm to 475mm allows easier installation across a wide range of WC setups.
• Universal Outlet Connection: Multi-diameter outlet suits 93mm, 100mm, and 110mm waste pipe connections for greater installation flexibility.

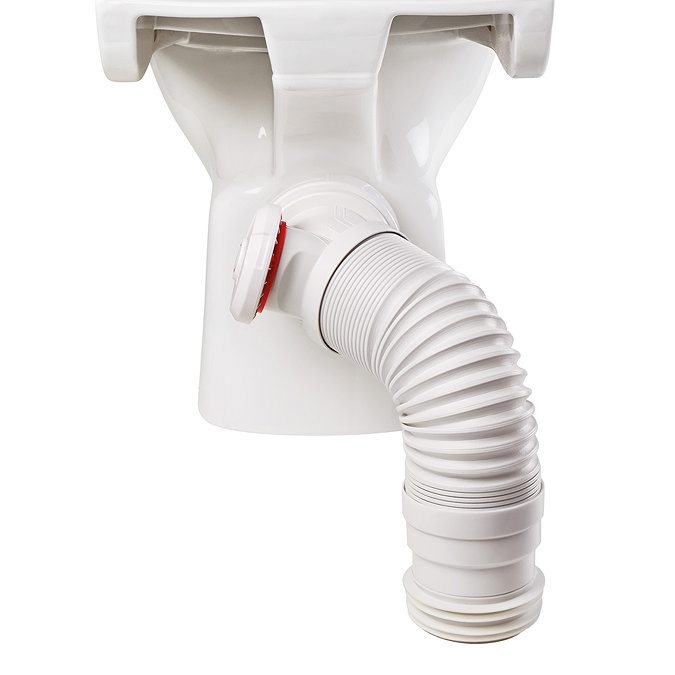

• Smart Installation: Can operate even when rotated up to 156°, unlike conventional air admittance valves that require strict vertical positioning.
• Easy Maintenance: Built-in inspection hatch provides easier access for clearing minor blockages and maintaining the fitting.

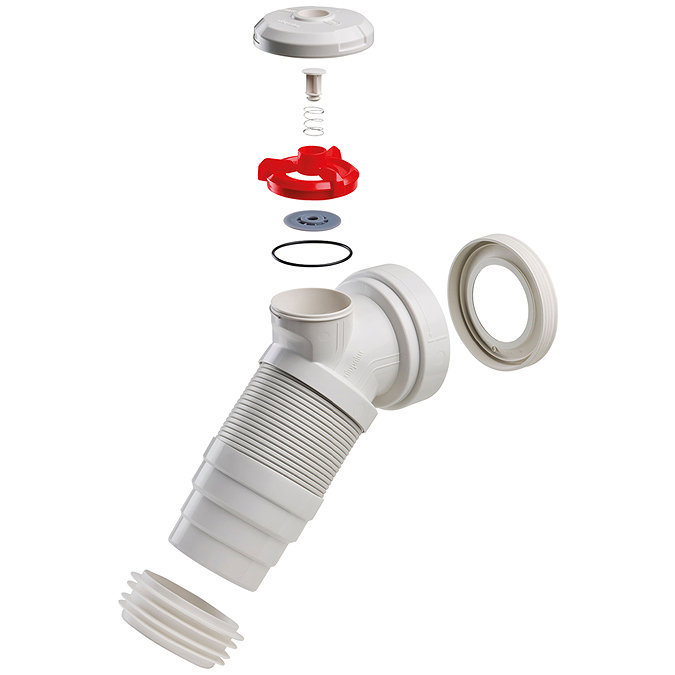

• Durable Construction: Manufactured from recycled ABS with a reinforced metal sheath and double-lipped seal for long-lasting performance and leak resistance.
• Eco-Designed: Made from over 50% recycled material to help reduce the use of virgin plastics.

Technical Specifications

• Brand: Wirquin
• Range: Airconnect
• Type: Pan Connector + Air Admittance Valve
• Product Code: 70120824

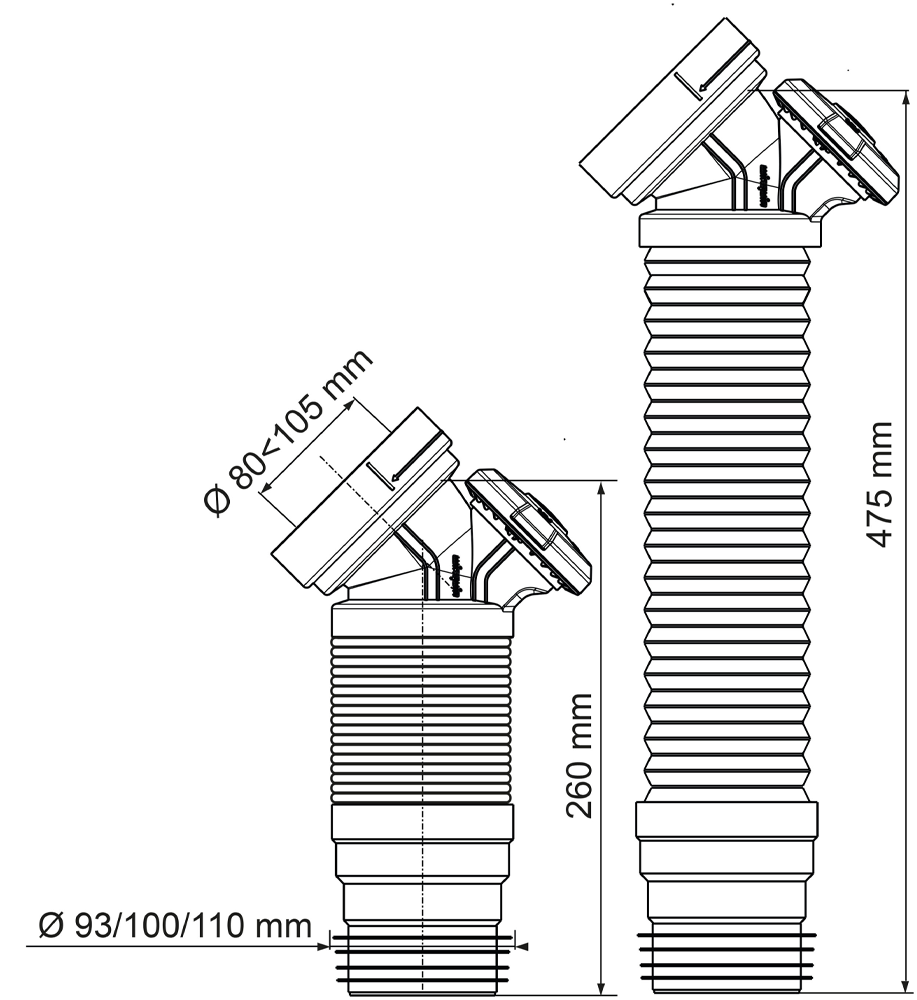

• Length: 260-475mm
• Inlet Diameter: 80-105mm
• Outlet Diameter: 93/100/110mm
• Connection Type: Push-fit or Solvent Weld (when fins are removed)
• Main Material: Recycled ABS
• Membrane Material: Silicone

10-year guarantee

Images are for illustrative purposes only. All measurements are approximate.
