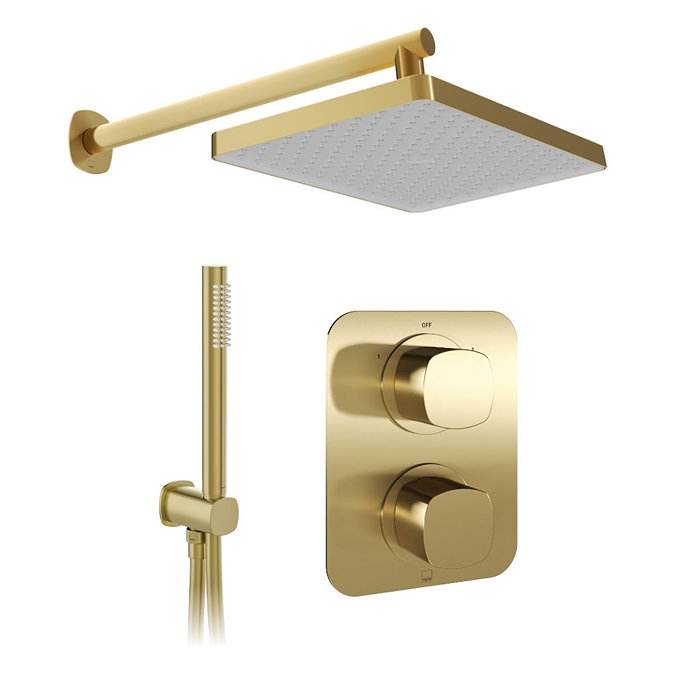

Vado Cameo Shower Pack with Single Function Handset and Fixed Shower Head - Satin Brass

Vado Cameo Shower Pack with Single Function Handset and Wall Mounted Fixed Shower Head - Satin Brass

The Vado Cameo Shower Pack with single function handset and wall mounted shower head brings a clean, modern look to your bathroom with its sleek satin brass finish and streamlined design. This two‑outlet setup includes a concealed thermostatic valve, a fixed rectangular shower head with wall arm, and a single‑function mini shower kit with an integrated outlet and optional wall shroud - giving you a practical and stylish showering experience.

Designed to fit a 70-95 mm wall depth with 3/4" connections, the Cameo pack is suitable for gravity‑fed, pumped, combination‑boiler and pressurised systems from just 0.2 bar. Smooth thermostatic cartridges ensure reliable temperature control, and the entire package is backed by Vado’s 10‑year guarantee for long‑lasting confidence.

Product Details:

• Brand: Vado
• Type: Shower Package
• Finish: Satin Brass
• Product Code: DX‑172251‑CAM‑SBR
• Plumbing System Suitability: Gravity, Pumped, Combi Boiler, Pressurised
• Outlets: 2
• Valve Type: Concealed
• Connections: 2 × 3/4" female inlets, 1 × 3/4" female outlet
• Wall Depth: 70-95 mm
• Min/Max Pressure: 0.2-5.0 bar

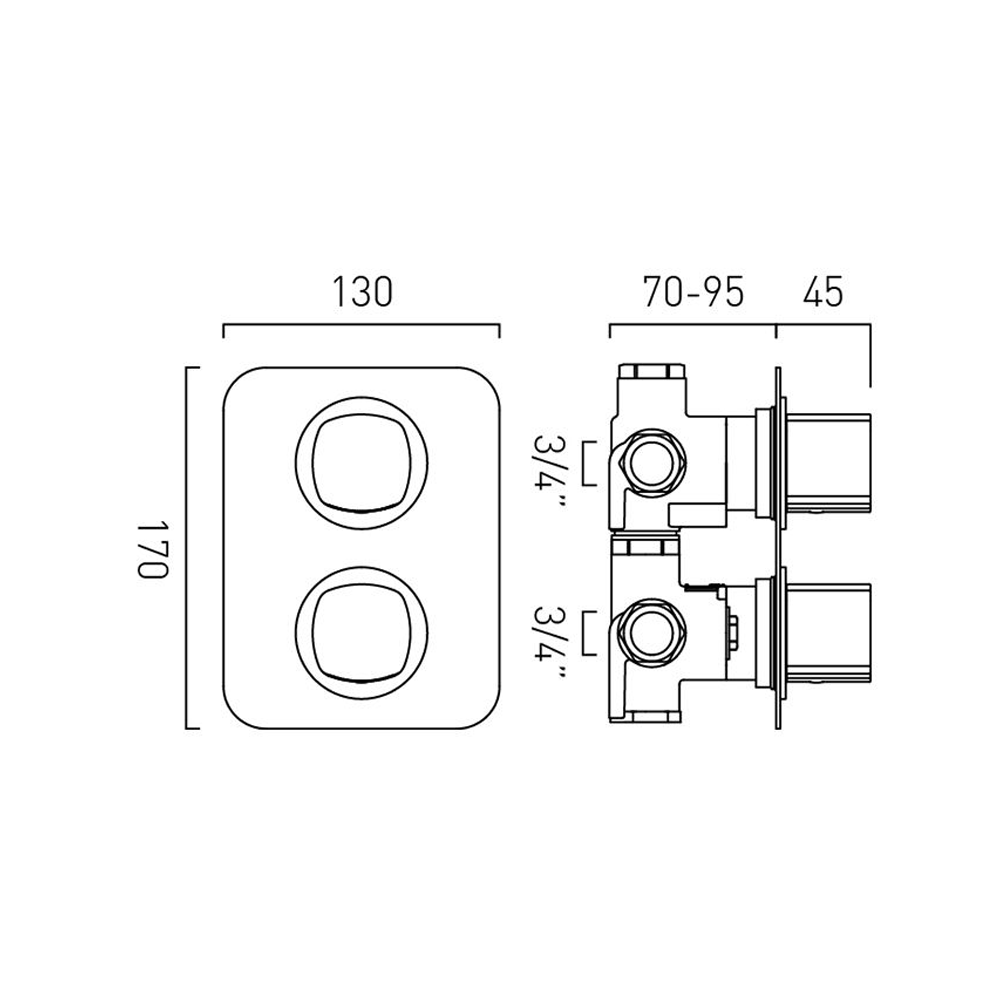

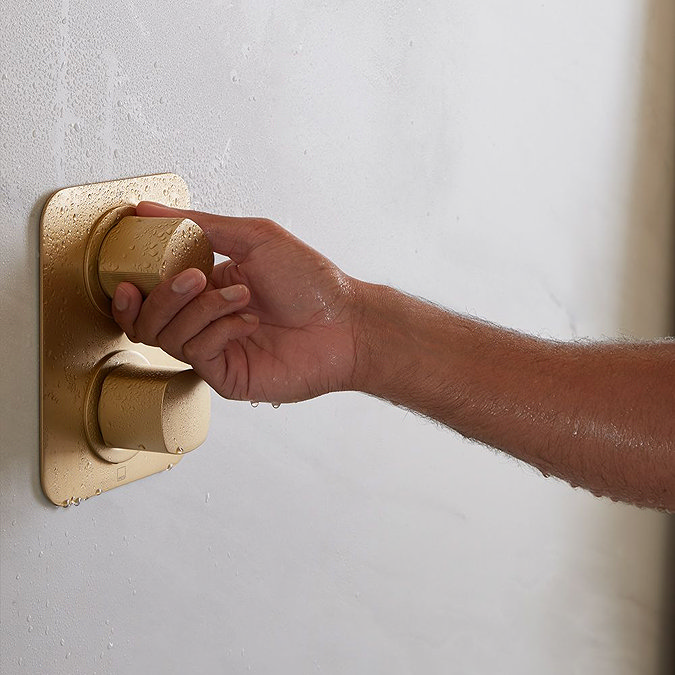

Shower Valve:

• Style: Square handles
• Orientation: Vertical
• Finish: Satin Brass
• Product Code: CAM‑148D/2‑SBR
• Outlets: 2
• Handles: 2
• Optimum Installation Depth: 82 mm
• Wall Depth: 70-95 mm
• Connections: 2 × 3/4" inlets, 2 × 3/4" outlets
• Minimum Pressure: 0.2 bar (shower), 1.0 bar (bath)

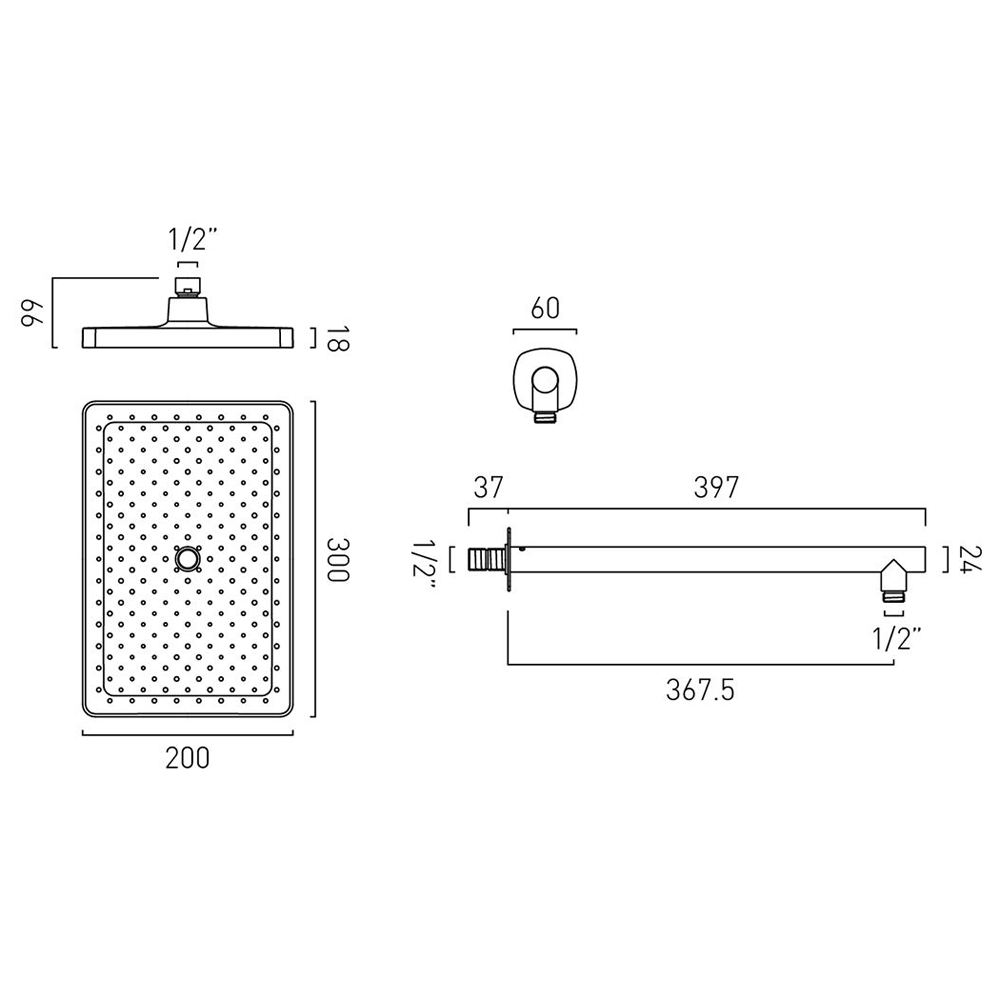

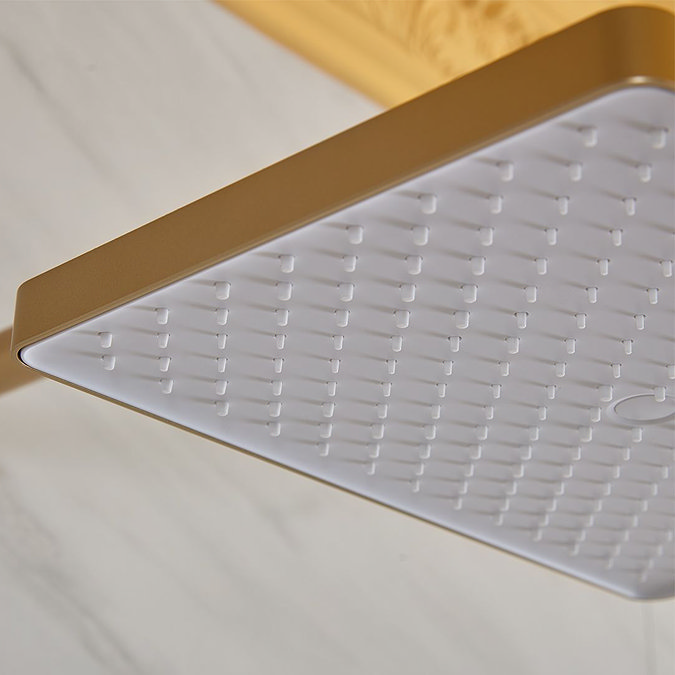

Shower Head & Wall Arm:

• Style: Square
• Finish: Satin Brass
• Product Code: CAM‑HEAD/SA‑SBR
• Mounting: Wall‑mounted
• Function: Single function
• Head Size: 200 × 300 mm
• Connections: 3/4"
• Min/Max Pressure: 0.2-5.0 bar

Single Function Mini Kit with Integrated Outlet:

• Type: Mini shower kit
• Style: Round
• Finish: Satin Brass
• Product Code: CAM‑SFMKWO‑SBR
• Mounting: Wall‑mounted
• Function: Single function
• Hose: 150 cm smooth hose
• Connections: 1/2" male, 51 mm threaded inlet
• Includes: Integrated outlet and bracket
• Recommended Flow Regulator: FR‑SHOWER/9‑PLA
• Min/Max Pressure: 0.2-5.0 bar

Pack Includes:

Concealed 2‑outlet thermostatic shower valve (CAM‑148D/2‑SBR)
Fixed rectangular shower head & wall arm (CAM‑HEAD/SA‑SBR)
Single‑function mini kit with integrated outlet (CAM‑SFMKWO‑SBR)

Please note:

All measurements are approximate, and images are for illustrative purposes only.

Guarantee: 10 years

Gravity‑fed systems:
If your home uses a low‑pressure gravity system, this valve requires a minimum of 0.5 bar. A negative or universal pump is recommended (sold separately). Positive pumps will not work.
