Vado Cameo Shower Pack with Multi-Function Slide Rail Kit and Fixed Shower Head - Matt White

Vado Cameo Shower Pack with Multi-Function Slide Rail Kit and Fixed Shower Head - Matt White

A premium 2‑outlet concealed thermostatic shower package featuring a multi‑function slide rail kit and a fixed shower head, finished in Matt White.

The Vado Cameo Shower Package with Multi‑Function Handset brings a modern, streamlined look to the bathroom with its elegant Matt White finish. This two‑outlet setup includes a concealed thermostatic valve, a fixed rectangular shower head with wall arm, and a versatile multi‑function handset for a personalised showering experience.

Designed to suit a 70–95 mm installation depth with 3/4" female connections, the system performs reliably across gravity‑fed, pumped, combination‑boiler and pressurised setups from just 0.2 bar. Durable internal cartridges ensure smooth, consistent temperature control, and the package is backed by Vado’s 10‑year guarantee for long‑lasting reassurance.

Product Details:

• Brand: Vado
• Type: Shower Package
• Finish: Matt White
• Product Code: DX-172250-CAM-MW
• Plumbing System Suitability: Gravity, Pumped, Combination Boiler, Pressurised
• Outlets: 2
• Valve Type: Concealed
• Connections/Fittings: 2 × 3/4" female inlets, 1 × 3/4" female outlet
• Min–Max Wall Mount Depth: 70–95 mm
• Minimum Operating Pressure: 0.2 bar
• Maximum Operating Pressure: 5.0 bar

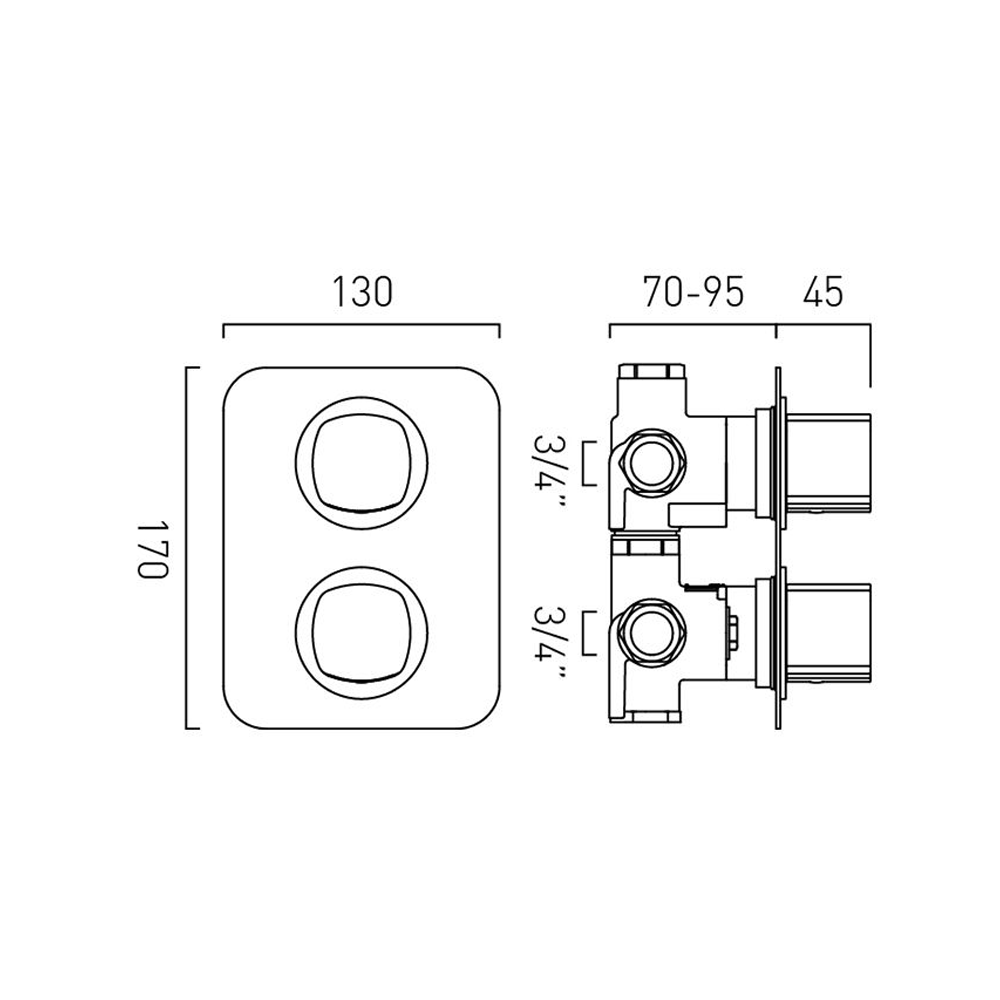

Shower Valve:

• Style: Square Handles
• Orientation: Vertical
• Finish: Matt White
• Product Code: CAM-148D/2-MW
• Mounting: Wall Mounted
• Outlets: 2
• Handles: 2
• Optimum Installation Depth: 82 mm
• Min–Max Wall Mount Depth: 70–95 mm
• Connections/Fittings: 2 × 3/4" female inlets, 2 × 3/4" female outlets
• Minimum Operating Pressure: 0.2 bar (Shower), 1.0 bar (Bath)

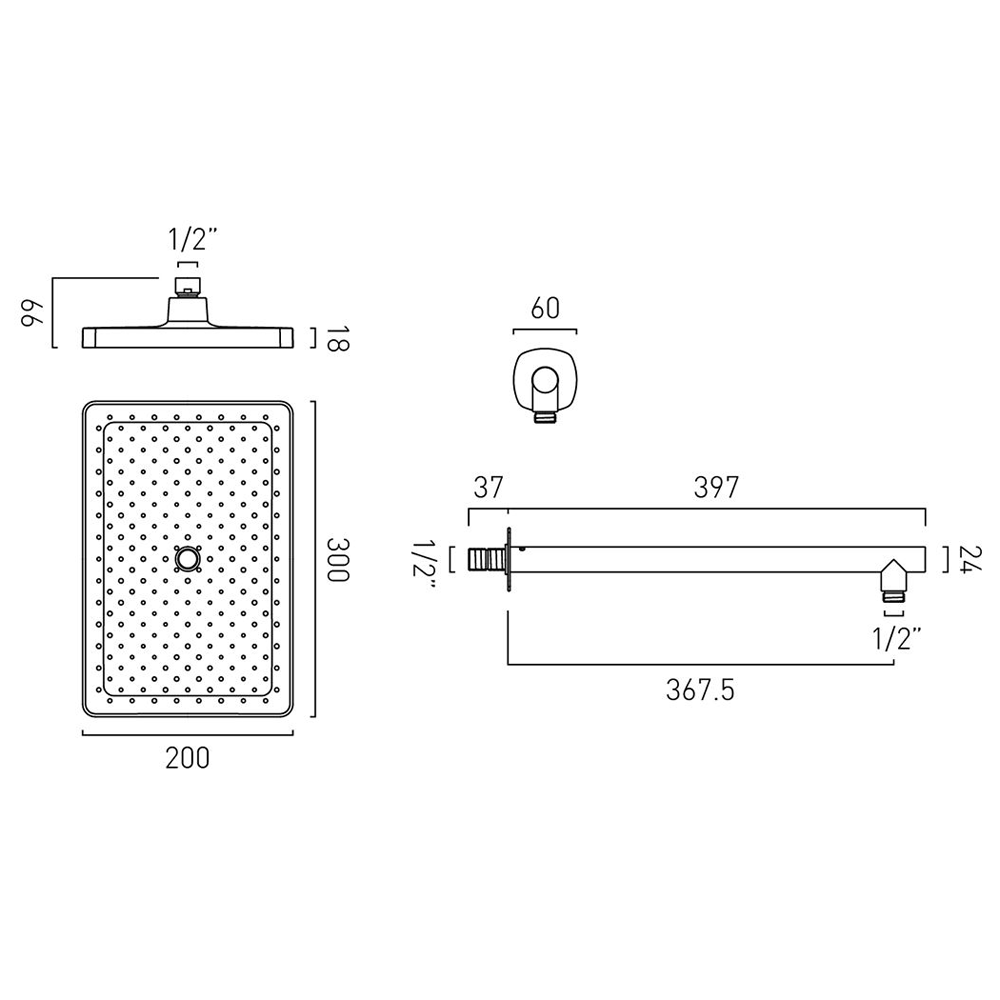

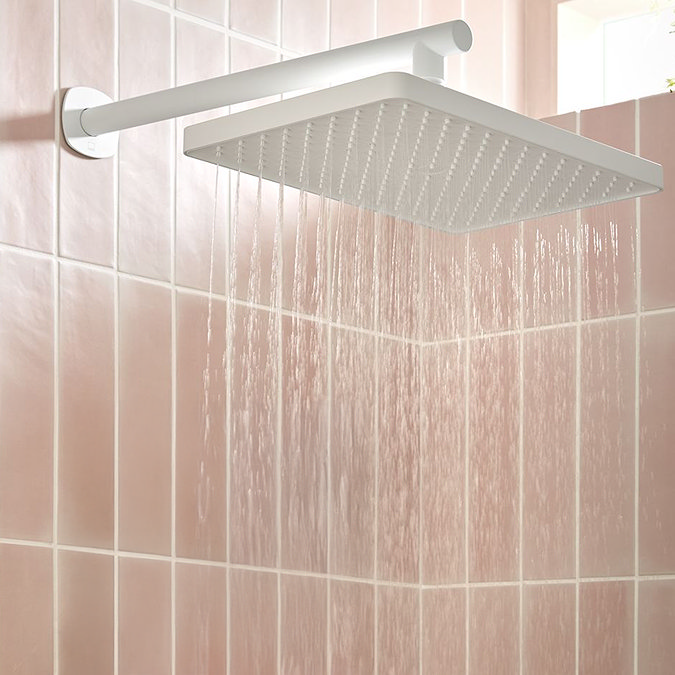

Shower Head & Wall Arm:

• Style: Square
• Finish: Matt White
• Product Code: CAM-HEAD/SA-MW
• Mounting: Wall Mounted
• Functions: Single Function
• Shower Arm: Wall Mounted
• Shower Head Size: 200 × 300 mm
• Connections/Fittings: 2 × 3/4" female inlets, 3 × 3/4" female outlets
• Minimum Operating Pressure: 0.2 bar
• Maximum Operating Pressure: 5.0 bar

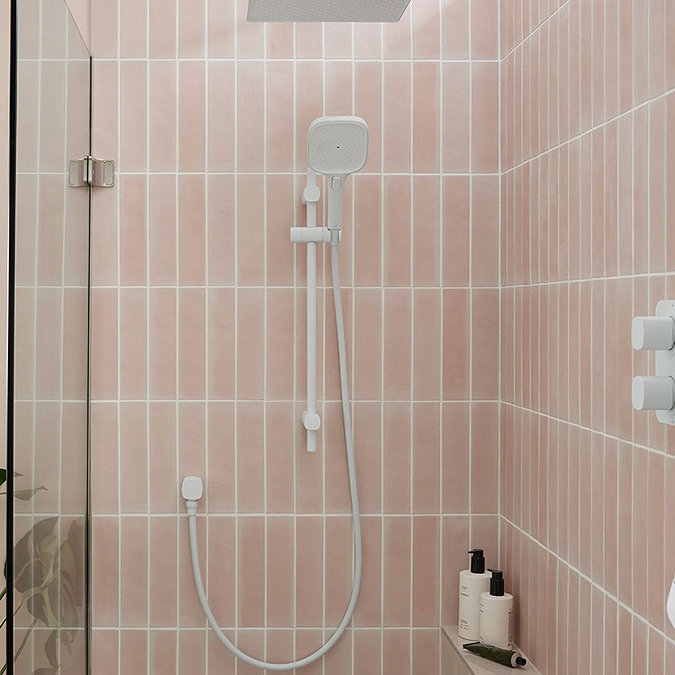

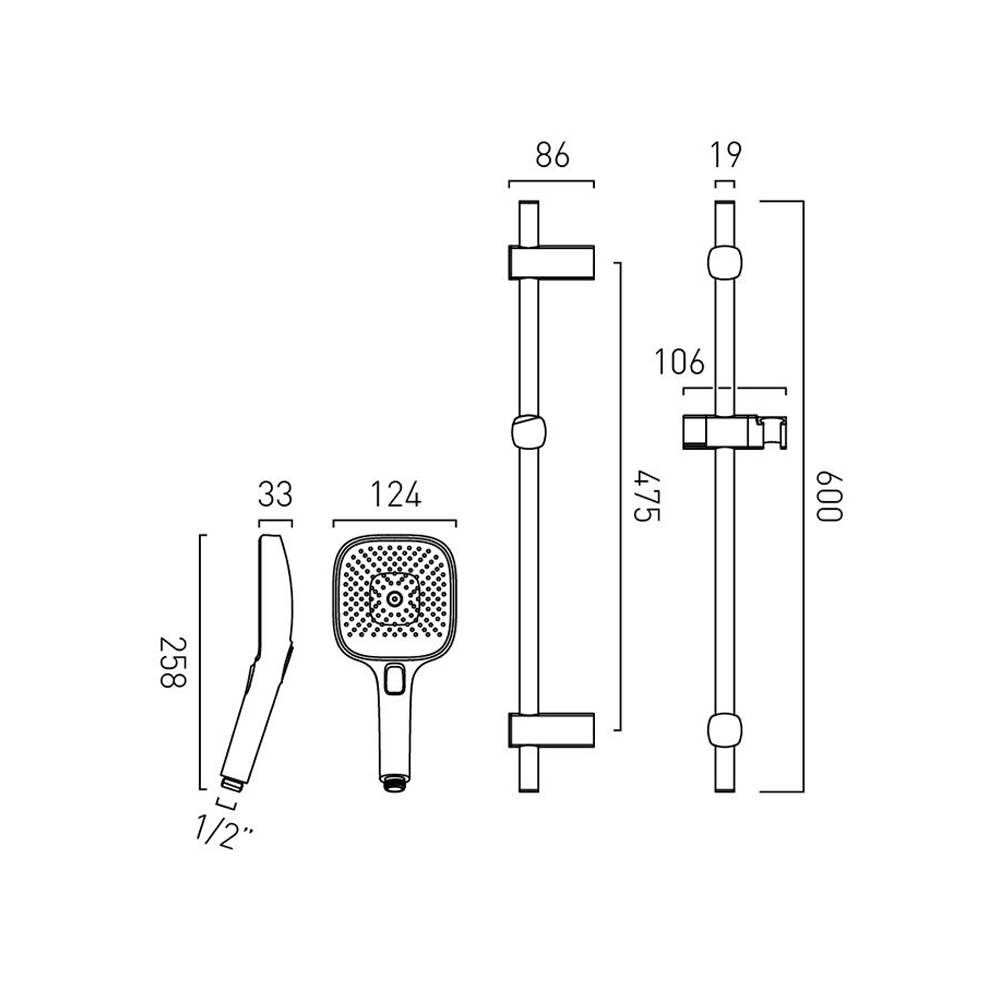

Slide Rail Shower Kit:

• Style: Square
• Finish: Matt White
• Product Code: CAM-MFSRK-MW
• Mounting: Wall Mounted
• Slide Rail Length: 600 mm
• Functions: 4‑Function
• Hose Length: 150 cm
• Minimum Operating Pressure: 1.0 bar
• Maximum Operating Pressure: 5.0 bar

Wall Outlet:

• Style: Square
• Finish: Matt White
• Product Code: CAM-OUTLET-MW
• Mounting: Wall Mounted
• Connections/Fittings: 1/2" threaded inlet, 1/2" threaded outlet

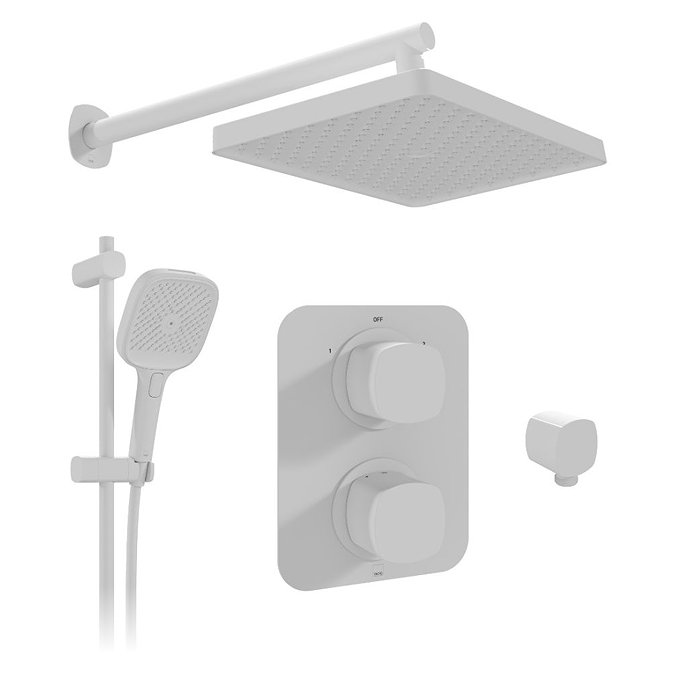

Pack Includes:

Double Outlet Concealed Thermostatic Shower Valve - CAM-148D/2-MW
Fixed Rectangular Shower Head and Wall Arm - CAM-HEAD/SA-MW
Multi Functional Slide Rail Shower Kit - CAM-MFSRK-MW
Soft Square Wall Outlet - CAM-OUTLET-MW

Please note:

All measurements are approximate, and images are for illustrative purposes only.

Guarantee: 10 years

Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar, therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
