Ultra Pioneer Square Twin Concealed Shower Valve with Fixed Head & Arm
Part No:UP-PK4
Discontinued
Product Information

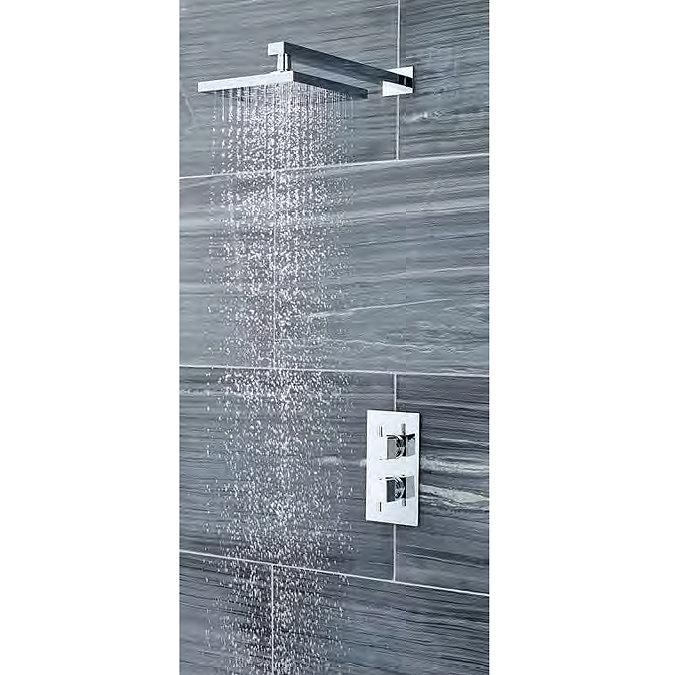

Ultra Pioneer Square Twin Concealed Shower Valve with Fixed Head & Arm
This Ultra Pioneer Square minimalist concealed thermostatic shower valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with a square fixed shower head and arm.
Shower Valve Details
Shower Head & Arm details
Comprises
ARM13 - Small Rectangular Shower Arm
PIOV31 - Pioneer Twin Concealed Thermostatic Shower Valve
HEAD50 - 200 x 200mm Square Fixed Shower Head
This Ultra Pioneer Square minimalist concealed thermostatic shower valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with a square fixed shower head and arm.

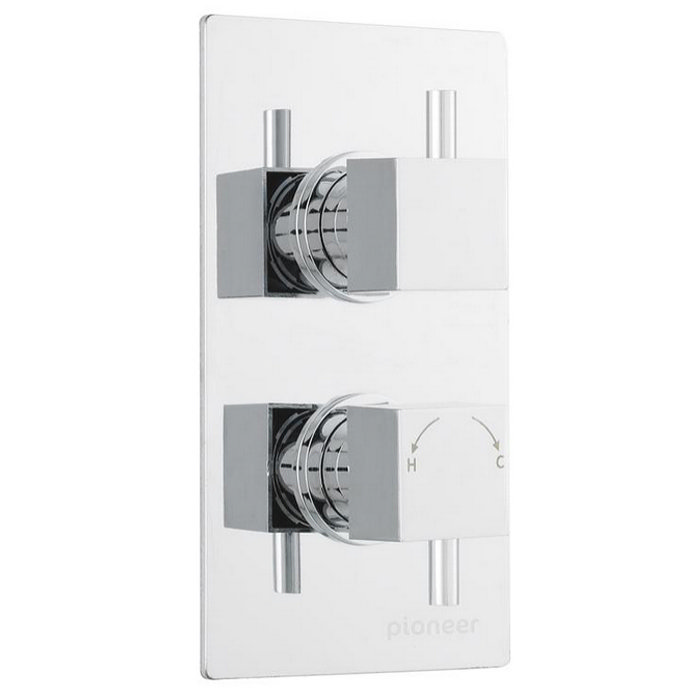

Shower Valve Details
- Height - 215mm
- Width - 120mm
- Depth - 132mm
- Range - Pioneer
- Finish - Chrome plated brass trim
- Code - PIOV31
- Pressure - LP1 - 0.1 Bar Minimum
- Super-strong, lightweight valve.
- Highly resistant to calcium build up.
- Can withstand pressures up to 25 bar.
- Temperature resistant up to 85 degrees.
- 100% recyclable.
- Manufactured from engineered polymer.
- Contains Valquest cartridge.
- Thermostatically controlled.
- Suitable for water systems between 0.1 - 10 bar static pressure.
- Suitable for unvented mains pressure systems.
- Suitable for use with shower pumps.
- Thermostatic control to +/- 2 to 3&°C degree - even if the water pressure fluctuates.
- Full thermal protection to prevent scalding in the event of hot or cold water shut off.
- In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
- Standards
- WRAS Approved
- TMV2 Approved
Flow Rates
0.1 Bar - 2.5 l/m
0.5 Bar - 13 l/m
1.0 Bar - 18.5 l/m
2.0 Bar - 26.5 l/m
3.0 Bar - 33 l/m
0.1 Bar - 2.5 l/m
0.5 Bar - 13 l/m
1.0 Bar - 18.5 l/m
2.0 Bar - 26.5 l/m
3.0 Bar - 33 l/m
Shower Head & Arm details
- Colour - Chrome
- Shower Head - 200 x 200mm
- Arm Length - 355mm
- Wall Mounted
- Chrome plated brass arm
- Chrome plated ABS plastic head
- Pressure requirement 0.5 bar minimum
Comprises
ARM13 - Small Rectangular Shower Arm
PIOV31 - Pioneer Twin Concealed Thermostatic Shower Valve
HEAD50 - 200 x 200mm Square Fixed Shower Head
