900 x 900mm Single Panel Radiator - Type 11

Type 11 Compact Single Convector Radiator - H900 x W900mm - S909K

Our range of Type 11 compact single convector radiators will enhance any home with space saving classic elegance and efficiency, they are manufactured using the latest state-of-the art technology ensuring maximum efficiency.

Internally welded with a final coating of white enamel (RAL9016) each radiator is degreased and zinc phosphated before being coated with water-based cathophoratic paint. The final coat is applied using an epoxy polyester electrostatic powder coating system that is baked to a hard finish.

Comes with a 10 year guarantee against faulty manufacture. All radiators come complete with factory fitted top grille and side panels.

 Product Details:

• Size - H900 x W900mm
• Output Watt Delta T30: 602
• Output BTU's Delta T30: 2054
• Output Watt Delta T50: 1169
• Output BTU's Delta T50: 3989
• Radiator - Single Convector Type 11
• Colour - White
• Finish - Epoxy Polyester Powder Coat
• Material - Steel
• Each radiator has 4 x 1/2" connections as standard.
• Suitable for two pipe installations. For single pipe applications, it is advisable to use diversion tees in the pipework, as this will assist in obtaining design performance from the radiators.

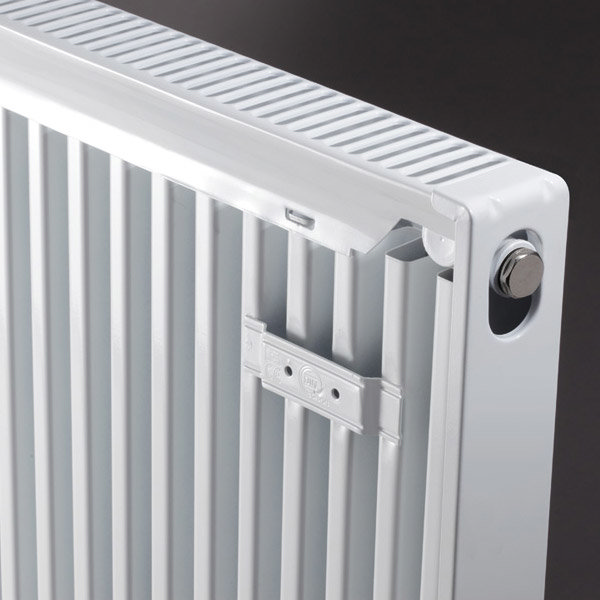

• Everything required for installation can be found within the robust packaging. Brackets are of a strong design, with open top and deep slots, which facilitates easy and secure installation. Plastic inserts seat the radiator precisely on the bracket minimizing expansion and contraction noise. The neat nickel-plated plug and vent provide a watertight joint, whilst complementing the superior finish.
• Pressure tested to 13 bar

All measurements are approximate

Sizes indicated may vary by + or - 2 mm.

Pictures shown are for illustration purposes only

Radiator Valves not supplied but can be purchased separately

Guarantee - 10 Year
