Trafalgar Compact Wall‑Hung Toilet Frame – Top/Front Flush with Dual‑Flush Cistern & Brushed Brass 2‑Button Plate

Trafalgar Compact Wall‑Hung Toilet Frame - Top/Front Flush with Dual‑Flush Cistern & Brushed Brass 2‑Button Plate

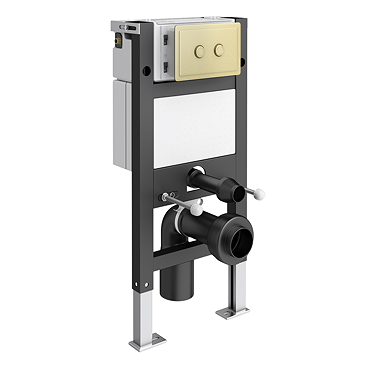

Upgrade your bathroom with the Arezzo Compact Top/Front Flush Toilet Fixing Frame - a smart, space‑saving solution designed for wall‑hung toilets. This sturdy metal frame, complete with a dual flush cistern, allows you to achieve a luxurious floating toilet effect while efficiently flushing away waste.

Engineered for versatility, it supports both top and front flush installation and is compatible with all standard wall‑hung WC pans. The compact design makes it ideal for fitting under windows or within low‑wall spaces, while the insulated, durable moulded tank reduces condensation and noise.

Supplied with the Trafalgar brushed brass flush plate, this sleek rectangular ABS plate with round buttons blends minimalist style with water‑saving functionality. The dual‑flush system allows you to choose between a half flush for liquid waste and a full flush for solid waste, helping reduce water consumption without sacrificing performance.

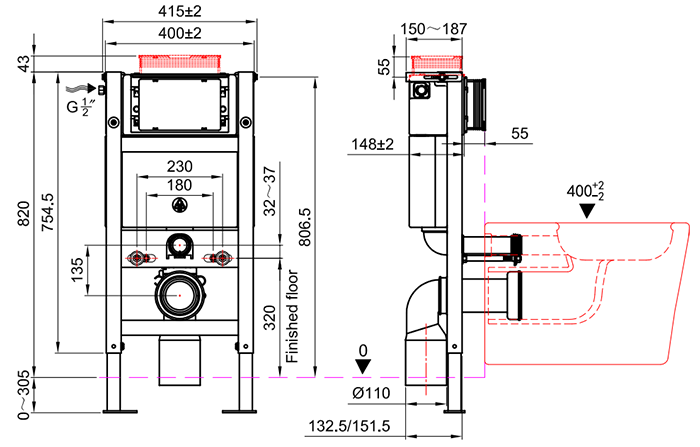

Frame & Cistern Details:

• Height: 755-1055mm (approx.)
• Height Adjustment: 0 - 300mm
• Width: 415mm
• Depth: 166mm
• Full Flush: 6-7.5L
• Half Flush: 2.5-4L
• Fill Valve Pressure: 0.2 - 16 bar
• Max Support Weight: 400kg
• Compatible with built‑in or plasterboard wall installation
• Includes brackets and WC bend
• Top or front flush installation
• Suitable for bathroom furniture and concealed frameworks
• Water‑saving dual‑flush valve
• EN 14055 tested, UKCA marked, ISO 9001:2015 registered manufacturer

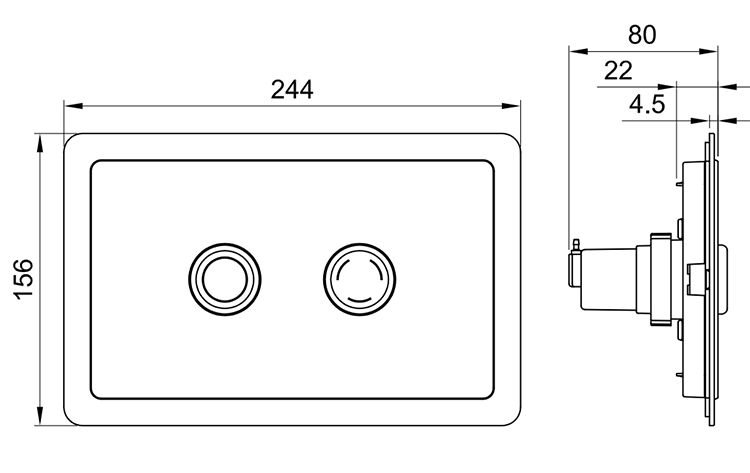

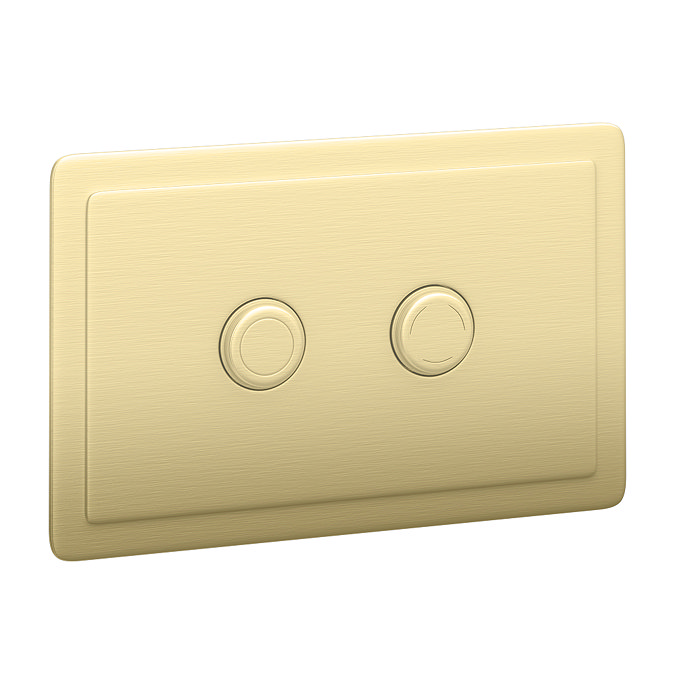

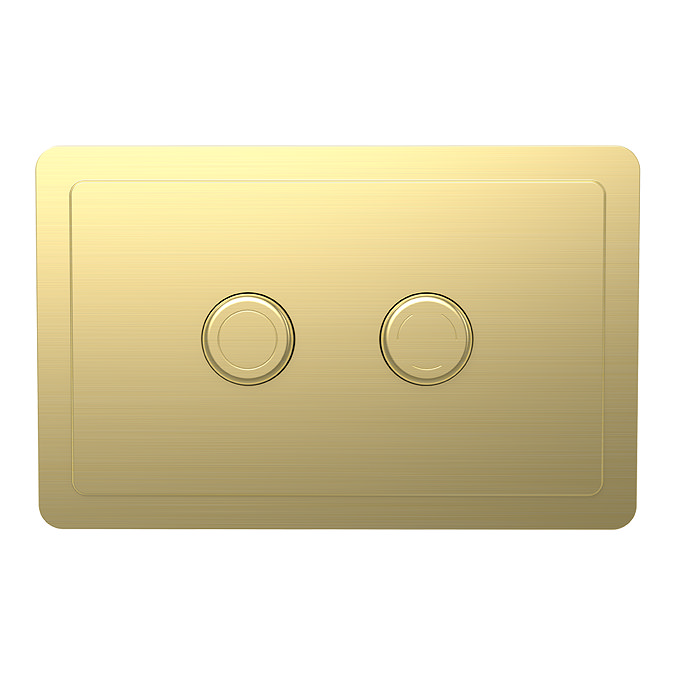

Trafalgar Brushed Brass Flush Plate Details:

• Size: 244 × 156mm
• Thickness: 4.5mm
• Colour/Finish: Brushed Brass
• Material: High‑impact, durable ABS
• Button Shape: Round
• Style: Classic / Contemporary
• Flush Type: Dual flush - half flush / full flush
• Compatibility: Suitable for use with Arezzo standard and compact WC frames

Additional Information:

Images are for illustration purposes only.

All measurements are approximate.

Guarantee:

Frame & Tank: 5 years
Fill valve & flush valve: 2 years
Brushed Brass Flush Plate: 12 months
