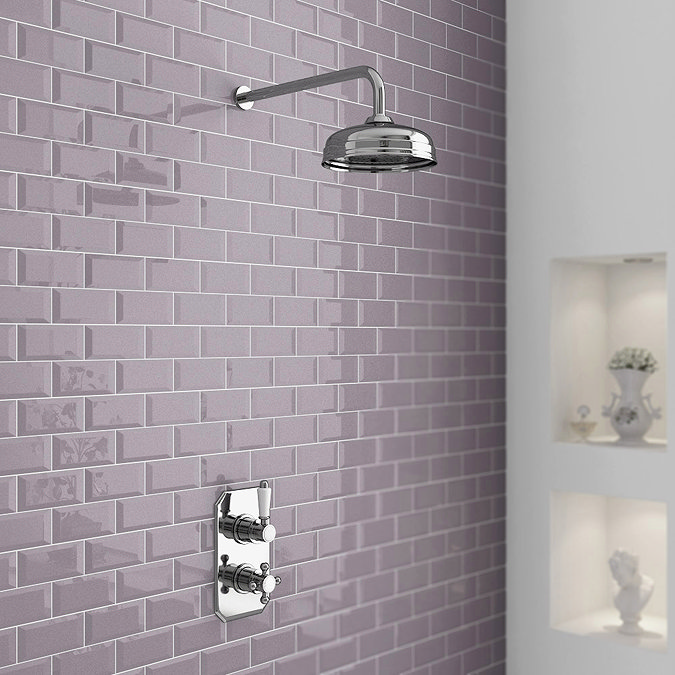

Nuie Edwardian Twin Concealed Thermostatic Shower Valve with 8" Apron Fixed Head

Nuie Edwardian Twin Concealed Thermostatic Shower Valve with 8" Apron Fixed Head

The Edwardian range of concealed thermostatic shower valves brings substantial timeless elegance to the modern bathroom. This Concealed Thermostatic Twin Shower Valve offers thermostatic showering via two easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

Using high quality chrome and brass Edwardian shower valves will not only look outstanding in your new shower enclosure but will keep you and your family safe. Supplied with a 8" apron fixed shower head.

Shower Valve Details

• Height - 210mm
• Width - 120mm
• Depth - 123mm
• Type - Concealed Thermostatic Shower Valve
• Product Code - ITY316
• Colour/Finish - Polished Chrome
• Material - Manufactured from high quality brass & ABS
• Classic lever and cross-head handles
• Can be fitted vertically or horizontally
• Accurate flow control
• Thermostatic control to +/- 2°C- even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down within 1.5 seconds.
• The patented cartridge is highly resistant to calcium build up - even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates - even at low pressure.
• Our valves can deliver 5.5 litres per minute at 0.1 bar pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing, simply remove the cartridge, turn 180 degrees and replace.
• WRAS Approved Product (2204707)
• 5 Year Guarantee

Shower Head & Arm Details

• High Quality Design
• Colour/Finish - Polished Chrome
• Shower Arm - 330mm Length
• Manufactured to the Highest Standards
• Heavyweight Brass Construction
• Smooth Operation with Quality Components
• Fixed head
• Requires a minimum of 0.5 bar pressure

Guarantee - 5 Year

Flow Rates

0.1 Bar - 5.5 l/m
0.2 bar - 7.1 l/m
0.5 Bar - 14 l/m
1.0 Bar - 20 l/m
2.0 Bar - 29 l/m
3.0 Bar - 44 l/m

Comprises

(1) 8" Apron Fixed Shower Head - Chrome - HEAD21
(1) Nuie - Edwardian Twin Concealed Thermostatic Shower Valve - Chrome
(1) Round Shower Arm
