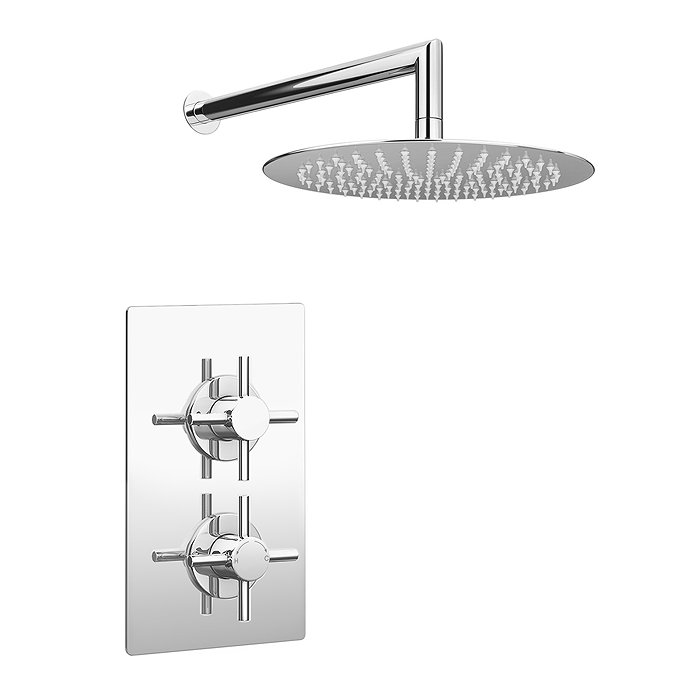

Pablo Shower Package with Concealed Crosshead Valve and Head

Pablo Shower Package with Concealed Crosshead Valve with Wall Mounted Fixed Head in Chrome

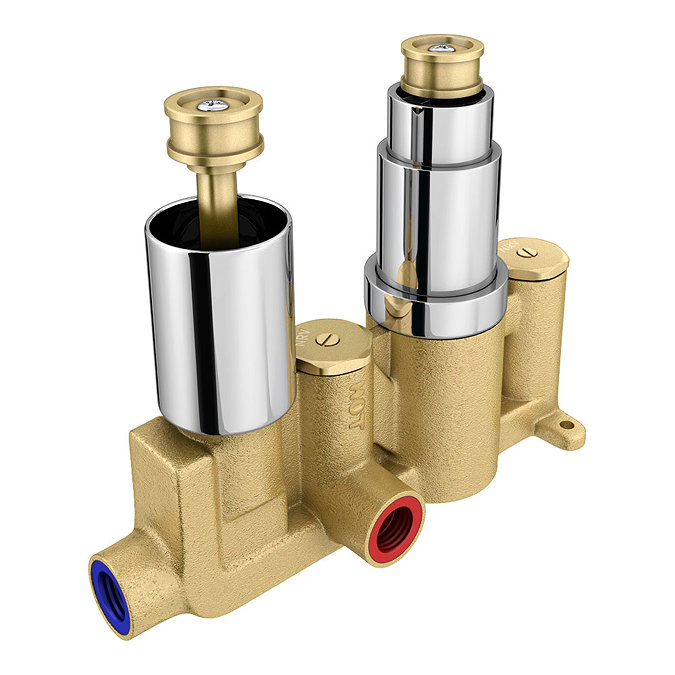

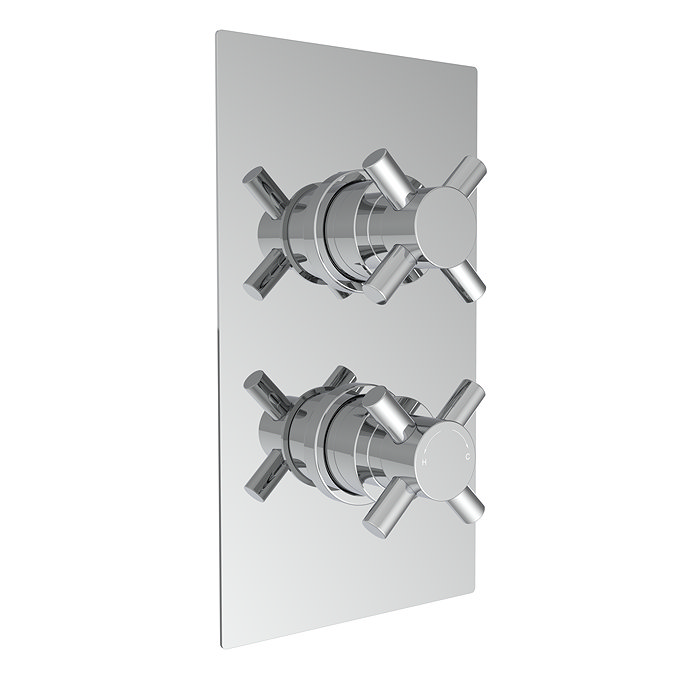

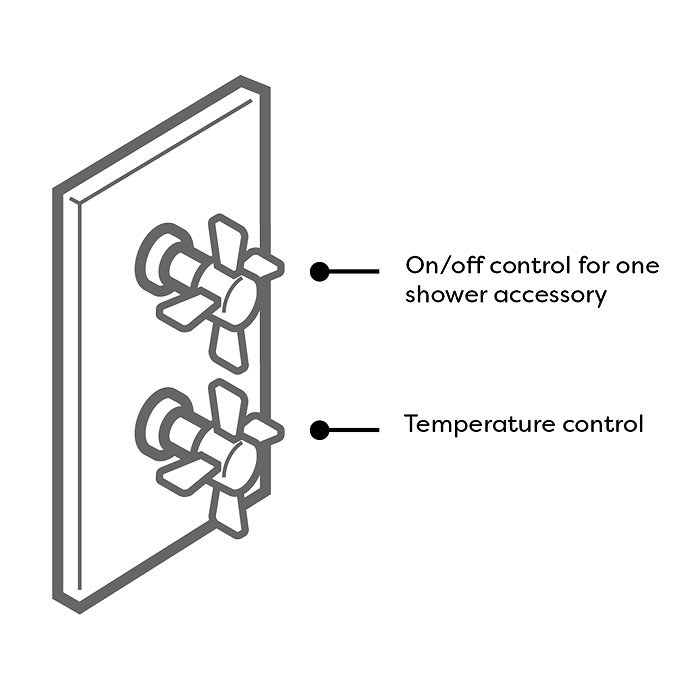

The Pablo Concealed Thermostatic Valve will complement any modern bathroom suite, offering thermostatic showering via two easy-to-operate controls for temperature and flow. It is supplied with a 300mm ultra-thin fixed shower head with a swivel joint and a stylish 90-degree bend arm.

Shower Valve Details:

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Crosshead
• Material: Brass Internals
• Thermostatically Controlled
• Water Pressure: 0.5 bar to 5 bar
• Faceplate: Rectangular
• For Use With: 1 Outlet
• Installation: Can be fitted vertically or horizontally
• Suitable for Modern Pressurised Plumbing Systems
• Hot Water Temperature: 55 to 85 Degrees
• Pump Requirement: Shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. We recommend a universal or negative head pump.

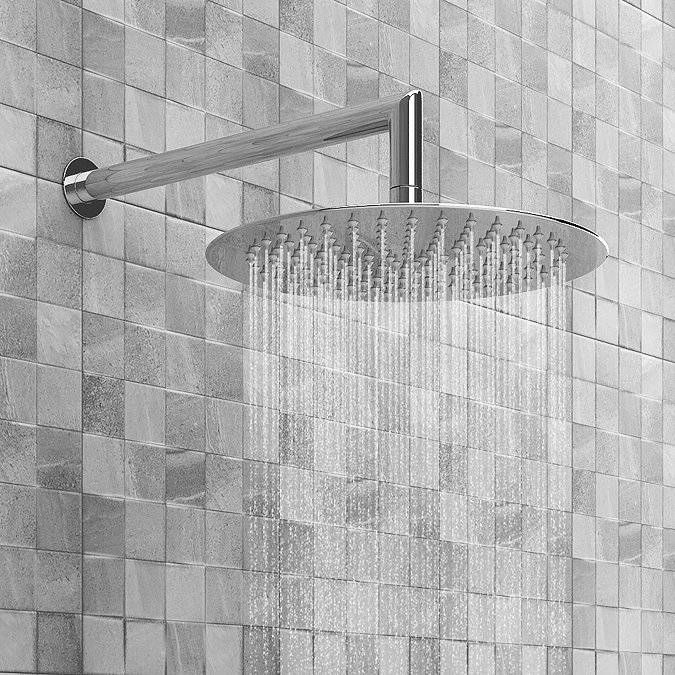

Shower Head and Arm Details:

• Diameter: 300mm Head
• Style: Modern
• Shape: Round
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Style: Rainfall
• Mount: Wall mounted 90-degree bend arm
• Pressure Requirement: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Features: Supplied with a swivel joint; rub-clean nozzles make this item easy to clean and maintain



Please Note:
All measurements provided are approximate.
Product images are for illustrative purposes only.
Guarantee: 5 Years (1 Year on serviceable parts, e.g., internal components such as check valves and cartridges)

Package Includes:

(1) Twin Round Concealed Shower Valve
(1) Round Wall Mounted 90 Degree Bend Shower Arm - Chrome
(1) 300mm Ultra-Thin Round Shower Head with Swivel Joint

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar; therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
