Milan Square Triple Valve with Diverter, Thin Fixed Shower Head, 4 Body Jets + Handset Chrome

Milan Modern Square Triple Valve with Diverter, Ultra Thin Fixed Shower Head, 4 Square Body Jets + Shower Handset with Integrated Outlet Elbow and Parking Bracket Chrome

The Modern Square 3 Outlet Shower Package is a luxurious and versatile addition to the contemporary bathroom. It includes a triple valve that allows selection between body jets, a fixed shower head, or a shower handset. The valve is suitable for all types of plumbing installations and has a built-in anti-scald device for safety. It can operate two shower accessories separately or simultaneously and divert to a third option. The package also includes a shower head, handset, 4 body jets, and a thermostatic shower valve. Each item is designed to complement modern bathroom aesthetics and is built to high manufacturing standards.

Shower Valve Details

• Height: 280mm
• Width: 120mm
• Depth: 126mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular backplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two outlets separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Can be fitted vertically or horizontally
• Pipe Size: 15mm (1/2" BSP)

Square Body Jet Details

• Require high flow rates when used in conjunctions with an overhead shower.
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass body
• Easy Clean Nozzles to Prevent Lime Scale Build-Up
• Water Pressure - 2.0 bar pressure minimum
• Square Design
• 16 jet nozzles

Ultra-Thin Fixed Shower Head Details

• Fixed Shower Head
• Sleek & Minimalist Design
• Colour/Finish - Polished Chrome
• Brass Internals
• Wall Mounted
• Minimum operating pressure of 0.5 bar is required for best performance.
• Manufactured to the Highest Standards
• Smooth Operation with Quality Components
• Easy to install

Square Outlet Elbow w/ Parking Bracket, Flex & Handset Details

• Single function hand shower with integrated outlet elbow and parking bracket.
• Manufactured To The Highest Standard
• Square Handset with Built in Outlet
• Colour/Finish: Polished Chrome
• Material: Brass / ABS plastic

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only and may differ from the actual product.

Comprises

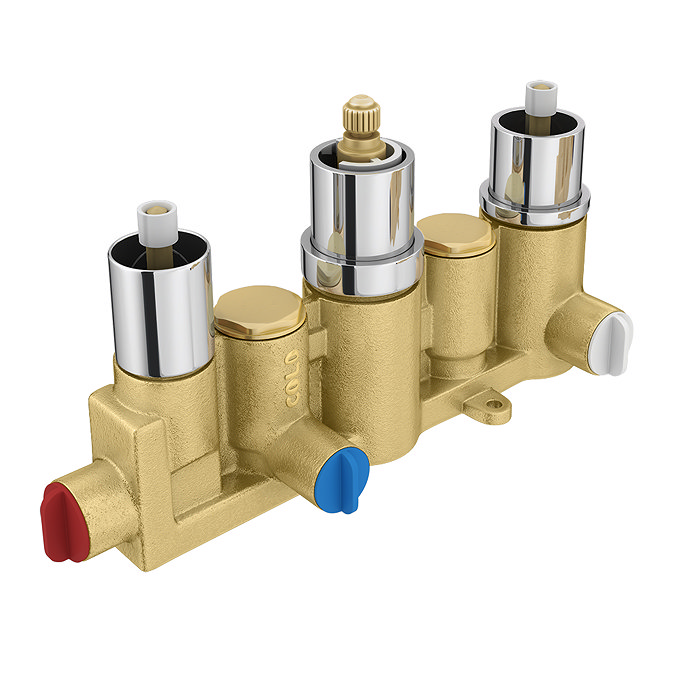

(1) Modern Square Triple Concealed Thermostatic Shower Valve with Diverter
(1) Ultra Thin Fixed Shower Head
(4) Square Body Jets
(1) Square Shower Kit with Integrated Outlet Elbow and Parking Bracket

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
