Milan Square Triple Valve with Diverter, Ceiling Mounted Square Shower Head, 4 Body Jets + Slider Chrome

Milan Modern Square Triple Valve with Diverter, Ceiling Mounted Square Shower Head, 4 Square Body Jets & Rectangular Slide Rail Kit Chrome

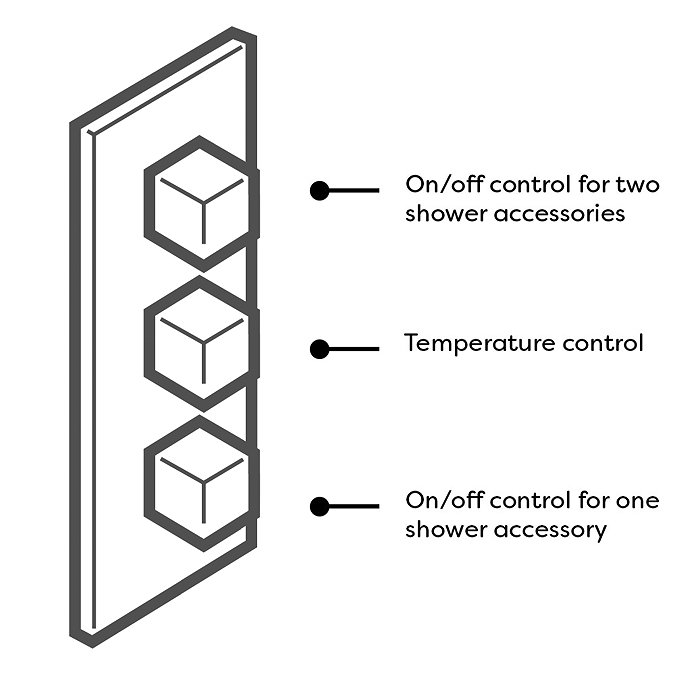

The modern square 3 outlet shower package brings substantial elegance to the modern bathroom. The triple valve enables you to select body jets, fixed shower head or shower handset for a quick freshen up or for a real drenching. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head &  body jets or slide rail kit & body jets with option to divert to a third option.

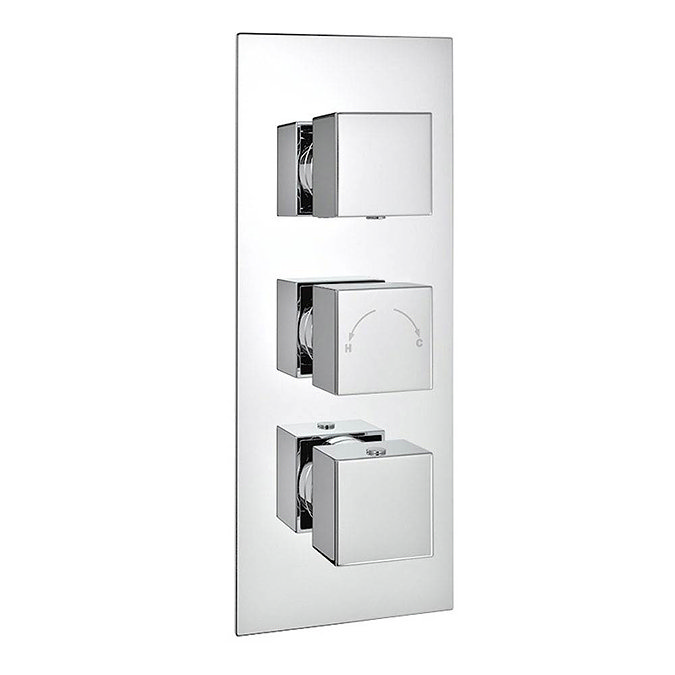

Shower Valve with Diverter Details

• Height: 280mm
• Width: 120mm
• Depth: 126mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular backplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two outlets separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Can be fitted vertically or horizontally
• Pipe Size: 15mm (1/2" BSP)

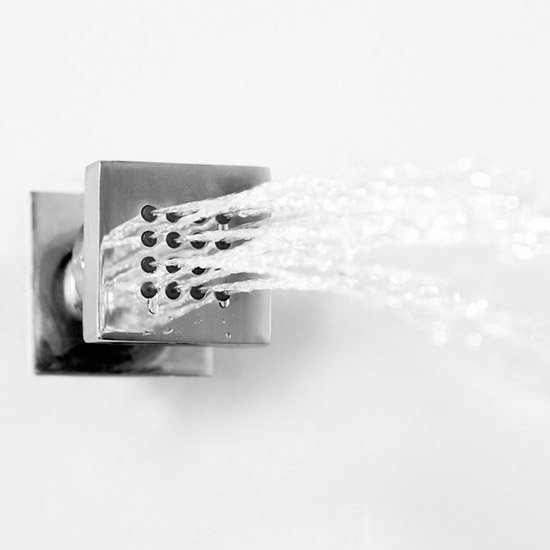

Body Jet Details

• Require high flow rates when used in conjunctions with an overhead shower.
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass body
• Easy Clean Nozzles to Prevent Lime Scale Build-Up
• Water Pressure: 2.0 bar pressure minimum

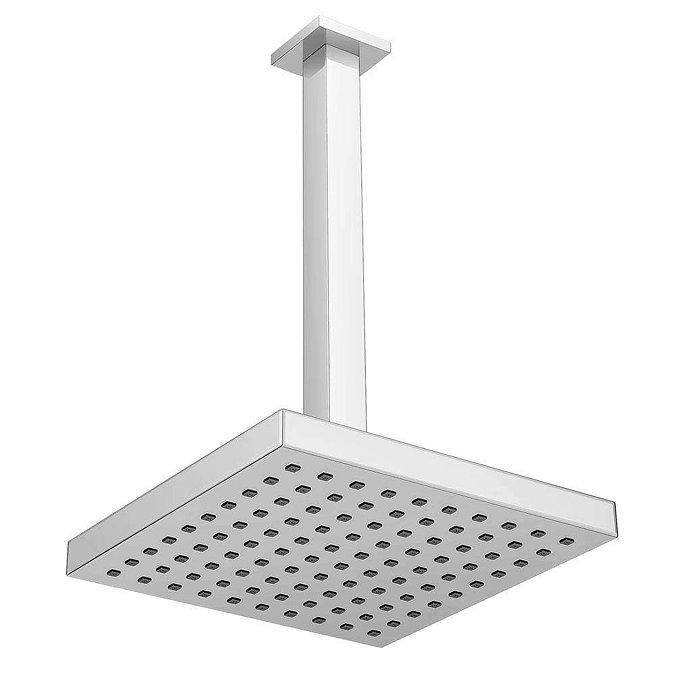

Shower Head Details

• Shower head dimensions: 200 x 200mm
• Shower arm length: 300mm
• Style: Modern
• Colour/Finish: Chrome
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square arm.

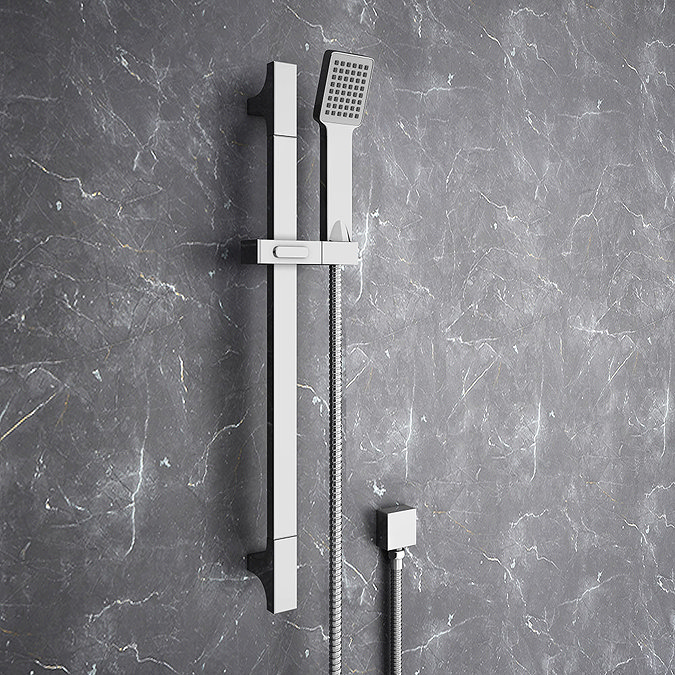

Rectangular Slide Rail Kit Details

• Slide rail: height 60cm, projection 6cm
• Shower handset: height 23.6cm
• Shower flex: 140cm
• Highly polished finish
• Chrome plated solid brass
• Wall clip included
• Contemporary style
• LP1 - 0.5 bar pressure minimum
• Rust resistant hose
• Easy clean rainfall shower head
• Adjustable handset
• Supplied with outlet elbow

Certain parts are chrome plated plastic, not metal.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Product images are for illustrative purposes only and may differ from the actual product.

All measurements are approximate

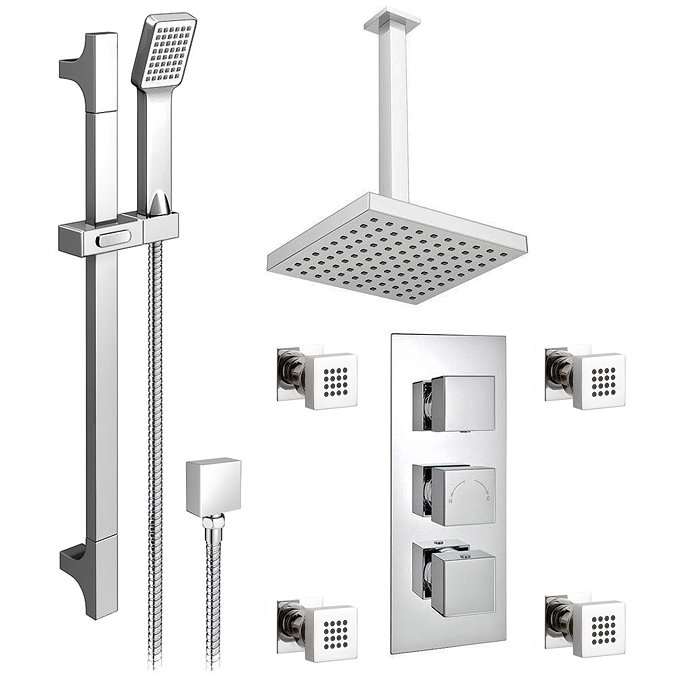

Comprises

(1) Modern Square Triple Concealed Thermostatic Shower Valve with Diverter
(1) 200 x 200mm Fixed Square Shower Head with Ceiling Mounted Arm
(4) Square Body Jets
(1) Rectangular Slide Rail Kit

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
