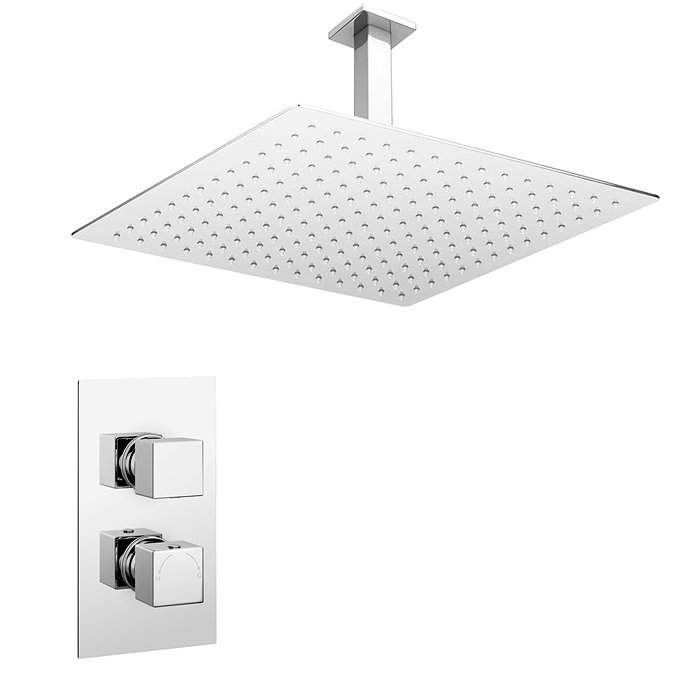

Milan Twin Concealed Thermostatic Valve + 400 x 400mm Rainfall Shower Head

Milan Twin Concealed Thermostatic Valve with 400 x 400mm Ceiling Mounted Rainfall Shower Head Chrome

This super sleek Milan concealed shower package with mirror-chrome finish provides you with everything you need to give your enclosure/wet room a stylish designer makeover. Features a modern concealed one outlet shower valve with minimalist square handles and a matching stainless steel large ultra-thin square ceiling mounted rainfall shower head with rub clean nozzles. This quality concealed thermostatic shower valve offers thermostatic showering via two easy-to-operate controls. Separate controls for temperature and flow.

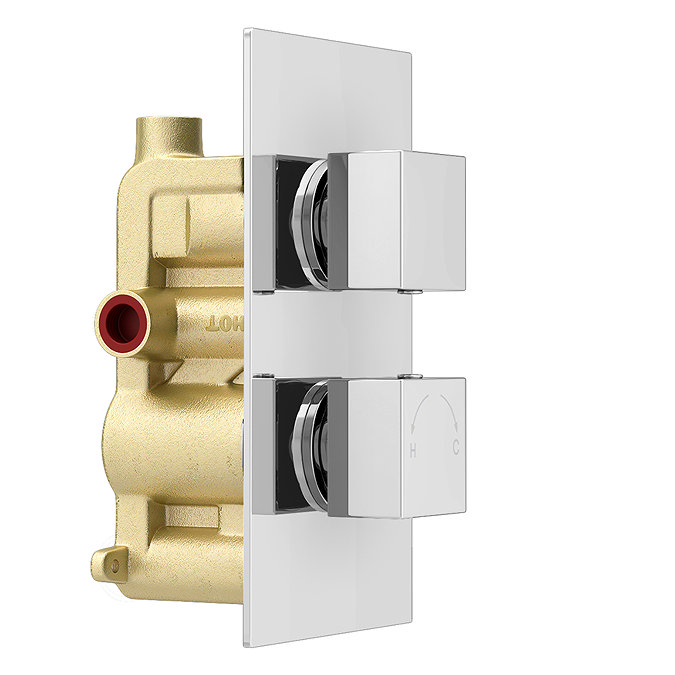

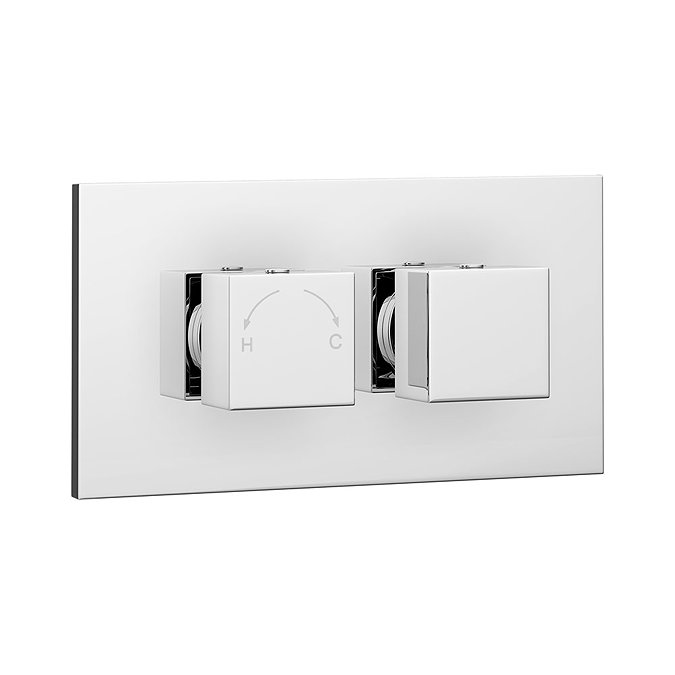

Shower Valve Details

• Height: 200mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Backplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

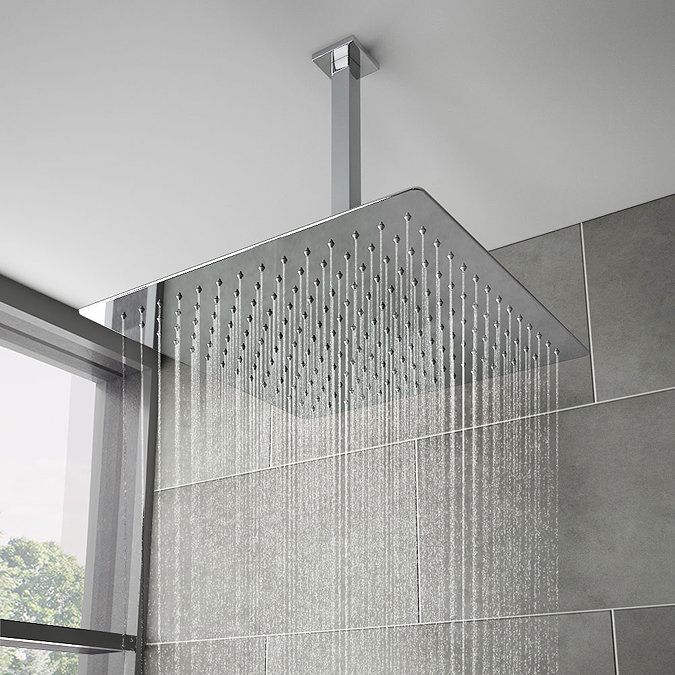

Shower Head Details

• Size: 400 x 400mm
• Style: Modern
• Shape: Square
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Thickness/Profile: 7mm (excluding swivel joint)
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Thin profile
• Stylish sleek minimalist design that looks great in any setting.
• Supplied with 360-degree swivel ball joint that allows you to adjust the angle of the shower head
• Rub clean nozzles makes this item easy to clean and maintain

Shower Arm Details

• Arm Height: 150mm
• Finish: Chrome
• Product Type: Contemporary
• Ceiling Mounted
• Supply: Suitable for all plumbing systems
• Inlet Connections: 1/2" BSP
• Working Pressures: Min 0.2bar, Max 8.0bar
• Supplied with metal back nut.
• Designed to be used in conjunction with shower heads/roses shower valves.

 Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images are for illustrative purposes only and may differ from the actual product

All measurements are approximate

Comprises

(1) Milan Large Ultra-Thin Square Shower Head (400 x 400mm)
(1) Chrome Square Ceiling Fed Shower Arm
(1) Milan Twin Modern Square Concealed Shower Valve - Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you will have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
