Milan Square Triple Shower Package (with Diverter Valve, Head, 4 Body Jets + Slider) Chrome

Milan Square Triple Shower Valve (with Diverter, Fixed Head, 4 Body Jets & Slider and Elbow) Chrome

The Milan range brings substantial elegance to the modern bathroom. The triple valve enables you to select body jets or shower handset for a quick freshen up or for a real drenching. Suitable for all types of plumbing installation, this shower valve has the added safety benefit of a built-in anti scald device should the cold-water supply fail. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to a third option.

Triple Concealed Thermostatic Shower Valve with Diverter Details

• Height: 280mm
• Width: 120mm
• Depth: 126mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular backplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two outlets separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Can be fitted vertically or horizontally
• Pipe Size: 15mm (1/2" BSP)

Fixed Square Shower Head with Wall Mounted Arm Details

• Shower Head Size: 200 x 200mm
• Shower Arm Length: 354mm
• Style: Modern
• Shape: Square
• Colour/Finish: Chrome
• Pressure requirement 0.5 bar minimum
• Rainfall Effect
• Inlet Connections: 1/2" BSP
• Rub clean nozzles makes this item easy to clean and maintain
• Supplied with swivel joint and wall mounted square arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

Minimalist Square Body Jet Details

• Require high flow rates when used in conjunctions with an overhead shower.
• High Quality Design
• Colour/Finish: Polished Chrome
• Material: Brass body
• Easy Clean Nozzles to Prevent Lime Scale Build-Up
• Water Pressure: 2.0 bar pressure minimum

Rectangular Slide Rail Kit Details

• Height: 602mm
• Depth: 58mm
• Style: Modern
• Finish: Chrome
• Internal Components: Made of brass
• Recommended Minimum Pressure: 0.1 bar for optimal performance
• Note: Some components are chrome-plated plastic, not metal.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Product images are for illustrative purposes only and may differ from the actual product.

All measurements are approximate

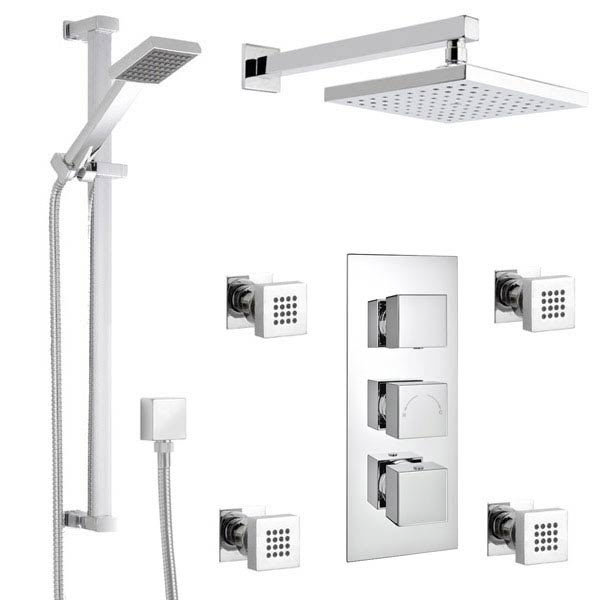

Comprises

(1) 200 x 200mm Square Head - Chrome
(1) Square Shower Arm - Chrome
(1) Triple Concealed Thermostatic Shower Valve with Diverter - Chrome
(1) Rectangular Slide Rail Kit- Chrome
(4) Minimalist Square Body Jet
(1) Square Elbow for Concealed Showers - Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you will have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
