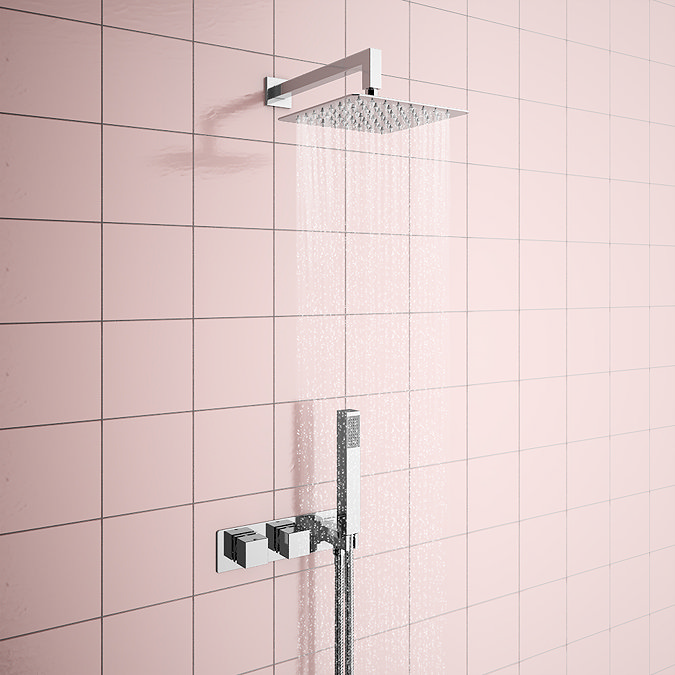

Milan Square Shower System (200mm Fixed Head, Handset + Integrated Parking Bracket)

Milan Polished Chrome Square Shower System (200 x 200mm Ultra-Thin Fixed Overhead Shower Head, Rectangular Handset with Integrated Parking Bracket)

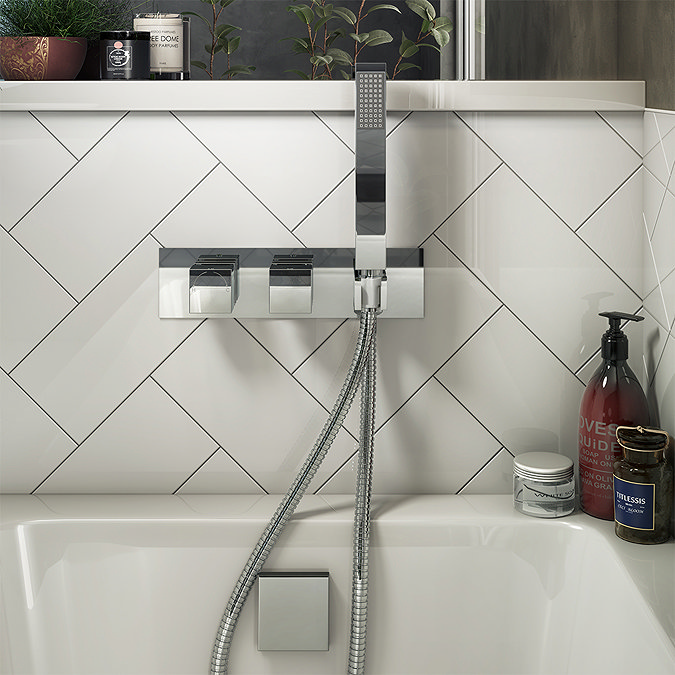

The Milan modern concealed thermostatic control shower valve has been fitted with a handy matching shower handset. You can also be rest assured the clever thermostatic shower valve will always keep your water at a safe temperature. Features minimalist square handles this modern style shower valve comes with a matching stainless steel ultra-thin square shower head and is perfect for installing in a concealed arrangement. Valve diverts between two shower accessories.

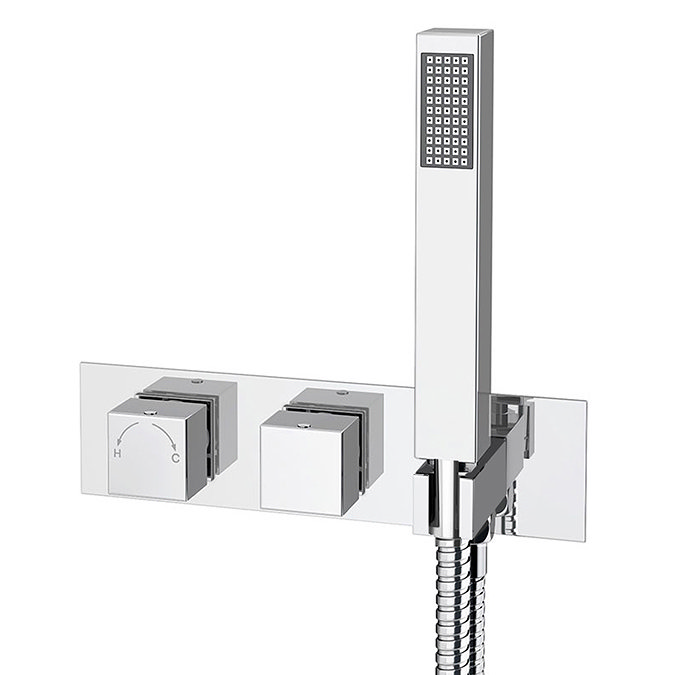

Shower Valve Details

• Width: 280mm
• Style: Modern
• Range: Milan
• Type: Twin Concealed Shower Valve with Diverter
• Valve Handles: Square
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Wall mounted
• Integrated parking bracket
• 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Built-In Diverter
• Includes 1.5m hose and rectangular shower handset
• Shower handset dimensions:
• Height: 205mm
• Width: 29mm
• Should a pump be required we recommend a universal or negative head pump

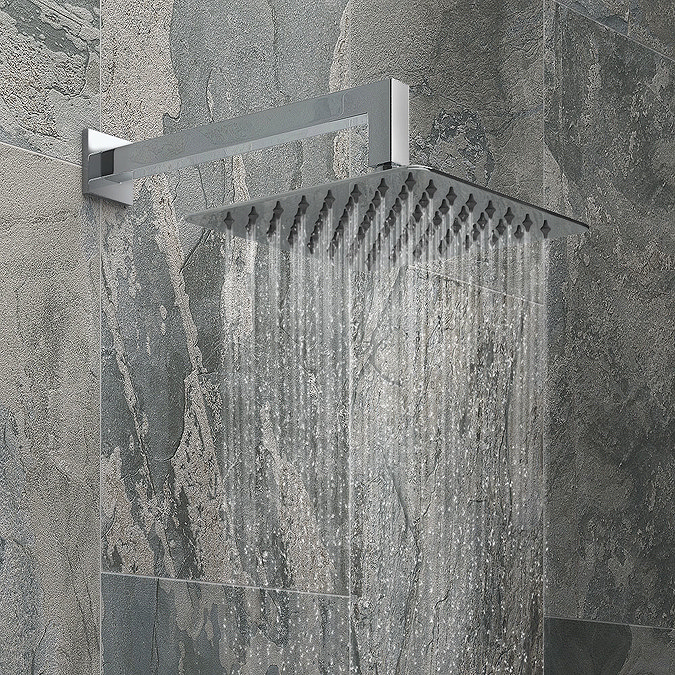

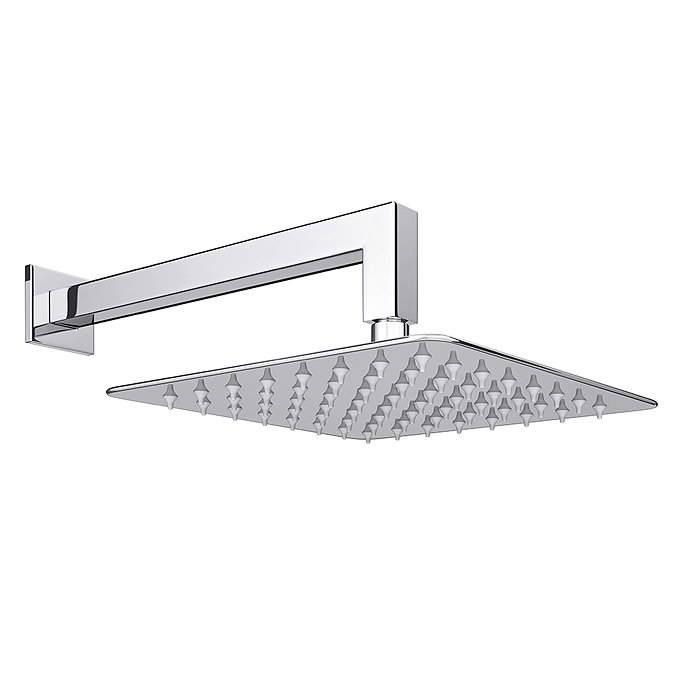

Shower Head + Arm Details

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: 200 x 200mm
• Head Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 388mm
• Wall mounted
• 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Supplied with swivel joint
• Rub clean nozzles makes this item easy to clean and maintain
• Installation of the arm requires rear access behind the wall.

All measurements are approximate

Images are for illustrative purposes only

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Square Wall Mounted Thermostatic Shower Valve (2 Outlets) with Square Lever Handles & Rectangular Handset - Chrome
(1) 200 x 200mm Square Ultra-Thin Shower Head
(1) Square Wall Mounted 90 Degree Bend Shower Arm 388mm - Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you will have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
