Milan Square Modern Shower System with Handset, 4 Body Jets + 200 x 200mm Shower Head

Milan Square Concealed Shower Valve Pack with 3 Outlets (Handset, 4 x Body Jets and Overhead rainfall Shower Head) in Chrome

The Milan Square Concealed Shower Valve Pack with 3 Outlets (Handset, 4 x Body Jets + Overhead Rainfall Shower Head) is a minimalist and modern addition to any bathroom. This 3-way triple function concealed thermostatic shower valve features a built-in diverter, offering thermostatic showering through two easy-to-operate controls. The valve is designed to operate three separate outlets and is adorned with modern square handles.

This pack will complement any modern bathroom suite. The thermostatic shower valve provides a comfortable showering experience, regulated by two user-friendly controls. It operates three separate outlets: a handset, body jets, and an overhead rainfall shower head.

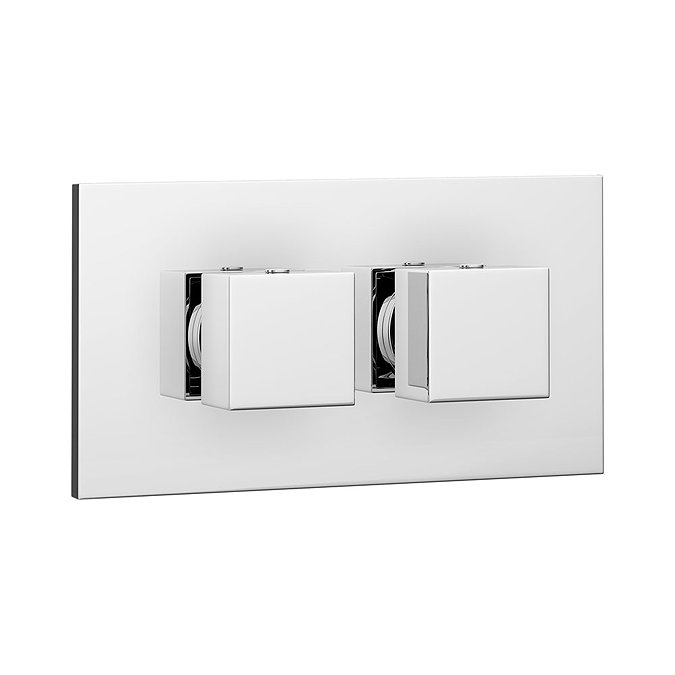

Shower Valve Details:

• Dimensions: 215mm (Height), 120mm (Width), 139mm (Depth)
• Design: High Quality, Modern
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Controls: Square Valve Handles, On/Off and Diverter Combined (Top Control), Thermostat (Bottom Control)
• Features: Thermostatically Controlled, Built-in Diverter, Rectangular Faceplate
• Water Pressure: Operates from 0.5 bar to 5 bar
• Temperature: Hot water ranges from 55 to 85 Degrees
• Installation: Can be fitted vertically or horizontally
• Compatibility: Suitable for modern pressurised plumbing systems. Note: Shower valves will not work efficiently on a gravity-fed tank system unless a booster pump is installed. If a pump is required, we recommend a universal or negative head pump.

Shower Head and Arm Details:

• Style: Modern, Square
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: 200 x 200mm, 3mm thickness (excluding swivel joint)
• Shower Arm Length: 388mm, Wall mounted, 90-degree Bend
• Pressure Requirement: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Features: Supplied with swivel joint, Rub clean nozzles for easy maintenance

Wall Outlet Elbow with Shower Handset Details:

• Dimensions: 150mm (Width), 66mm (Depth)
• Style: Contemporary
• Finish: Highly Polished, Rust Resistant Hose
• Handset: Rectangular, ABS Plastic / Chrome Plated
• Other Components: 1.5m Shower Flex (Brass / Chrome Plated), Rectangular Face-plate (Brass / Chrome Plated), Concealed Outlet Elbow with Parking Bracket (Brass / Chrome Plated)
• Compatibility: Suitable for all plumbing systems

Slim Square Body Jet Details:

• Overall Size: D60 x W50 x H50mm approx.
• Shroud: H50 x W50mm
• Thread: Brass 1/2 inch BSP, 25mm long
• Nozzles: 16 rubber nozzles
• Colour/Finish: Polished Chrome
• Material: Brass
• Product Type: Slim Square Body Jet
• Features: Supplied with swivel joint, Silicone nozzles for easy limescale removal



Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

Please note that all measurements are approximate and images are for illustrative purposes.

The pack comprises:

(1) Milan Square Thermostatic 3 Way Concealed Shower Valve with Diverter
(1) Milan Square Wall Mounted 90 Degree Bend Shower Arm (393mm - Chrome)
(1) Milan Ultra-Thin Square Shower Head with Swivel Joint (200 x 200mm)
(1) Milan Concealed Wall Outlet Elbow with Shower Handset
(4) Milan Slim Square Body Jets

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
