Milan Square Concealed Individual Stop Tap + Thermostatic Control Valve with 300mm Shower Head

Milan Square Concealed Individual Stop Tap + Thermostatic Control Valve with 300 x 300mm Shower Head

The Milan Concealed Individual Stop Tap and Thermostatic Control Shower Valve Pack features a striking modern square design, perfect for concealed installations. This pack includes a 300x300mm wall-mounted fixed shower head, adding a sleek and contemporary touch to your bathroom.

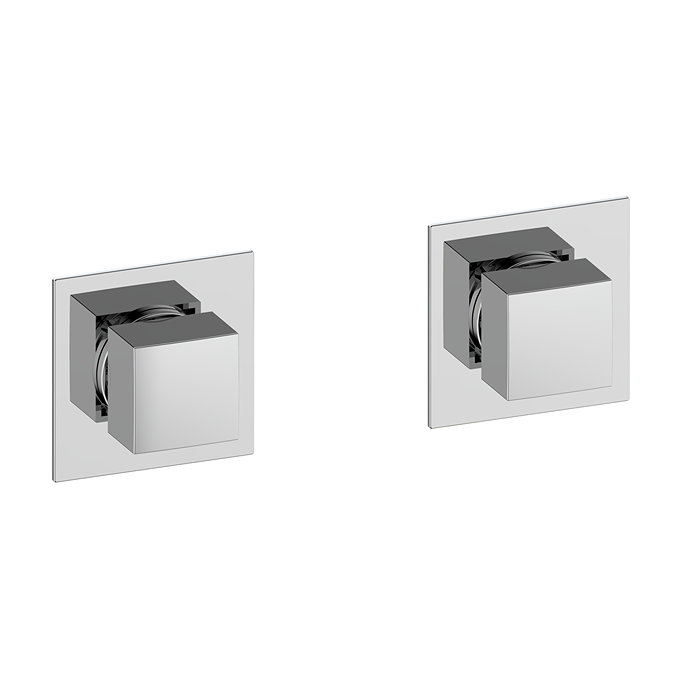

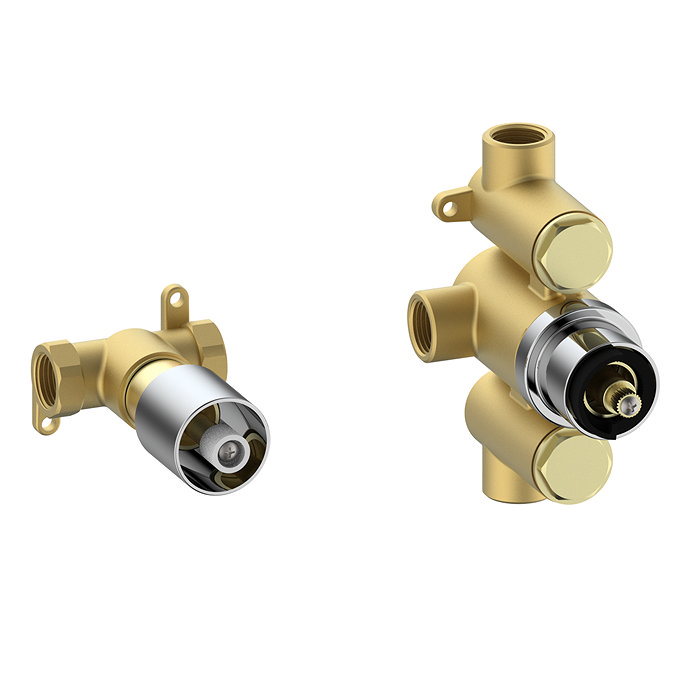

The Milan concealed shower valve offers two individual controls for temperature and flow, ensuring precise water regulation. The brass valve bodies, complemented by chrome-plated square backplates and handles, enhance any modern bathroom.

Designed for a single outlet setup, this shower valve is ideal for pairing with a main shower head.

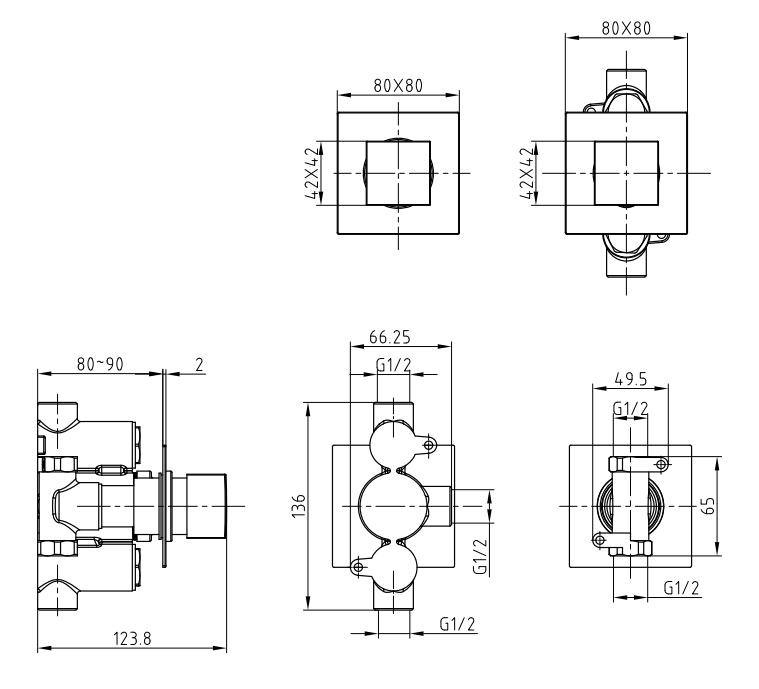

Shower Valve Details:

• Style: Modern
• Range: Milan
• Valve Handles: Square
• Finish: Chrome-plated
• Material: Brass internals
• Installation: Concealed fitting
• Backplates: Square design
• Outlet Compatibility: Suitable for 1 outlet
• Operating Pressure:
• Minimum: 0.5 bar
• Maximum: 5 bar
• System Suitability: Compatible with modern pressurised plumbing systems
• Gravity-Fed Systems:
• Not suitable for standard gravity-fed tank setups without a booster pump
• Recommended pumps: Universal or negative head (Positive head pumps will not work)

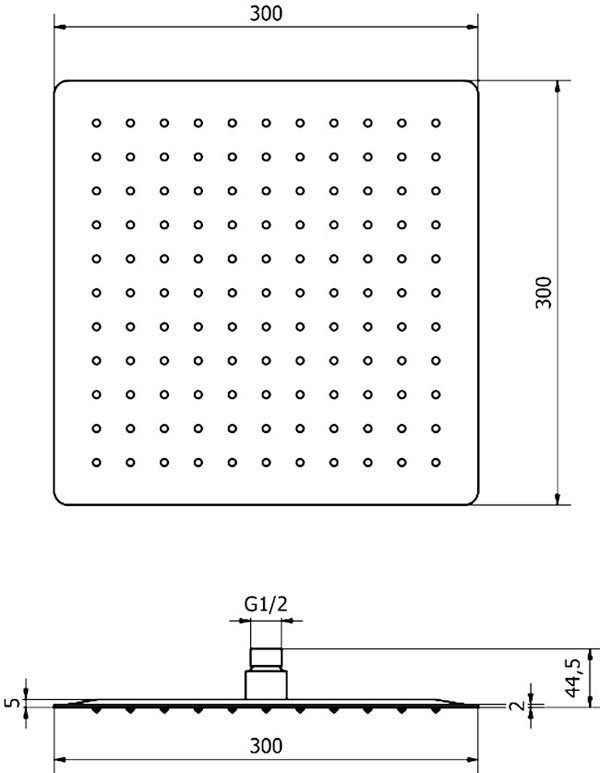

Shower Head Details:

• Head Size: 300 x 300mm
• Arm Length: 388mm
• Style: Modern
• Finish: Chrome effect
• Material: Stainless steel shower head
• Profile Thickness: 3mm (excluding swivel joint)
• Mounting: 90-degree bend wall-mounted design
• Pressure Requirements: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Features:
• Swivel joint for adjustable positioning
• Rub-clean nozzles for easy maintenance
• Shower Head Material: Chrome-plated plastic, not metal

Note:

All images provided are for illustrative purposes only and the measurements are approximate.

Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

The package comprises of:

(1) Individual Stop Tap with Square Backplate
(1) Thermostatic Valve with Square Backplate
(1) Milan 300 x 300mm Ultra-Thin Square Shower Head
(1) 90 Degree Bend Shower Arm

Gravity-Fed Systems Advisory: If you live in an older property, you may have a low-pressure gravity-fed system. Since this shower valve requires a minimum pressure of 0.5 bar, we highly recommend installing a negative or universal pump (sold separately) for optimal performance. Positive head pumps will not work.
