Milan Shower Package (Rainfall Wall Mounted Head, Handset + Freeflow Bath Filler) Chrome

Milan Shower Package (Rainfall Wall Mounted Head, Handset + Freeflow Bath Filler) in Chrome

Introducing the minimalist Milan shower package. This high-quality set includes a triple concealed thermostatic shower valve with a built-in diverter, an ultra-sleek wall-mounted rain effect fixed shower head, a shower handset, and a slimline free flow bath filler. The stylish concealed thermostatic triple shower valve offers thermostatic showering via three easy-to-operate controls. The diverter allows you to switch between three different outlets. Our range of showers is ideal for refreshing the style of your bathroom.

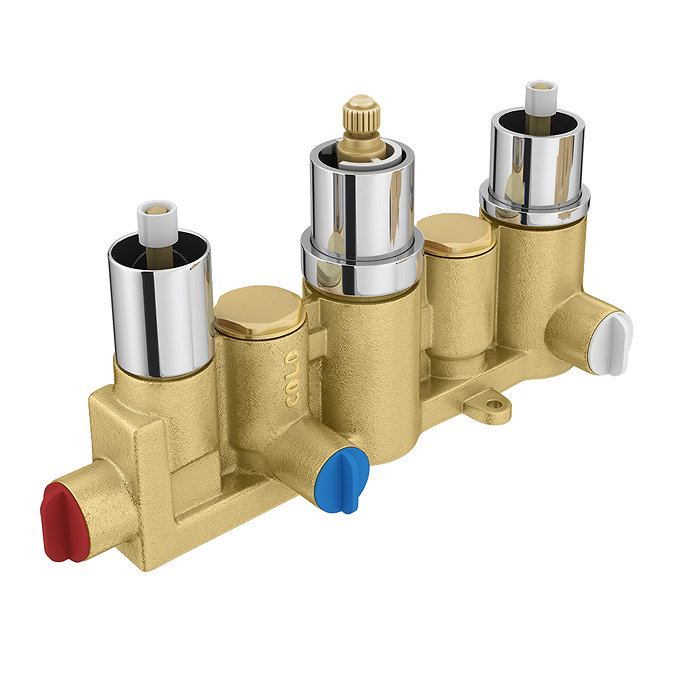

Triple Shower Valve with Diverter Details:

• Height: 280mm
• Width: 120mm
• Depth: 126mm
• High-Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular backplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two outlets separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity-fed systems, a pump will be required. We recommend a universal or negative head pump.
• Can be fitted vertically or horizontally
• Pipe Size: 15mm (1/2" BSP)

Shower Head and Arm Details:

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: 200 x 200mm
• Head Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 388mm
• Wall-mounted
• 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Supplied with swivel joint
• Rub clean nozzles make this item easy to clean and maintain

Slimline Freeflow Bath Filler Details:

• Shape: Square
• Colour: Chrome
• Length: 643mm
• Type: Freeflow Bath Filler Waste and Overflow
• Includes: Click clack waste
• Suitability:
• Compatible with single and double-ended baths
• Suitable for medium-pressure systems (0.5 bar and above)
• Installation Note:
• This bath filler must be fitted on a flat edge.

Square Outlet Elbow with Parking Bracket, Flex + Handset Details:

• Depth: 63mm
• Height: 228mm
• Width: 40mm
• Manufactured To the Highest Standards
• Rectangular Handset with Built-in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex - Brass / Chrome plated
• Outlet Elbow with Parking Bracket - Brass / Chrome plated
• Rectangular handset - ABS plastic / Chrome plated
• Rust-resistant hose
• Highly polished finish
• Square handset holder

Guarantee: 5 Year (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

Please note: All measurements are approximate, and images are for illustrative purposes only.

Package Includes:

(1) Milan Triple Square Concealed Thermostatic Shower Valve with Diverter
(1) Milan 200 x 200mm Ultra-Thin Square Shower Head
(1) 90 Degree Bend Wall Mounted Arm
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems: If you live in an older property, there’s a good chance you will have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar, therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
