Milan Shower Package (incl. 400x400mm Square Rainfall Shower Head + Wall Mounted Handset)

Milan Concealed Shower Package incl. 400x400mm Ceiling Mounted Square Rainfall Fixed Shower Head + Wall Mounted Handset Chrome

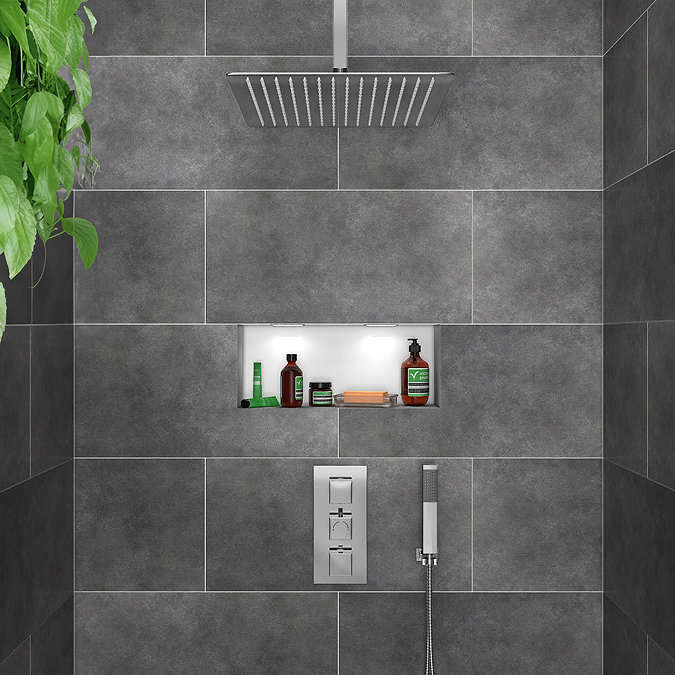

Bring a cool and contemporary aesthetic to your bathroom or wet room with the Milan Shower Package. The set includes a large rainfall shower head to add a touch of luxury to your space. A concealed 3 outlet shower valve lets you switch between the head and separate handheld shower or use them at the same time. Longing for a blissful shower experience? Use the intuitive handles to tailor the temperature and flow exactly to your liking. Each piece in this set has a simple, angular design and features a gleaming polished chrome finish for a distinctly modern look.

Shower Valve Details

• Width: 120mm
• Depth: 126mm
• Height: 280mm
• High Quality Design
• Finish: Polished Chrome
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Backplate
• Style: Modern

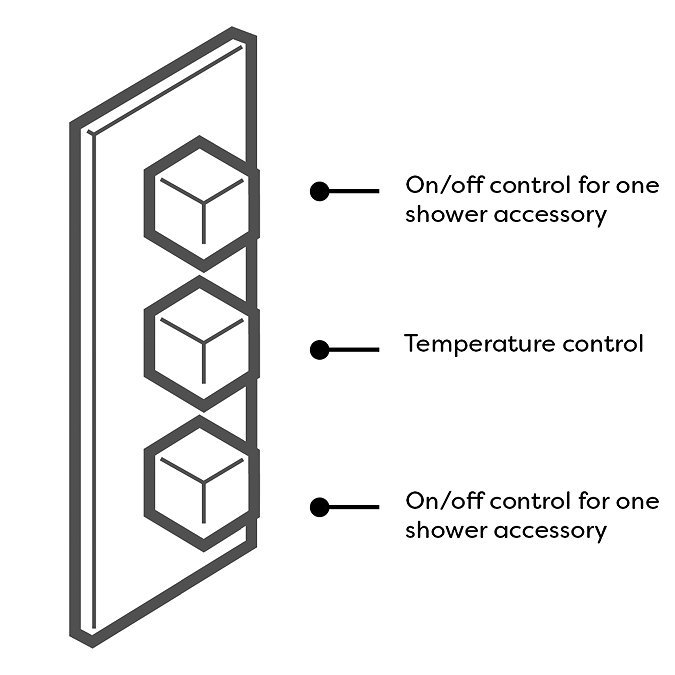

• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• The shower valve will not work efficiently on a gravity fed tank system unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

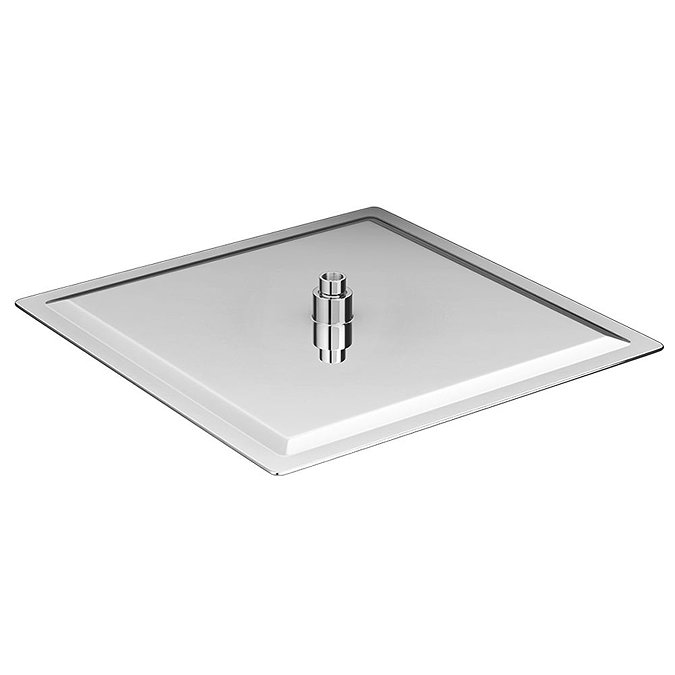

Shower Head Details

• Size: 400 x 400mm
• Style: Modern
• Shape: Square
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Thickness/Profile: 7mm (excluding swivel joint)
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Thin profile
• Stylish sleek minimalist design that looks great in any setting.
• Supplied with 360-degree swivel ball joint that allows you to adjust the angle of the shower head
• Rub clean nozzles makes this item easy to clean and maintain

Shower Arm Details

• Height: 150mm
• Finish: Chrome
• Product Type: Contemporary
• Ceiling Mounted
• Supply: Suitable for all plumbing systems
• Inlet Connections: 1/2" BSP
• Working Pressures: Min 0.2bar, Max 8.0bar
• Supplied with metal back nut.
• Designed to be used in conjunction with shower heads/roses shower valves.

Square Outlet Elbow with Parking Bracket, Flex + Handset Details

• Depth: 63mm
• Height: 228mm
• Width: 40mm
• Manufactured To the Highest Standards
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex - Brass / Chrome plated
• Outlet Elbow with Parking Bracket - Brass / Chrome plated
• Rectangular handset - ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Square handset holder

Product images are for illustrative purposes only and may differ from the actual product

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

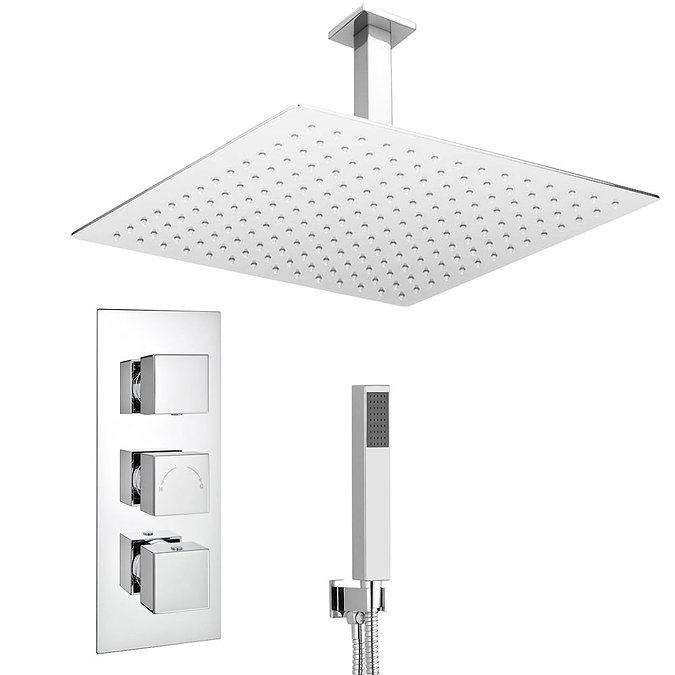

Comprises

(1) Milan Chrome Triple Square Concealed Thermostatic Shower Valve
(1) Milan Large Ultra-Thin Square Shower Head (400 x 400mm)
(1) Chrome Square Ceiling Fed Shower Arm
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
