Milan Shower Pack (Rainfall / Waterfall Shower Head, Outlet Elbow w. Parking Bracket + Handset)

Milan Shower Pack (Rainfall / Waterfall Shower Head, Outlet Elbow with Parking Bracket, Flex + Handset)

Bring a modern touch to your bathroom with the striking geometric design of this Milan Shower Pack. The fixed shower head offers dual functions – choose rainfall for a gentle overall soaking or switch to waterfall for an immersive spa like experience. This shower's thermostatic properties also mean the temperature stays constant even if someone fills a kettle elsewhere in your home. A sleek chrome outlet elbow with parking bracket holds the pencil wand handset firmly in place. Tuck the 3 outlet shower valve behind your wall, and use the controls to set the perfect temperature, flow and function.

Shower Head Details

• Projection: 500mm
• Width: 220/240mm
• Height: 30/80mm
• Type: Overhead Fixed Shower head with integrated arm rectangular Rain and waterfall functions
• Finishes: Chrome Effect
• Material: Stainless Steel
• Wall Mounted
• Rub clean nozzles makes this item easy to clean and maintain
• Inlet Connections: 1/2" BSP
• Recommended water pressure: 0.5 - 3 bar
• Max Water pressure: 8 bar

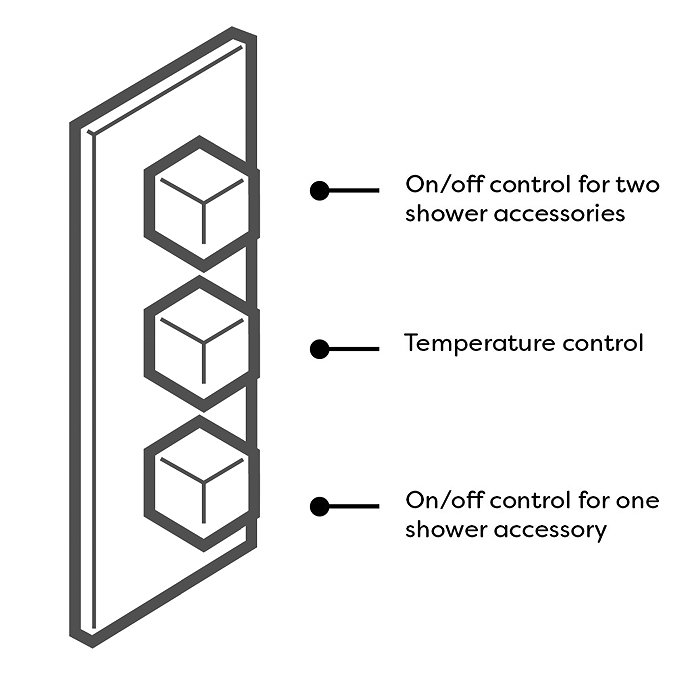

Triple Shower Valve with Diverter Details

• Height: 280mm
• Width: 120mm
• Depth: 126mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular backplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar
• Operates two outlets separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Can be fitted vertically or horizontally
• Pipe Size: 15mm (1/2" BSP)

Shower Handset Details

• Depth: 63mm
• Height: 228mm
• Width: 40mm
• Manufactured To The Highest Standards
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex -  Brass / Chrome plated
• Outlet Elbow with Parking Bracket - Brass / Chrome plated
• Rectangular handset - ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Square handset holder

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Comprises

(1) Milan Rectangular Rainfall Shower Head + Water Blade

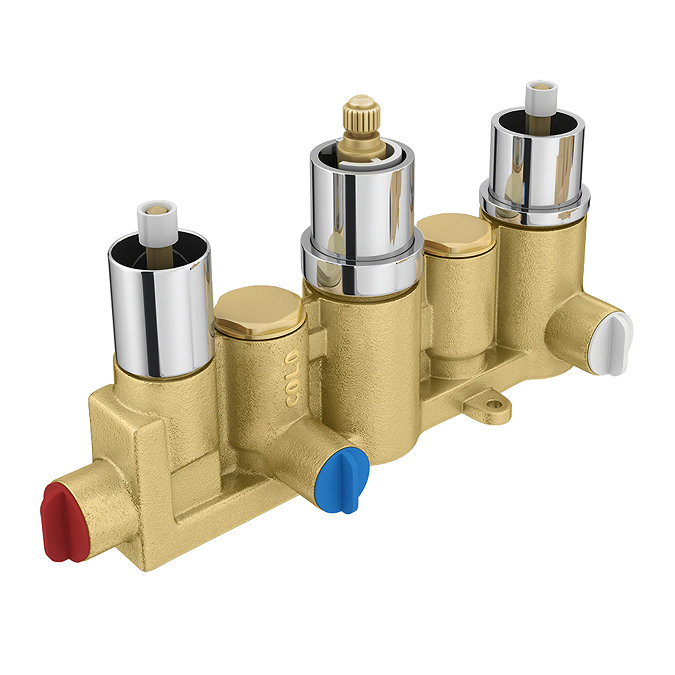

(1) Milan Triple Square Concealed Thermostatic Shower Valve with Diverter - Chrome
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
