Milan Modern Shower Package (Fixed Shower Head + Overflow Bath Filler)

Milan Modern Shower Package (Fixed Shower Head + Overflow Bath Filler) in Polished Chrome

The Milan Modern Shower Package (Fixed Shower Head + Overflow Bath Filler) in Polished Chrome offers a minimalist design that adds substantial elegance to the modern bathroom range. This package features a stylish concealed thermostatic valve with a diverter, offering thermostatic showering via two easy-to-operate controls for temperature and flow. It diverts between two outlets: the fixed head and the overflow bath filler.

Shower Valve Details:

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Rectangular Backplate
• Can be fitted vertically or horizontally
• Water Pressure: 0.5 bar to 5 bar
• Outlets: 2
• Built-In Diverter
• Suitable for modern pressurised plumbing systems.
• Hot water temperature: 55 to 85 Degrees
• The shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. Should a pump be required, we recommend a universal or negative head pump.

Shower Head and Arm Details:

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: 200 x 200mm
• Head Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 388mm
• Wall-mounted
• 90-degree Bend
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Supplied with swivel joint
• Rub clean nozzles make this item easy to clean and maintain

Square Slimline Freeflow Bath Filler Details:

• Shape: Square
• Colour: Chrome
• Length: 643mm
• Type: Freeflow Bath Filler Waste and Overflow
• Includes: Click-clack waste
• Compatibility: Suitable for single and double-ended baths and medium-pressure systems (0.5 bar and above)
• Installation Note: Must be fitted on a flat edge.
• Please note that the Freeflow Bath Filler must be fitted on a flat edge.



The product comes with a 5-year guarantee (1-year on serviceable parts, for example, internal components such as check valves and cartridges).

All measurements are approximate, and pictures are for illustration purposes only.

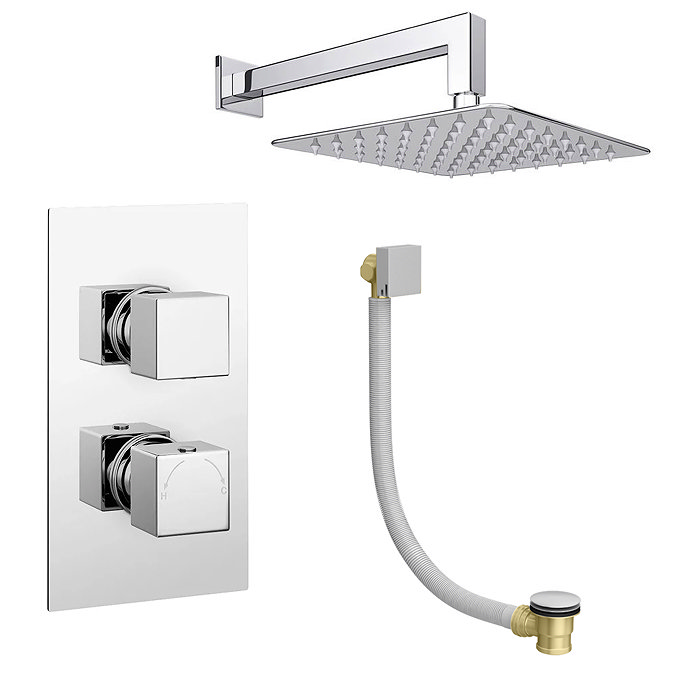

The package comprises:

(1) Twin Square Concealed Shower Valve with Built-In Diverter
(1) 200 x 200mm Ultra-Thin Square Shower Head with Wall Mounted Arm
(1) Square Slimline Freeflow Bath Filler

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
