Milan Concealed Thermostatic Valve with Diverter, Fixed Shower Head + 4 Body Jets

Milan Concealed Thermostatic Valve with Diverter, Fixed Shower Head and 4 Body Jets in Chrome

The stylish Milan shower package includes a concealed thermostatic shower valve with diverter, a square fixed shower head, and four slim body jets. This shower pack will complement any modern bathroom suite, offering thermostatic showering via two easy-to-operate controls for temperature and flow. This shower valve has the added safety benefit of a built-in anti-scald device should the cold-water supply fail, and it diverts between two shower accessories: fixed head/body jets.

Shower Valve Details:

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Material: Brass Internals
• Control: Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Faceplate: Rectangular
• Installation: Can be fitted vertically or horizontally
• Feature: Built-In Diverter
• Compatibility: Suitable for modern pressurised plumbing systems
• Temperature Range: Hot water temperature 55 to 85 degrees
• The shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. Should a pump be required, we recommend a universal or negative head pump.

Shower Head Details:

• Dimensions: 200 x 200mm
• Style: Modern
• Colour/Finish: Chrome
• Shape: Square
• Pressure Requirement: 0.5 bar minimum
• Effect: Rainfall
• Inlet Connections: 1/2" BSP
• Maintenance: Rub-clean nozzles make this item easy to clean and maintain
• Additional Feature: Head comes complete with swivel joint and wall-mounted square arm
• Material: Chrome plated plastic, not metal
• Installation: Requires rear access behind the wall

Body Jet Details:

• Thread: Brass 1/2 inch BSP thread - 25mm long
• Colour/Finishes: Polished Chrome
• Material: Brass
• Type: Slim Square Body Jet
• Additional Feature: Supplied with swivel joint; silicone nozzles allow limescale deposits to be easily rubbed away

Additional Information:
Pictures are for illustrative purposes only.
All measurements are approximate.

Guarantee: 5 Years (1 Year on serviceable parts such as internal components like check valves and cartridges)
Shower head and arm guaranteed for 2 years

Comprises:

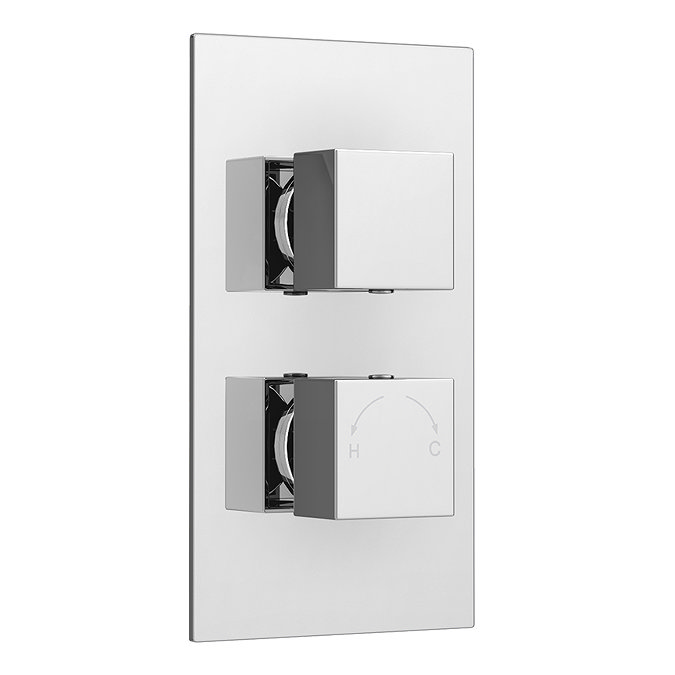

(1) Milan Twin Square Concealed Shower Valve with Diverter - Chrome
(1) 200 x 200mm Square Head
(1) Square Shower Arm
(4) Body Jets

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar; therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
