Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head Large Image
Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head
Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head
Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head Large Image

Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head

Part No.: MSHWPK

£219.95

|

In Stock

Spare Parts Available for This Item

Overview

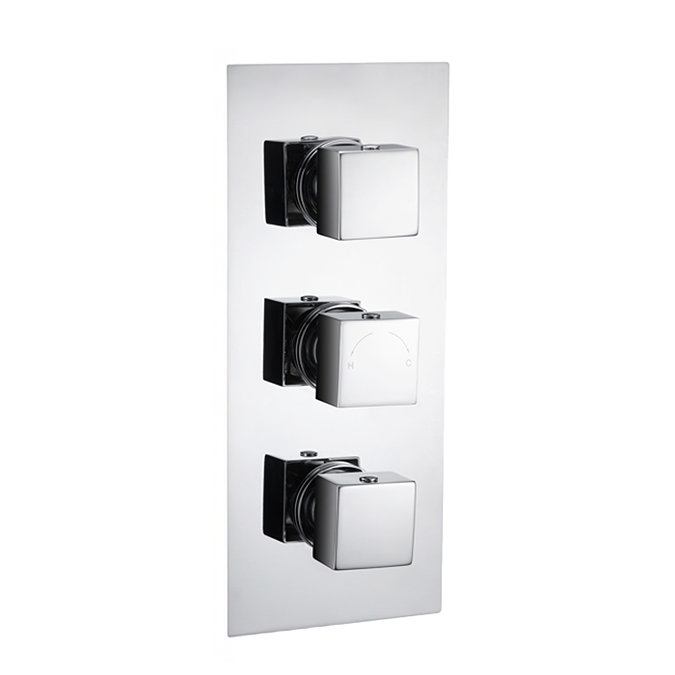

Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head Chrome

This Concealed Shower Mixer from Milan combines sleek, ultra-modern design with a range of ways to vary your experience. Its thermostatic valve is hidden away neatly in the wall, leaving only the contemporary chrome control plate on display for an uncluttered look. The overhead shower and handset boast a distinctive square design and can be operated either separately or simultaneously, so you can choose exactly how and where to direct the flow.

Shower Valve Details

  • Width: 120mm
  • Depth: 126mm
  • Height: 280mm
  • High Quality Design
  • Finish: Polished Chrome
  • Brass Internals
  • Thermostatically controlled
  • Valve Handles: Square
  • Rectangular Faceplate
  • Outlets: 2
  • Style: Modern
  • Operates two points separately or simultaneously
  • Water Pressure: 0.5 bar to 5 bar
  • Suitable for modern pressurised plumbing systems.
  • Can be fitted vertically or horizontally
  • Hot water temperature 55 to 85 Degrees
  • Should a pump be required we recommend a universal or negative head pump

Shower Head Details

  • Shower head dimensions: 200 x 200mm
  • Shower arm length: 354mm
  • Style: Modern
  • Colour/Finish: Chrome
  • Pressure requirement 0.5 bar minimum
  • Supplied with swivel joint and wall mounted square arm.
  • Shower head chrome plated plastic, not metal.
  • Installation of the arm requires rear access behind the wall.

Slide Rail Kit Details

  • Height: 602mm
  • Depth: 58mm
  • Style: Modern
  • Finish: Chrome
  • Internal Components: Made of brass
  • Recommended Minimum Pressure: 0.1 bar for optimal performance
  • Note: Some components are chrome-plated plastic, not metal.


Pictures for illustrative purposes only

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Comprises

(1) 200 x 200mm Square Head
(1) Square Shower Arm
(1) Triple Square Concealed Thermostatic Shower Valve
(1) Rectangular Slide Rail Kit with Square Outlet Elbow

Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.

Product Overview

Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head
Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head
Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head
Milan Concealed Shower Valve with Slide Rail Kit + Wall Mounted Fixed Head

7 Questions

Can you upgrade to a 300mm rain head?

Asked by Kevin

ANSWER

Customer Services. replied on 22nd March 2022

Hi , If you contact us via Live Chat, a member of our customer service team will be more than happy to assist with your query. Thanks.

how far can the controls be from the shower heads

Asked by alex

ANSWER

Nathan replied on 16th June 2021

Hi there, Thank you for your question. There are no restrictions on the shower valve and head supplied to stipulate a distance. We would also suggest within reason. Kind Regards.

Is this shower suitable for over a bath?

Asked by Fully

ANSWER

Nathan replied on 18th January 2021

Hello, Thank you for your question. Yes, I cannot see this being an issue. Kind Regards.

Guarantee

Asked by steve shrosbree

ANSWER

Shaun replied on 9th July 2019

Hi there Steve, The Guarantee for this Milan Concealed Shower Valve begins on receipt of the item and will run for the duration mentioned in the item description. There is no need to register this product. Just be sure to keep proof of purchase. Hope this helps!

Head Pivot?

Asked by Mart

ANSWER

Shaun replied on 6th June 2019

Hello there Mart, The overhead shower supplied with this Milan Concealed Shower Valve can pivot to your desired position. Hope this helps! Shaun

How much capacity Kw combi boiler required for this shower set ?

Asked by CHAKRADHAR

ANSWER

Shaun replied on 30th May 2019

Hey Chakradhar, This Milan Concealed Shower Valve requires a minimum pressure of 0.5 BAR on both hot and cold feeds to the shower. However, this is not an indication of the KW's required by your combination boiler. We recommend that you check the water pressure at the closest point of entry to where this product is to be installed. Ensure you have the required pressure of 0.5 BAR or over. All the best, Shaun

How do you connect the shower arm to the wall?

Asked by Jo

ANSWER

Shaun replied on 30th May 2019

Hey Jo, Our favoured, fixing method would be to fix a 1/2 inch backplate elbow into the wall. Make sure to use PTFE tape around the external thread of the wall arm. Then screw in from the front once the wall has been finished. Hope this helps Shaun
