Milan 2 Outlet Shower System (Fixed Shower Head + Overflow Bath Filler)

Part No.: MIL2SS

£239.95

In Stock

Spare Parts Available for This Item

Overview

Milan Modern Concealed Shower System (2 Outlet Triple Shower Valve, Fixed Shower Head + Overflow Bath Filler)

The Milan shower system epitomizes minimalist elegance with its triple concealed thermostatic shower valve, complete with stylish square handles. It includes a wall-mounted shower head and an overflow bath filler with a click-clack waste, adding substantial elegance to any modern bathroom.

This sleek concealed thermostatic shower system provides thermostatic showering through three easy-to-operate controls, offering separate adjustments for temperature and flow. It can operate two outlets—either separately or simultaneously (fixed head and overflow bath filler).

Shower Valve Details:

  • Width: 120mm
  • Depth: 126mm
  • Height: 280mm
  • Design: High-Quality Modern Style
  • Finish: Polished Chrome
  • Material: Brass Internals
  • Temperature Control: Thermostatically controlled for safety
  • Handles: Square
  • Backplate: Rectangular
  • Outlets: 2
  • Water Pressure: Suitable for 0.5 bar to 5 bar
  • Installation: Can be fitted vertically or horizontally
  • Temperature Range: Hot water temperature from 55 to 85 Degrees
  • Note: Inefficient on gravity-fed tank systems without a booster pump. A universal or negative head pump is recommended (sold separately).

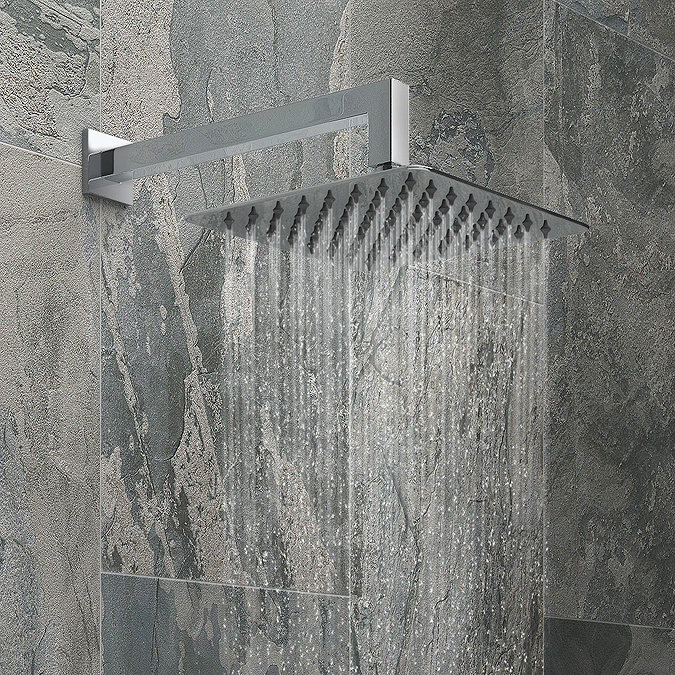

Shower Head + Arm Details:

  • Style: Modern
  • Colour/Finish: Polished Chrome
  • Material: Stainless Steel
  • Dimensions: 200 x 200mm Shower Head, 3mm Thickness (excluding swivel joint), 388mm Arm Length
  • Mounting: Wall-mounted with a 90-degree bend
  • Pressure Requirement: Minimum 0.5 bar
  • Connections: 1/2" BSP Inlet
  • Features: Swivel joint and rub-clean nozzles for easy maintenance

Square Slimline Freeflow Bath Filler Waste Details:

  • Shape: Square
  • Colour: Chrome
  • Length: 643mm
  • Type: Freeflow Bath Filler Waste and Overflow
  • Includes: Click-clack waste
  • Compatibility: Suitable for single and double-ended baths and medium-pressure systems (0.5 bar and above)
  • Installation Note: Must be fitted on a flat edge.



Guarantee: 5 years, with a 1-year warranty on serviceable parts such as check valves and cartridges.

Please note: All measurements are approximate, and images are for illustrative purposes only.

Package Comprises:

(1) Triple Square Concealed Thermostatic Shower Valve
(1) Square Wall Mounted 90 Degree Bend Shower Arm
(1) 200 x 200mm Ultra-Thin Square Shower Head with Swivel Joint
(1) Square Slimline Freeflow Bath Filler Click Clack Waste

For Gravity Fed Systems: Owners of older properties with low-pressure gravity-fed systems will require a minimum pressure of 0.5 bar for this shower valve. We recommend installing a negative or universal pump (sold separately) for optimal performance. Positive pumps are not compatible.
