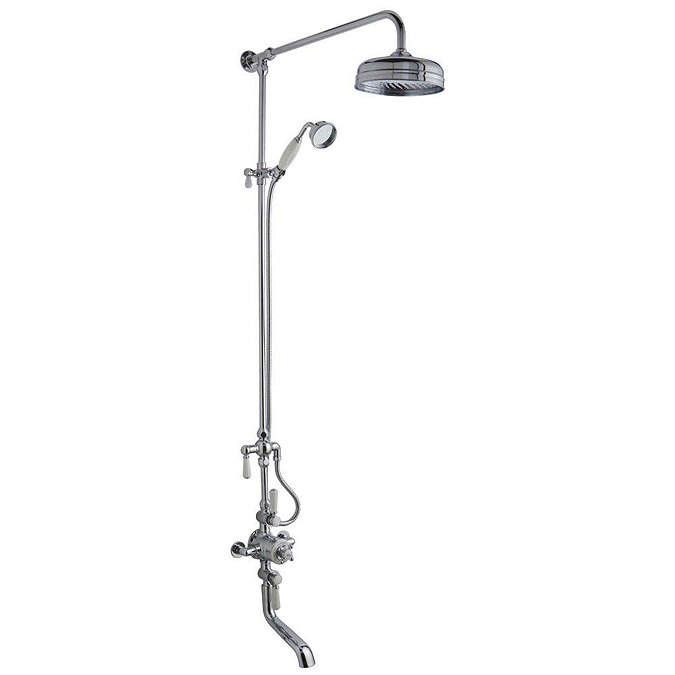

Hudson Reed Topaz Triple Thermostatic Shower Valve with Rigid Riser Kit & Bath Spout

Hudson Reed Topaz Triple Thermostatic Shower Valve with Rigid Riser Kit & Bath Spout - TSVT103

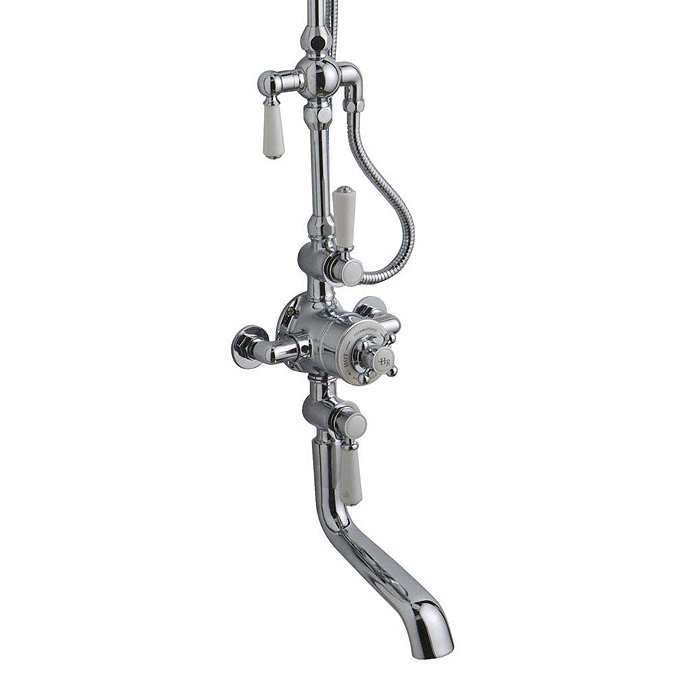

The Topaz triple exposed thermostatic shower valve is robust and graceful with the precision of modern day design. Its distinct ceramic control dial brings substantial elegance to the modern bathroom. Comes with a built-in diverters. The classically styled thermostatic shower valve has been made from solid brass with a chrome finish and incorporates a built-in anti-scald device for complete peace of mind when showering. Easy to operate - the top lever control operates the overhead shower or handset, the central crosshead control adjusts the temperature and the bottom lever control operates the bath spout.

The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing, simply remove the cartridge turn 180° and replace. The cartridge is also highly resistant to calcium build up - even in hard water areas.

Product Details

• Brand: Hudson Reed
• Height: 1440mm
• Width: 195mm
• Depth: 667mm
• Valve/Cartridge Type - 1/4 Turn Ceramic Disc
• Pipe Size - 15mm (1/2" BSP)
• Finish: Chrome
• Manufactured from solid brass

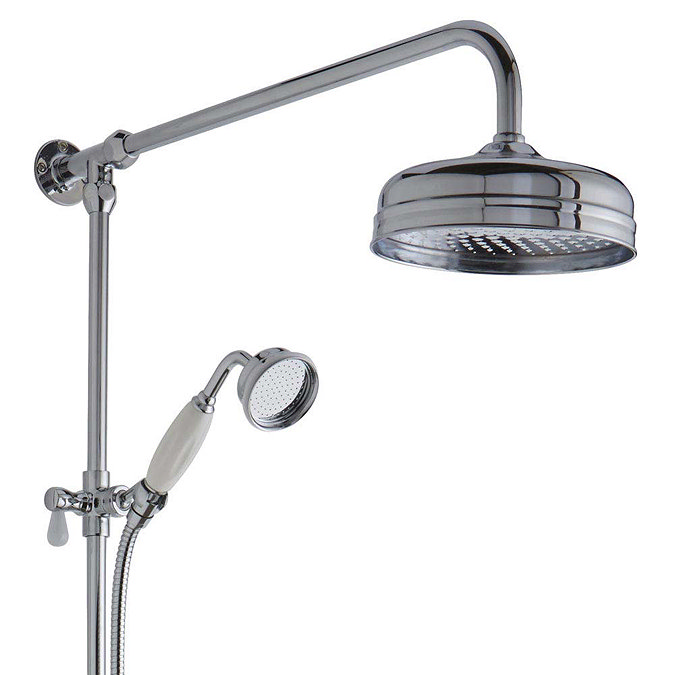

• Rigid riser kit with shower valve & spout
• Water Pressure - MP - 0.5 bar pressure minimum
• Thermostatic
• Anti-scald
• High Quality Design
• Made in Britain
• Thermostatic control to +/- 1 degree - even if the water pressure fluctuates
• Suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
• Pipe Centres: 150mm

20 Year guarantee

Flow Rates

0.1 Bar - 4.5 l/m
0.5 Bar - 13 l/m
1.0 Bar - 18.5 l/m
2.0 Bar - 26 l/m
3.0 Bar - 33 l/m
