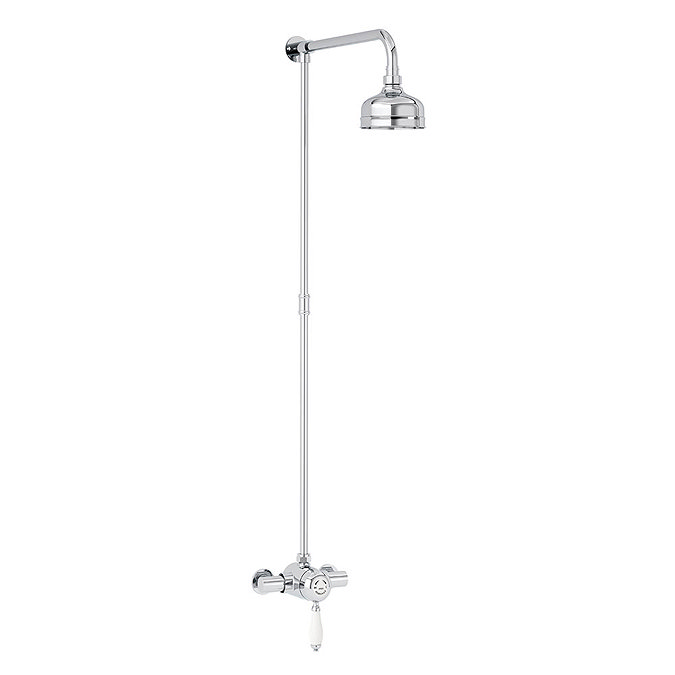

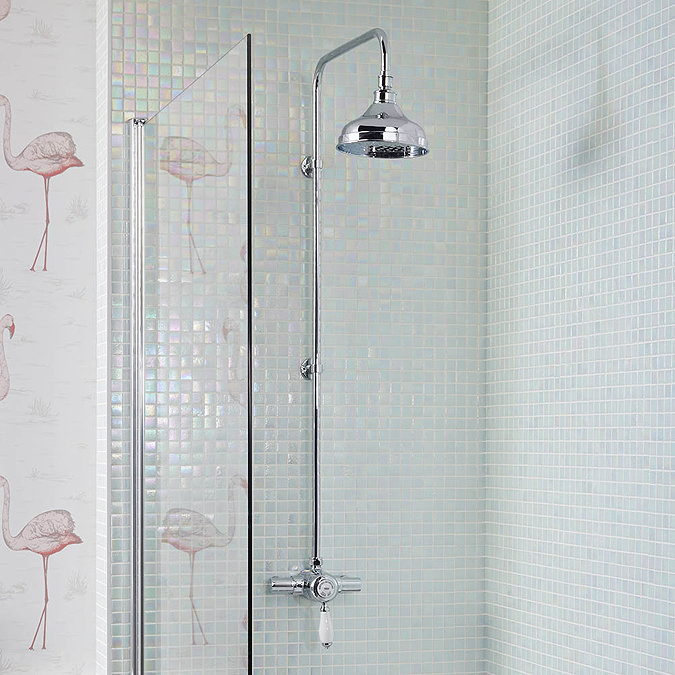

Heritage - Ryde Mini Valve with Fixed Kit - Chrome
Part No:SLCSINMIN01
Discontinued
Product Information
Heritage - Ryde Mini Valve with Fixed Kit - Chrome - SLCSINMIN01
The classic easy to use traditional Ryde mini exposed shower Valve with fixed shower Kit from Heritage Bathrooms, this enchanting Ryde shower comes in a luxury chrome finish, adding sparkling glamour to any bathroom. Comes with a 5 year guarantee.
Product Details
Compliance & Approvals - Manufactured to comply with WRAS
Guarantee - 5 Year
Flow Rates
0.2 Bar - (Handset) 2.32 l/m
0.5 Bar - (Handset) 3.67 l/m
1.0 Bar - (Handset) 5.2 l/m
2.0 Bar - (Handset) 7.35 l/m
3.0 Bar - (Handset) 9 l/m
5.0 Bar - (Handset) 11.62 l/m
The classic easy to use traditional Ryde mini exposed shower Valve with fixed shower Kit from Heritage Bathrooms, this enchanting Ryde shower comes in a luxury chrome finish, adding sparkling glamour to any bathroom. Comes with a 5 year guarantee.
Product Details
- Height - 980mm
- Projection - 411mm
- Valve width - 110-155 (centres)
- Rose diameter - 123mm
- Product Code: SLCSINMIN01
- Colour/Finish: Chrome
- Product Type: Traditional
- Construction: Body is of brass construction
- Cartridge Type: Thermostatic Cartridge
- Supply: Suitable for all plumbing systems preferably balanced
- Inlet Connections: 15mm Compression Elbows
- Outlet Connections: G 1/2"
- Working Pressures: Min 0.1bar, Max 5.0bar
- Single control – Flow & temperature are controlled sequentially.
- Thermostatic cartridge maintains showering temperature to +/-1 by compensating for changes in the incoming water temperature & pressure providing a stable outlet temperature.
- Automatic shut off in the event of hot or cold water failure, thus reducing the risk of injury.
- Factory set to a minimum of 41ºC to eliminate the ability to select an unsafe temperature, this can be adjusted to suit user preference.
- Swivel inlet elbows with 110-155 centres, valves can be fed top, bottom or rear.
- Chrome plated to BS EN 248
Compliance & Approvals - Manufactured to comply with WRAS
Guarantee - 5 Year
Flow Rates
0.2 Bar - (Handset) 2.32 l/m
0.5 Bar - (Handset) 3.67 l/m
1.0 Bar - (Handset) 5.2 l/m
2.0 Bar - (Handset) 7.35 l/m
3.0 Bar - (Handset) 9 l/m
5.0 Bar - (Handset) 11.62 l/m
