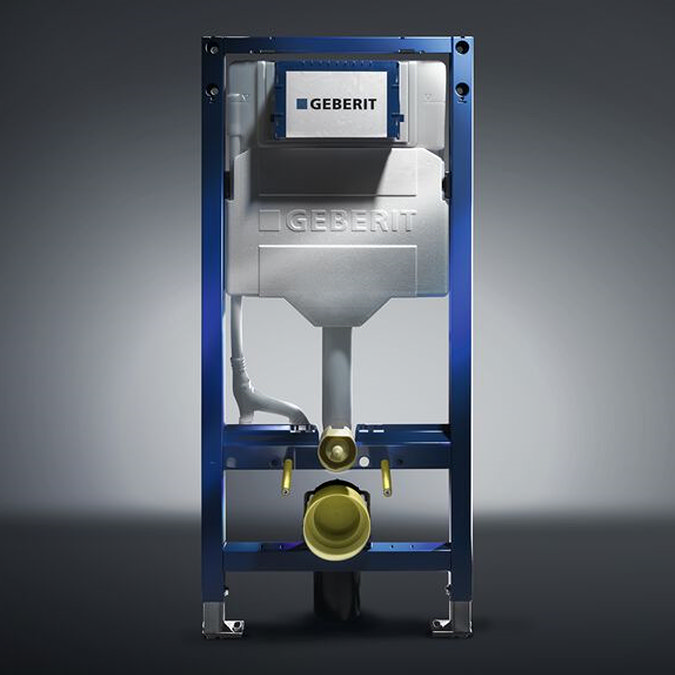

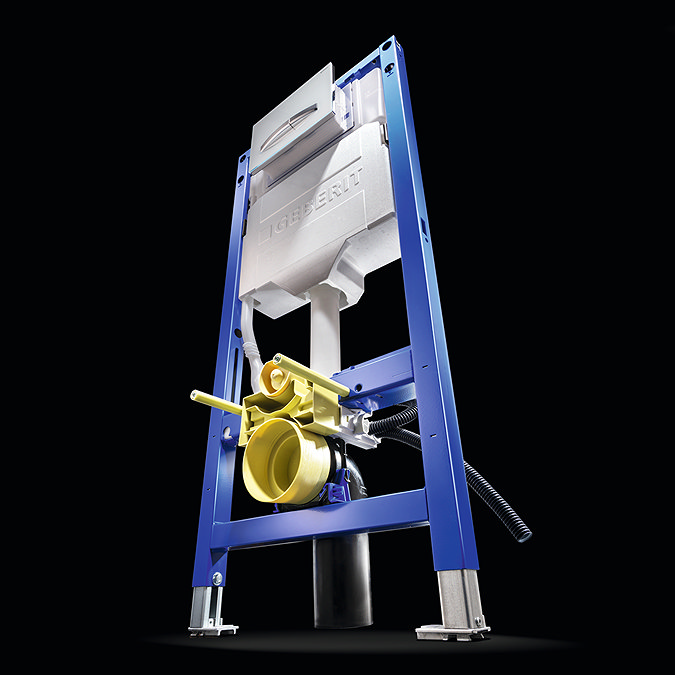

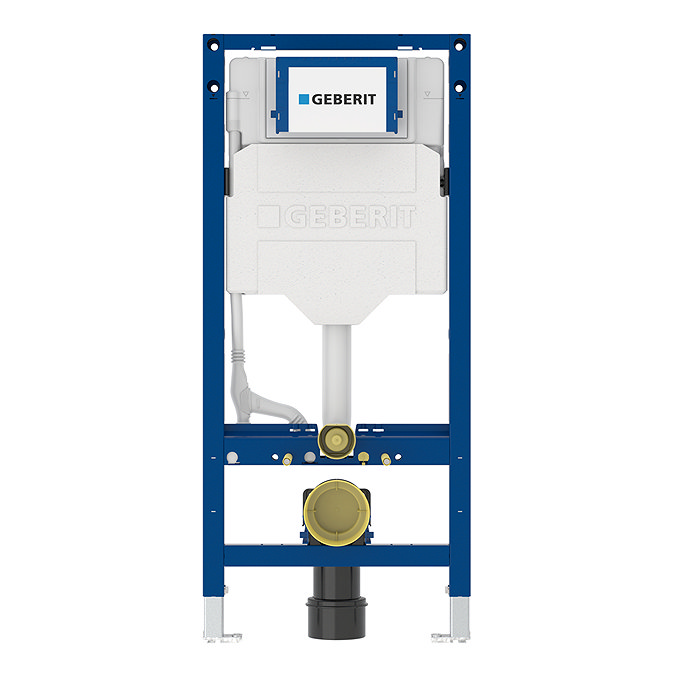

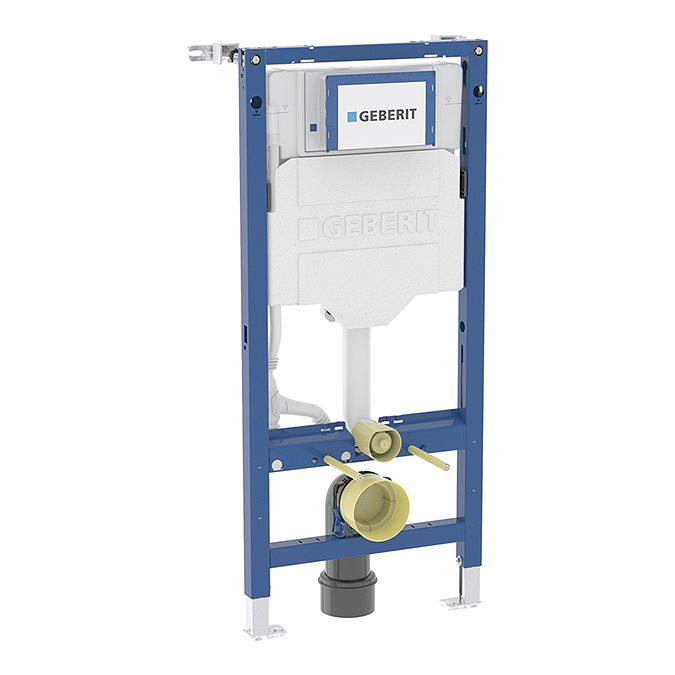

Geberit Duofix 1120mm WC Frame Blue With Sigma 120mm Concealed Cistern

Geberit Duofix 1120mm WC Frame Blue With Sigma 120mm Concealed Cistern - 111.383.00.6

This next-generation redesigned Geberit Sigma Frame & Cistern for Wall-Hung WC’s combines 60 years of engineering expertise and installer feedback to deliver you an enhanced performance, faster installation, and superior sustainability.

Key Upgrades - Performance:

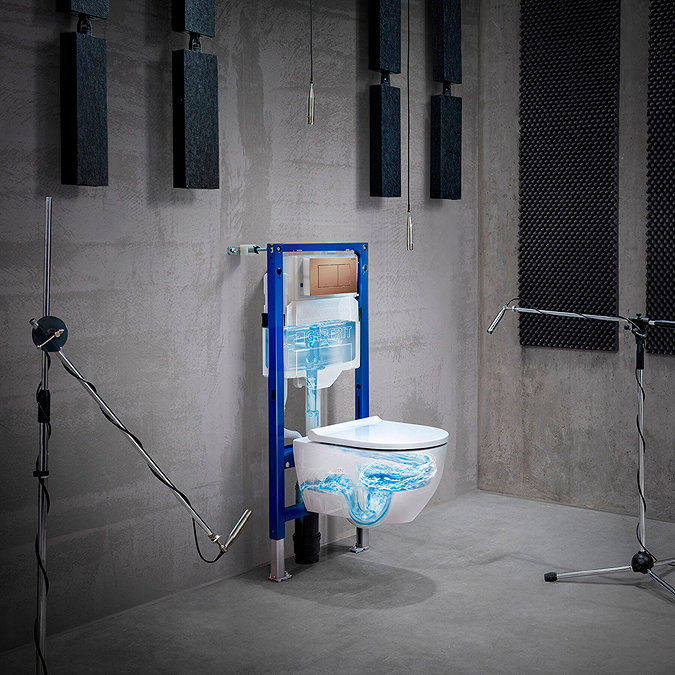

• Over 30% quieter than before
• Optimised Hydraulics with upgraded Type 383 fill valve and Type 212 flush valve for ultra-quiet, water-saving performance (2-4L small/5.8L large)

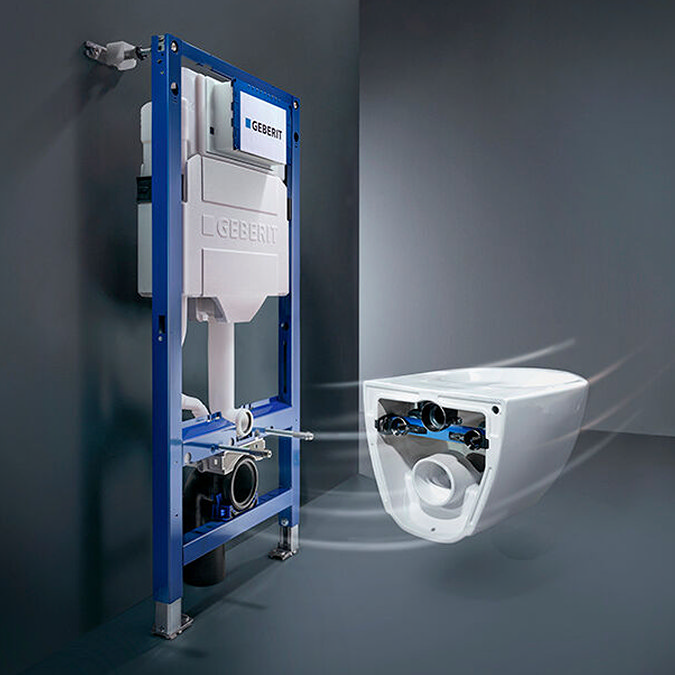

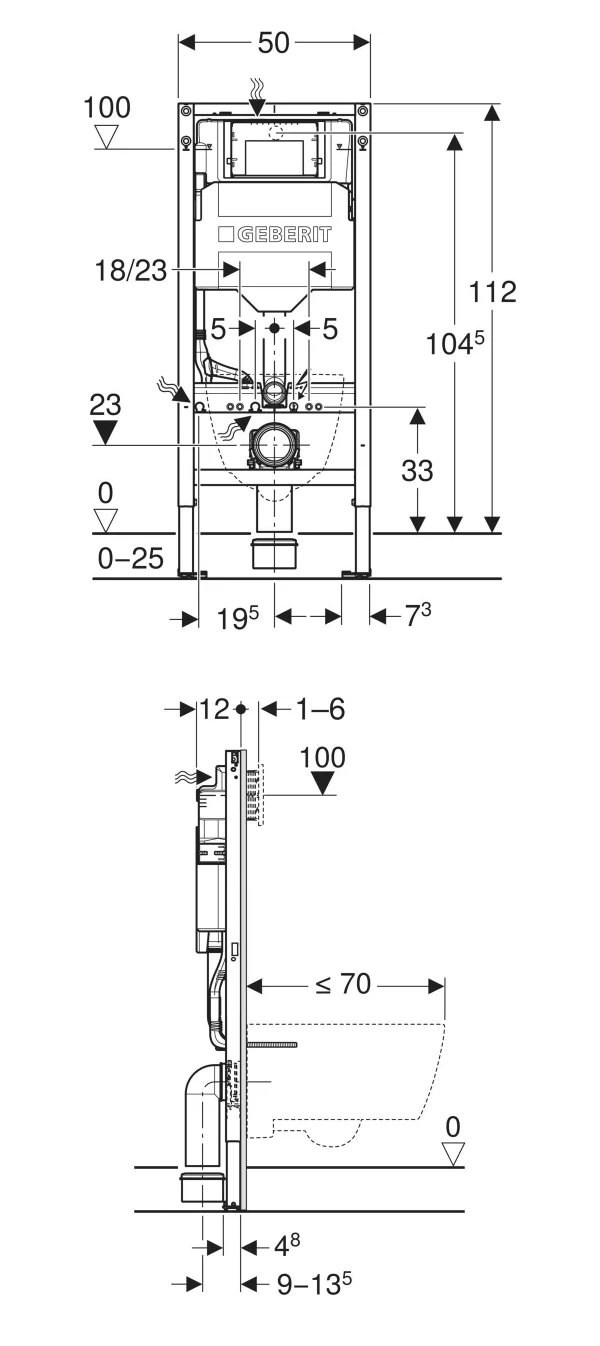

• Compatible with WC pans up to 700mm deep, ideal for futureproofing your bathroom
• Up to 10x better flush performance with TurboFlush-ready compatibility (when combined with a Geberit TurboFlush pan)
• Compatibility with new Geberit Sigma40 Flush Plates & Geberit DuoFresh

Key Upgrades - Installation:

• 40% faster installation than the previous model

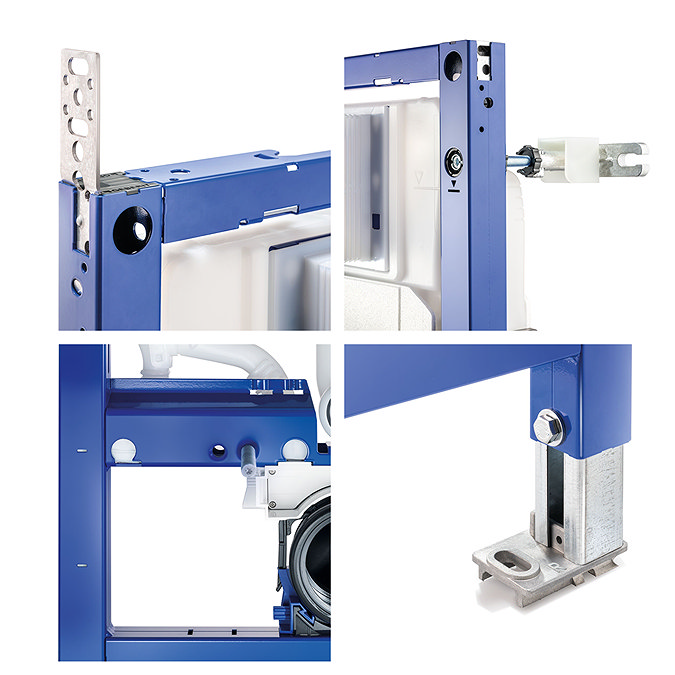

• Pull-Out Side Fastening Plate for faster vertical stud mounting
• Hexalobular Screws offer tool flexibility with better grip for power tools

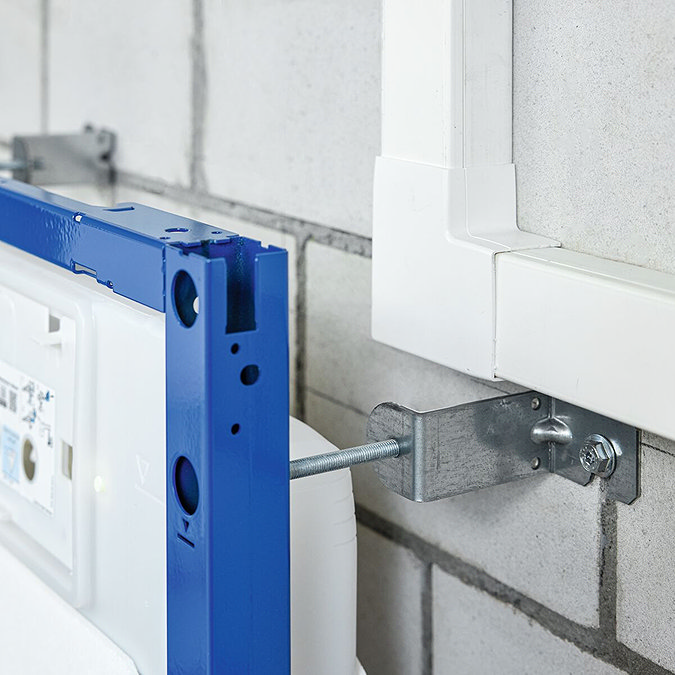

• Alternative Wall Anchor Positions accommodate tricky wall conditions like pipes or cables

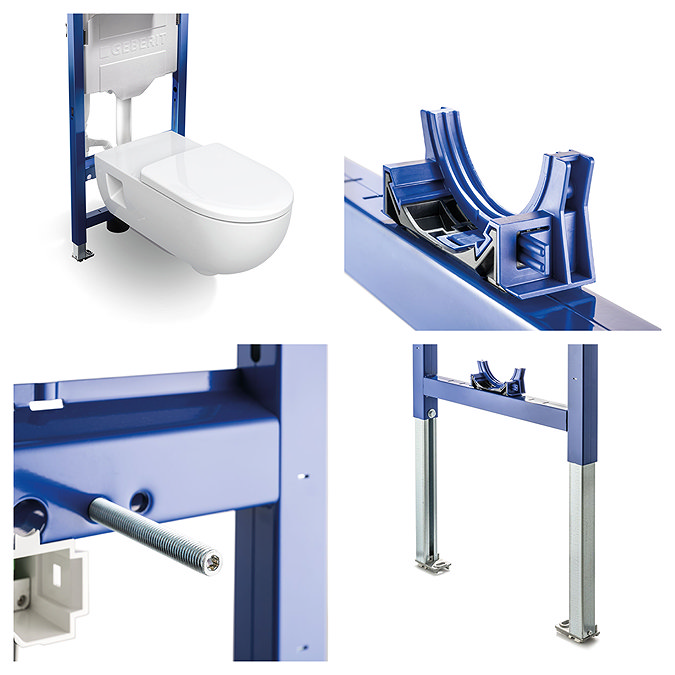

• Adjustable Pipe Bracket for stress-free connection bend installation
• Additional Laser Markings on the frame for accurate centre positioning of the threaded rods and connection bend
• Leg Support Adjustable to 25cm, ideal for modern, high floor constructions
• Long-term spare parts support (50 years)

Compatible With:

• Geberit Sigma Flush Plates & Geberit Pneumatic Flush Buttons
• Geberit AquaClean Shower Toilets
• Geberit DuoFresh

What’s Included:

• Water supply connection R 1/2" with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchors
• Connection set for WC, ø90mm
• PE-HD Connection bend ø90mm
• PE-HD adaptor socket ø90/110mm
• Fastening and protection materials
