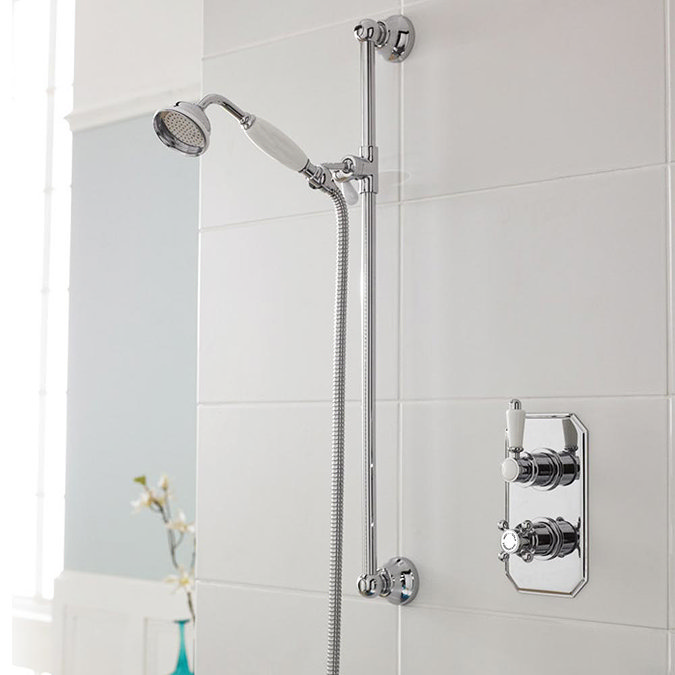

Nuie Edwardian Twin Concealed Thermostatic Shower Valve & Slider Rail Kit

Nuie Edwardian Twin Concealed Thermostatic Shower Valve & Slider Rail Kit

The Edwardian range of concealed thermostatic shower valves from Nuie brings substantial timeless elegance to the modern bathroom. This Concealed Thermostatic Twin Shower Valve offers thermostatic showering via two easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

Manufactured using high quality chrome and brass, our range of Edwardian shower valves will look outstanding in your new shower enclosure. Supplied with a slider rail kit, providing a flexible showering solution for all user large or small.

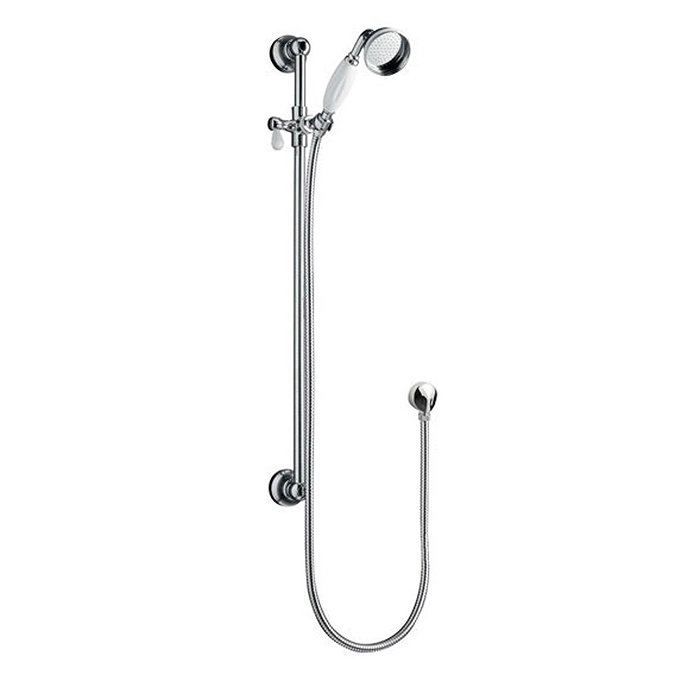

Slider Rail Kit Details

• Height - 690mm
• Style - Traditional
• Colour/Finish - Polished Chrome with White ceramic detailing
• Material - Brass Internals
• Slide Rail Kit & Shower
• Low pressure
• Adjustable Handset Position
• 1.5m hose
• Minimum 0.1 bar pressure required for best performance
• Manufactured to the Highest Standards
• Includes outlet elbow

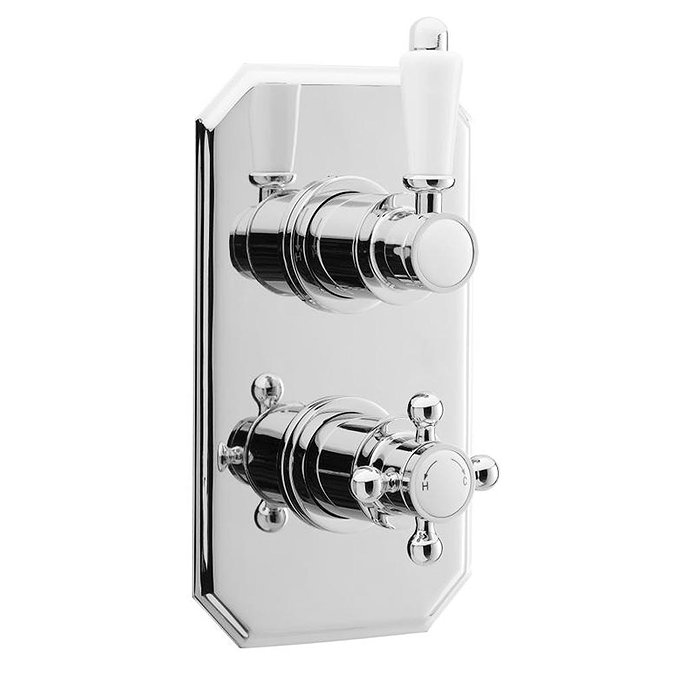

Shower Valve Details

• Height - 210mm
• Width - 120mm
• Depth - 123mm
• Type - Concealed Thermostatic Shower Valve
• Product Code - ITY316
• Colour/Finish - Polished Chrome
• Material - Manufactured from high quality brass & ABS
• Classic lever and cross-head handles
• Can be fitted vertically or horizontally
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe size: 15mm (1/2" BSP)
• Accurate flow control
• Thermostatic control to +/- 2°C- even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down within 1.5 seconds.
• The patented cartridge is highly resistant to calcium build up - even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates - even at low pressure.
• Our valves can deliver 5.5 litres per minute at 0.1 bar pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.
• WRAS Approved Product (2204707)

Guarantee - 5 Year

Flow Rates

0.1 Bar - 5.5 l/m
0.2 bar - 7.1 l/m
0.5 Bar - 14 l/m
1.0 Bar - 20 l/m
2.0 Bar - 29 l/m
3.0 Bar - 44 l/m

Package Contents

(1) Traditional Slide Rail Kit - Chrome
(1) Edwardian Twin Concealed Thermostatic Shower Valve - Chrome
