Cube 600 x 1100mm Heated Towel Rail (incl. Valves + Electric Heating Kit)

Cube 600 x 1100mm Heated Towel Rail (incl. Valves + Electric Heating Kit)

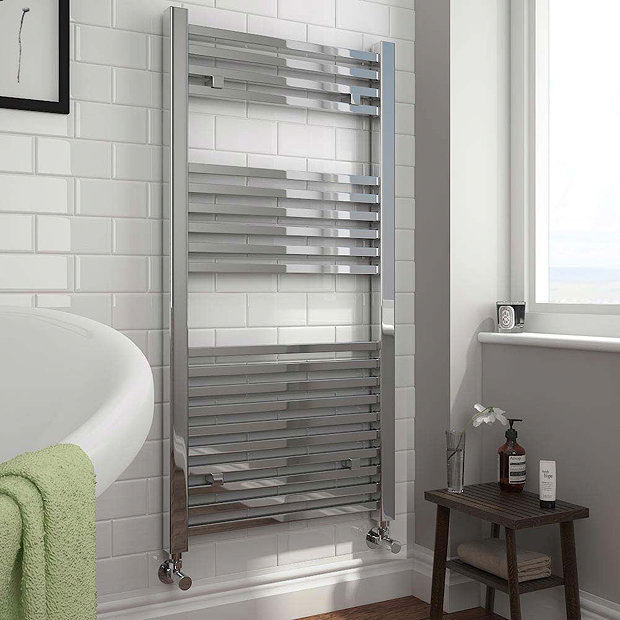

The Cube 600 x 1100mm heated towel rail is finished in chrome and features 22 horizontal square rails. Designed to be plumbed into the main central heating system and used as a radiator/towel rail. It also can be wired into the electric mains for summer towel warming.

**Supplied with Radiator Valves & Summer Electric Heating Kit.**

Towel Rail Details

• Height: 1100mm
• Width: 600mm
• Projection from Wall: 90-105mm
• Heat Output (BTU T30): 700
• Heat Output (Watt T30): 205W
• Heat Output (BTU T50): 1345
• Heat Output (Watt T50): 394W
• Colour/Finish: Polished Chrome
• Material: Durable Steel
• Quantity of Cross Rails: 22
• Tapping Centres (distance between pipe centres): 570mm
• Profile: Straight
• Features:
• Square rails
• Sparkling highly polished chrome finish
• Supplied complete with fixing kit, including plugs and vents
• Pressure tested to 10 bar / maximum working pressure 7 bar
• Standards: Tested and Certified BS EN 442-1 Standards, UKCA / CE Marked, ISO9001:2015 Registered Manufacturer

Radiator Valves Details

• Height: 82mm
• Depth: 51mm
• Diameter: 31mm
• Material: Brass
• Finish: Chrome
• Angled Valves
• Comes as a Pair
• Guarantee: 10 Year

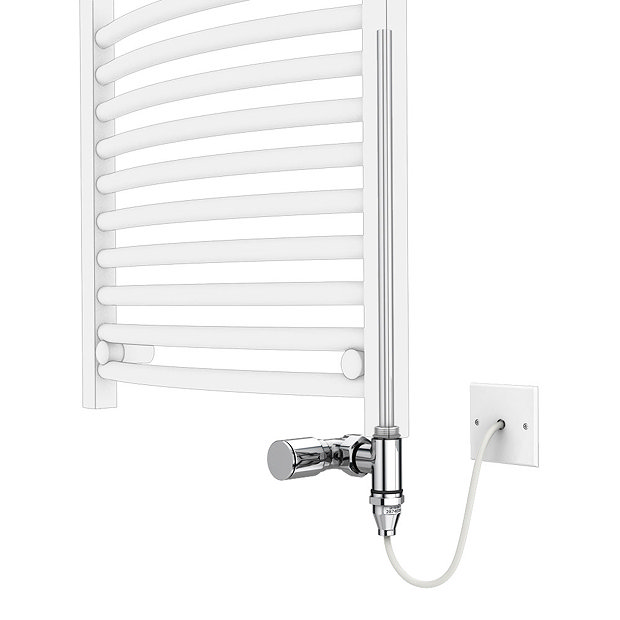

Heating Element Details

• Watt: 400W
• Length: 440mm
• Material: Stainless Steel
• Chrome T-Piece - Dual Fuel adapter for Designer Radiators + Heated Towel Rails
• Requires electrical connection by an Approved Electrician.
• Fits any 1/2" BSP wet system towel warmer to give heating on demand when the central heating system is off.
• On-off operation only

Dual Fuel Radiator: Connected to the central heating system, and also to the electric socket.

Pictures for illustrative purposes only

We recommend pipework is not installed until receipt of radiator or heated towel rail

Please Note: Requires electrical connection by an approved electrician.

*Fused spur sold separately

Comprises

(1) Cube Heated Towel Rail - Chrome (600 x 1100mm)
(1) Pair of Modern Angled Radiator Valves - Chrome
(1) 400W Electric Radiator Heating Element + Chrome T-Junction
