Cruze Round Modern Shower System with Handset, 4 Body Jets + 200mm Shower Head

Cruze Round Concealed Shower Valve Pack with 3 Outlets (Handset, 4 x Body Jets and Overhead Rainfall Shower Head) Chrome

The minimalist Cruze 3-way triple-function concealed thermostatic shower valve with a built-in diverter brings substantial elegance to the modern bathroom. This stylish concealed thermostatic shower valve offers thermostatic showering via two easy-to-operate controls. It features modern round lever handles and is designed to operate three outlets separately.

This Cruze round concealed thermostatic valve pack with three outlets will complement any modern bathroom suite. It offers thermostatic showering via two easy-to-operate controls and features modern round lever handles. The valve is designed to operate three outlets separately (handset, body jets, and overhead rainfall shower head).

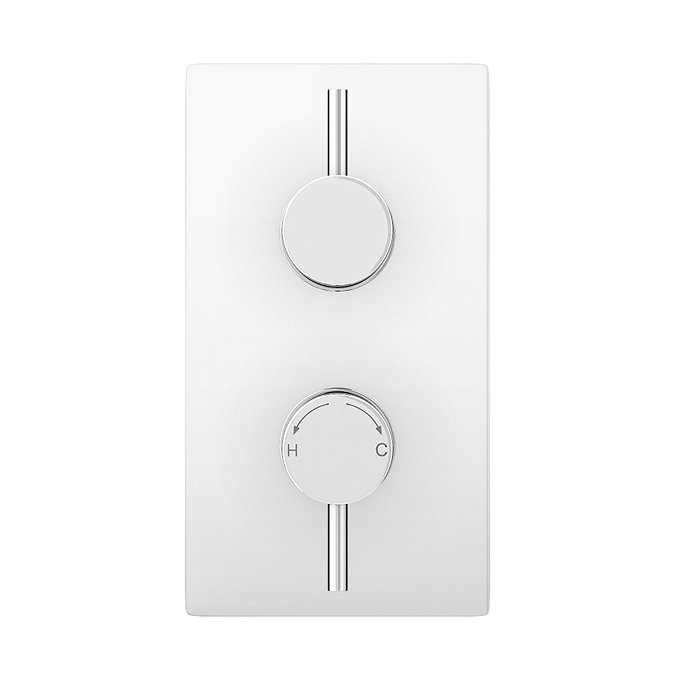

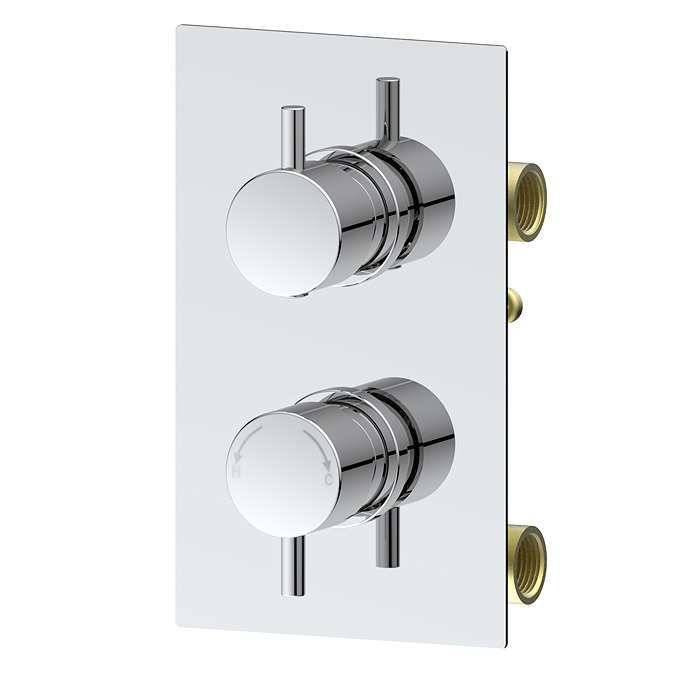

Shower Valve Details:

• High Quality Design
• Finish: Polished Chrome
• Material: Brass Internals
• Control: Thermostatically controlled
• Handles: Round

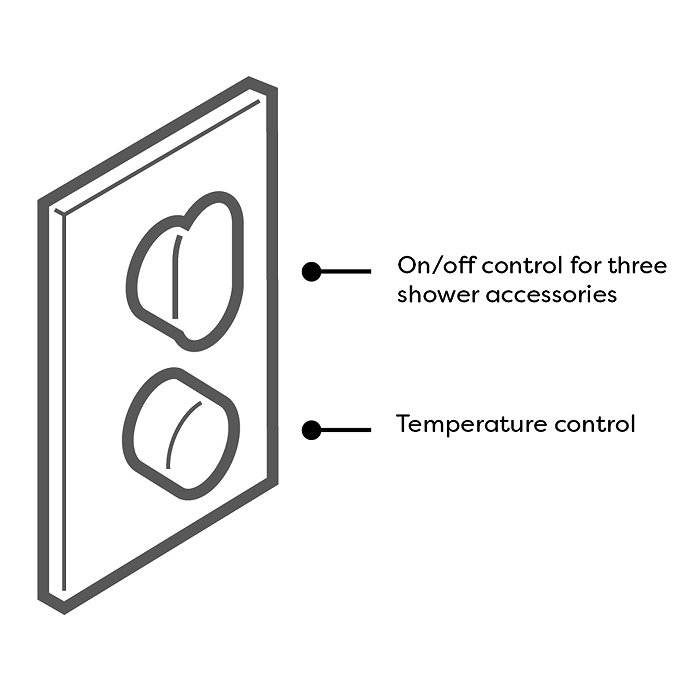

• Top Control: On/Off and diverter combined
• Bottom Control: Thermostat
• Faceplate: Rectangular
• Style: Modern
• Diverter: Built-in
• Water Pressure: 0.5 bar to 5 bar
• Operation: Operates three outlets separately
• Compatibility: Suitable for modern pressurised plumbing systems
• Hot Water Temperature: 55 to 85 degrees Celsius
• Note: The shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. If a pump is required, we recommend a universal or negative head pump.

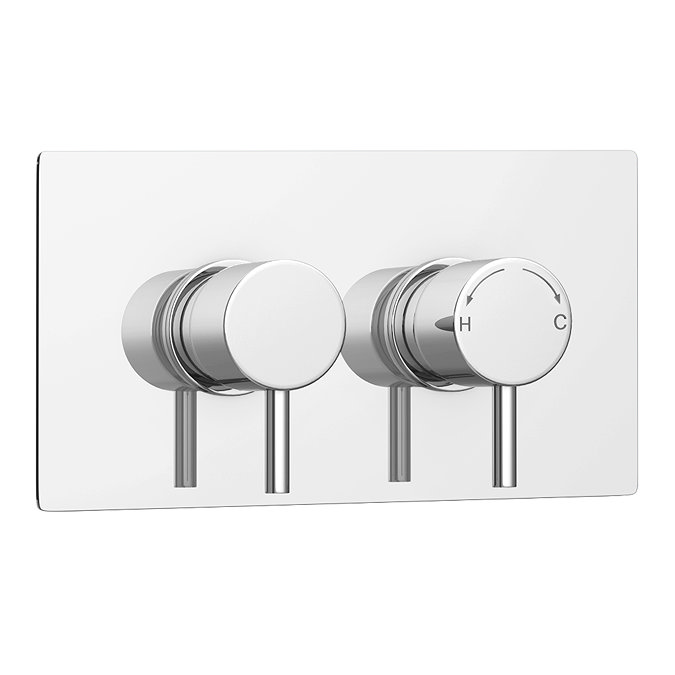

• Installation: Can be fitted vertically or horizontally

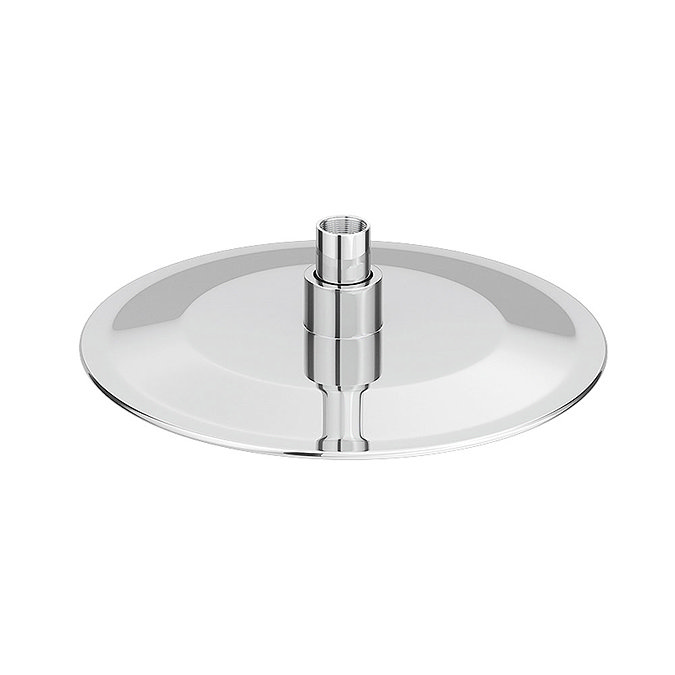

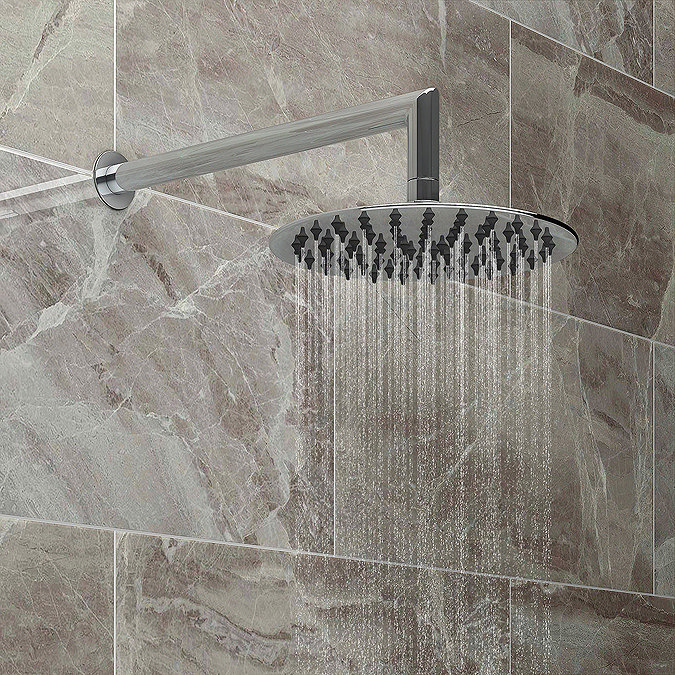

Shower Head and Arm Details:

• Style: Modern
• Shape: Round
• Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head Diameter: 200mm
• Shower Arm Length: 460mm
• Mounting: Wall-mounted with a 90-degree bend
• Pressure Requirement: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Features: Supplied with a swivel joint and rub-clean nozzles for easy maintenance

Wall Outlet Elbow with Shower Handset Details:

• Style: Contemporary shower styling
• Standards: Manufactured to the highest standards
• Hose: Rust-resistant
• Finish: Highly polished
• Handset Holder: Pencil style
• Nozzles: Silicone nozzles for easy removal of limescale deposits
• Shower Flex: 1.5m, Brass/Chrome plated
• Faceplate: Rectangular, Brass/Chrome plated
• Outlet Elbow: Concealed with parking bracket, Brass/Chrome plated
• Handset: ABS plastic/Chrome plated
• Compatibility: Suitable for all plumbing systems

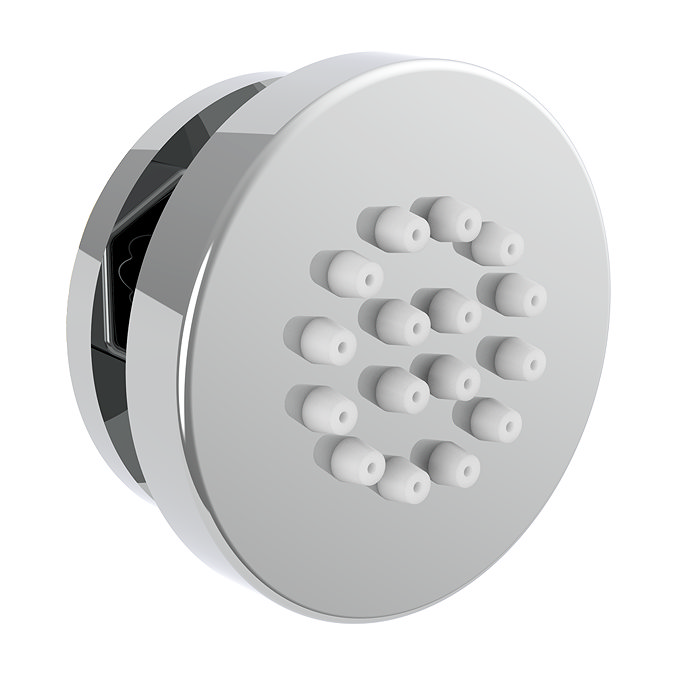

Slim Round Body Jet Details:

• Thread: Brass 1/2 inch BSP
• Finish: Polished Chrome
• Material: Brass
• Type: Slim Round Body Jet
• Features: Supplied with a swivel joint and silicone nozzles for easy removal of limescale deposits
• Compatibility: Suitable for all plumbing systems



Additional Information:
Guarantee: 5 years (1 year on serviceable parts such as internal components like check valves and cartridges)
All measurements are approximate. Product images are for illustrative purposes only and may differ from the actual product

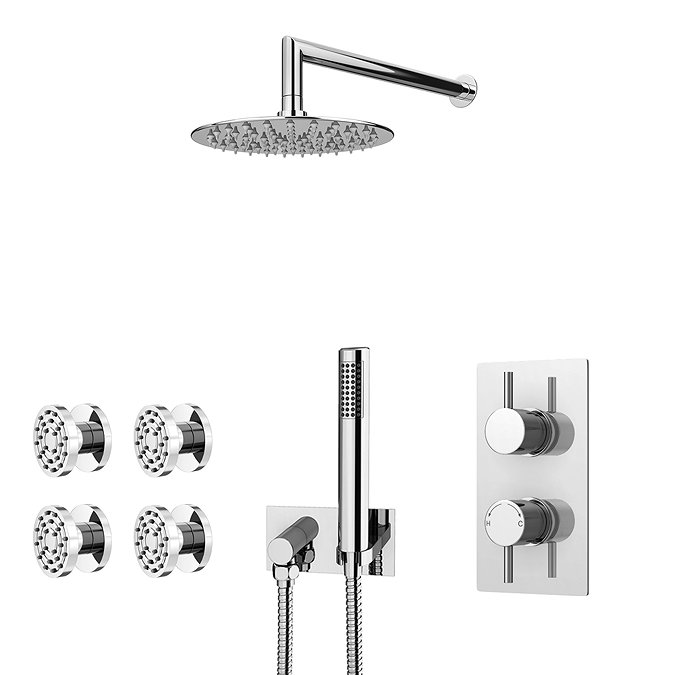

Comprises:

(1) Cruze Round Thermostatic 3-Way Concealed Shower Valve with Diverter
(1) Cruze Wall Mounted 90-Degree Bend Shower Arm (460mm)
(1) Cruze 200mm Ultra-Thin Round Shower Head with Swivel Joint
(1) Cruze Concealed Wall Outlet Elbow with Shower Handset
(4) Cruze Slim Round Body Jets

Gravity Fed Systems: If you live in an older property with a low-pressure gravity-fed system, this shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
